Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
10GB-6014NLT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,414	21.96	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.605 L x 0.547 W (15.37mm x 13.89mm)	0.255 (6.47mm)
10GB-6010T LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	2,849	22.37	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.605 L x 0.547 W (15.37mm x 13.89mm)	0.255 (6.47mm)

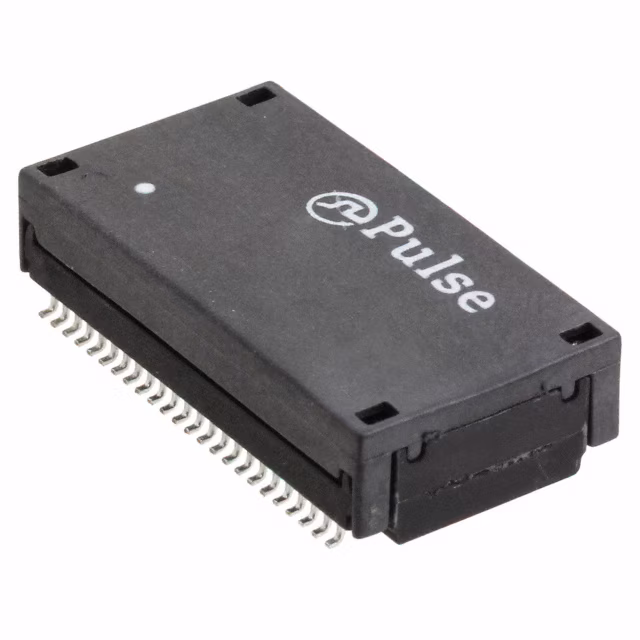

H5014FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,003	16.65	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.590 W (27.81mm x 14.99mm)	0.285 (7.24mm)

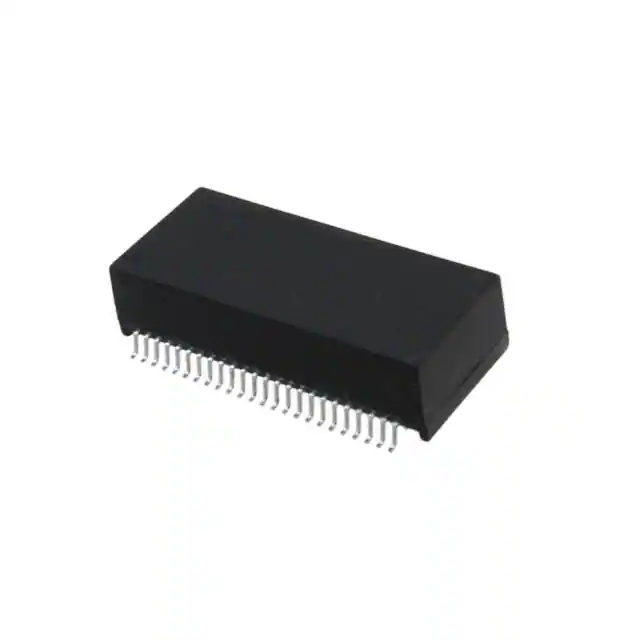

H6080NLT XFRMR MODUL GIGABT 2PORT POE 1:1 Pulse Electronics Network	1,468	16.65	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Star Magnetics™	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)
10GB-6013NLT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	1,333	23.06	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)

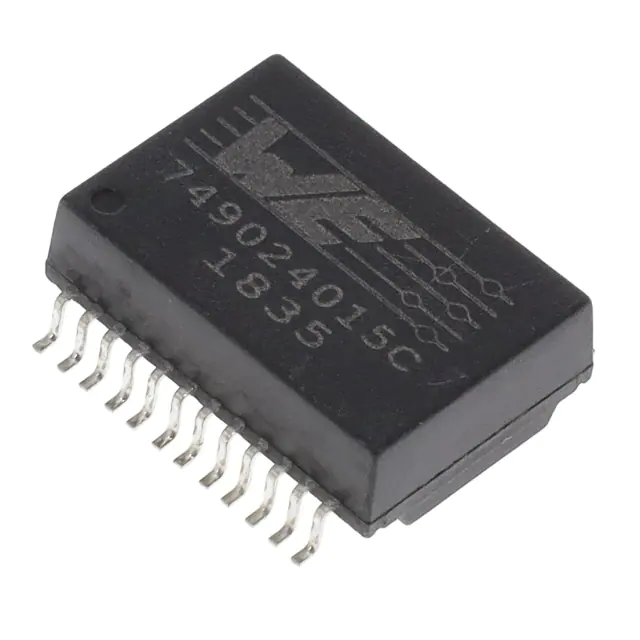

749024015C XFRMR LAN 1000 BASE-T 1:1 350UH Würth Elektronik	1,260	17.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	0.693 L x 0.577 W (17.60mm x 14.65mm)	0.346 (8.80mm)
10GB-6013T LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	1,304	23.51	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
10GB-6011T LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	1,737	23.90	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
HX5014NLT TRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics Network	3,775	18.05	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)
10GB-6011XNLT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	4,666	26.05	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
10GB-6011NLT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,006	23.69	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
1000B-5001FXT XFMR MODULE SNGL 1000BT SMT PBC iNRCORE, LLC	4,030	24.86	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
10GB-6012XNLT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	2,132	25.34	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.511 W (18.42mm x 12.98mm)	0.410 (10.41mm)
10GB-6013XNLT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	1,570	25.36	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
10GB-6012XT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	4,454	25.58	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.511 W (18.42mm x 12.98mm)	0.410 (10.41mm)
10GB-6013XT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	4,562	25.84	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
10GB-6011XT LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	4,447	26.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
R6001NL XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	3,549	19.63	- + RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	120µH	-	-	Surface Mount	0.700 L x 0.490 W (17.78mm x 12.45mm)	0.235 (5.97mm)

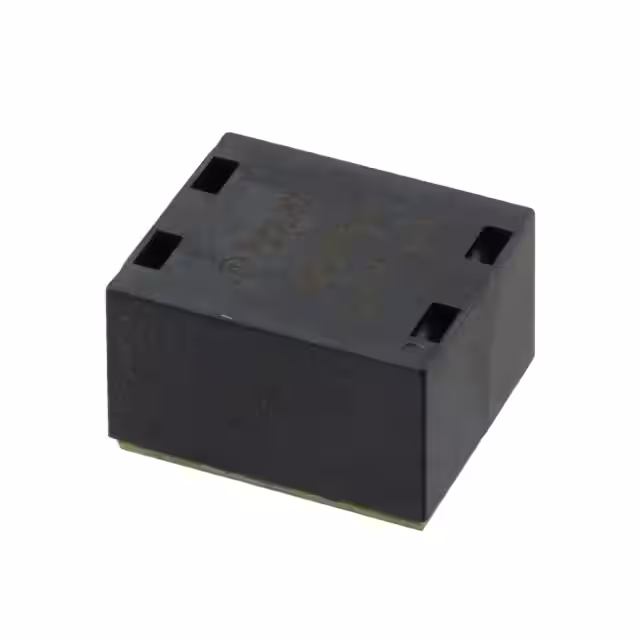

H6200NL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics Network	3,406	20.09	- + RFQ	Datasheet	Tray	-	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.580 L x 0.680 W (14.73mm x 17.27mm)	0.440 (11.18mm)

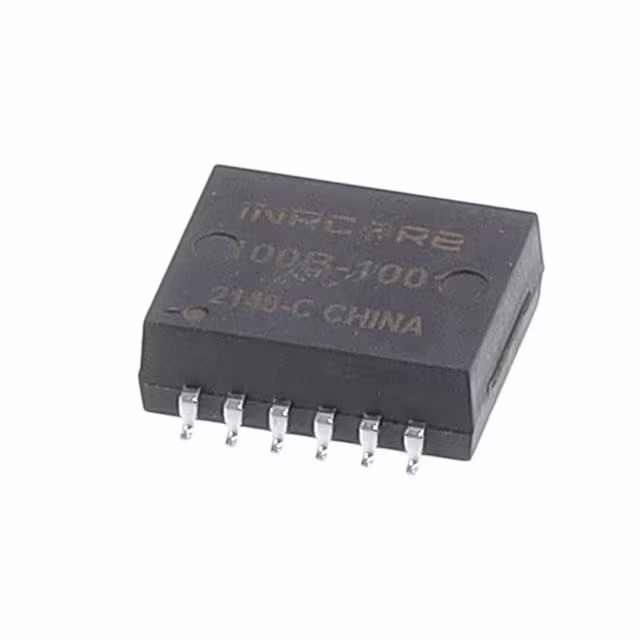

100B-1001 EXTMP XFMR 100BT SMG COM PBC iNRCORE, LLC	1,382	21.06	- + RFQ	Datasheet	Bulk	-	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	-	-
