Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
HM1238NL HM1238NL Pulse Electronics Network	5,244	2.57	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-

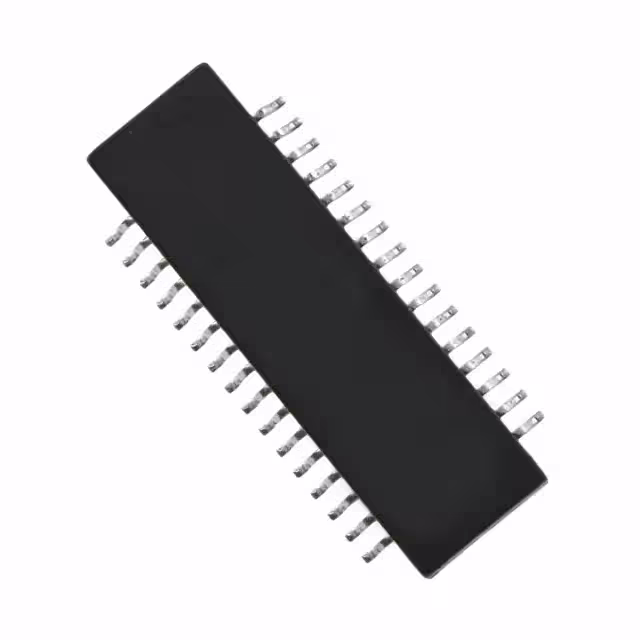

37536 TRANSF QUAD T1/E1 1:1.36/1 SMD Schott Corporation	5,463	2.70	- + RFQ	Datasheet	Cut Tape (CT)	-	Discontinued at Mosen	-	-	-	-	-	-	-

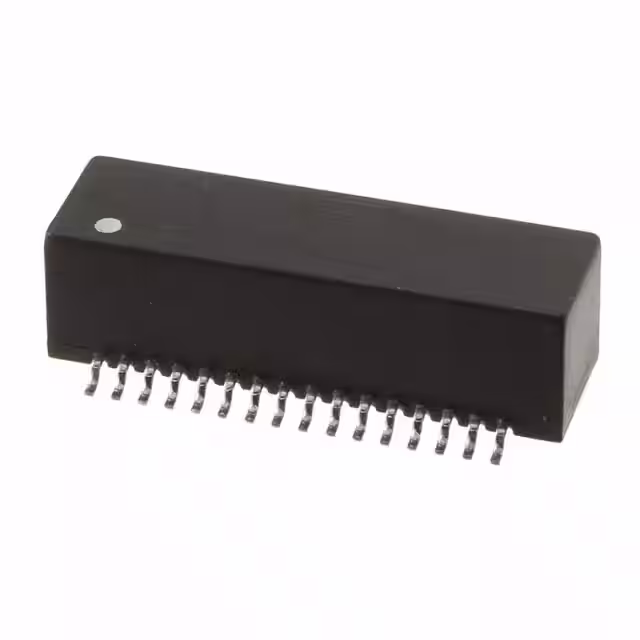

37534 TRANSF QUAD T1/E1 1:1.15CT SMD Schott Corporation	6,585	4.85	- + RFQ	Datasheet	Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Quad)	1.2mH	-	1:1.15CT	Surface Mount	1.000 L x 0.300 W (25.40mm x 7.62mm)	0.290 (7.37mm)
PA1528ANL PA1528ANL Pulse Electronics Power	6,535	2.71	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-
AEP-308SI EP5 POWER TRANSFORMER Allied Components International	7,921	2.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	2.4µH	-	1:1.27	Surface Mount	0.402 L x 0.394 W (10.20mm x 10.00mm)	0.425 (10.80mm)
AHSC-1623S 10/100 BASE-T SINGLE PORT LAN FI Allied Components International	5,002	3.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.248 (6.30mm)
AHSC-1607CI 10/100 BASE-T SINGLE PO+C5:C57RT Allied Components International	6,247	3.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.248 (6.30mm)
37543 TRANSF OCTAL T1/E1 1:1/1.26 SMD Schott Corporation	6,230	4.18	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Octal)	1.2mH	-	1:1/1.26 Transmitter, 1:2CT Receiver	Surface Mount	1.123 L x 0.488 W (28.52mm x 12.40mm)	0.230 (5.84mm)
37544 TRANSF OCTAL T1/E1 1:2CT SMD Schott Corporation	7,407	4.18	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Octal)	1.2mH	-	1:2CT Transmitter, 1CT:2 Receiver	Surface Mount	1.123 L x 0.488 W (28.52mm x 12.40mm)	0.230 (5.84mm)
37541 TRANSF OCTAL T1/E1 1:2CT SMD Schott Corporation	8,348	4.18	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	T1/E1 (Octal)	1.2mH	-	1:2CT Transmitter, 1:1CT Receiver	Surface Mount	1.123 L x 0.488 W (28.52mm x 12.40mm)	0.230 (5.84mm)
AHSC-4001I 10/100 BASE T QUAD PORT LAN FILT Allied Components International	9,519	4.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.106 L x 0.476 W (28.10mm x 12.10mm)	0.244 (6.20mm)
AT3974 EI19 Transformer Allied Components International	7,553	4.50	- + RFQ	Datasheet	Box	-	Active	LAN 10/100 Base-T	98µH	-	1:1, 1:2	Surface Mount	0.504 L x 0.268 W (12.80mm x 6.80mm)	0.244 (6.20mm)
HU4009NL HU4009NL Pulse Electronics Network	9,208	4.67	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-
AGSC-2408S 100/1000 BASE T GIGABIT SINGLE P Allied Components International	8,383	5.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.268 (6.80mm)
AGSC-2401I 100/1000 Base T Gigabit LAN Allied Components International	9,290	5.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)
AG2405CS 10/100/1000 Base-T Single Port Allied Components International	6,300	5.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Through Hole	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)
ATSC-1603I T1/CEPT/ISDN-PRI Module Allied Components International	8,630	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	1mH	-	1CT:2.4CT, 1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.91mm)	0.250 (6.35mm)
AGSC-2424PI 100/1000 BASE T LAN FILTER MODU Allied Components International	9,250	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)
AGSC-2401S 100/1000 BASE T GIGABIT SINGLE P Allied Components International	5,363	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)
AGSC-2407I 100/1000 BASE T SINGLE PORT LAN Allied Components International	9,066	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1	Surface Mount	0.600 L x 0.539 W (15.24mm x 13.70mm)	0.222 (5.65mm)
