Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
AGSC-2407S 100/1000 BASE T SINGLE PORT LAN Allied Components International	9,242	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1	Surface Mount	0.600 L x 0.539 W (15.24mm x 13.70mm)	0.222 (5.65mm)
AGSC-2401PS 10/100/1000 BASE-T GIGABIT SINGL Allied Components International	9,012	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.433 L x 0.280 W (11.00mm x 7.10mm)	0.157 (4.00mm)
AG2436CI 10/100/1000 Base T Single LAN Allied Components International	7,336	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

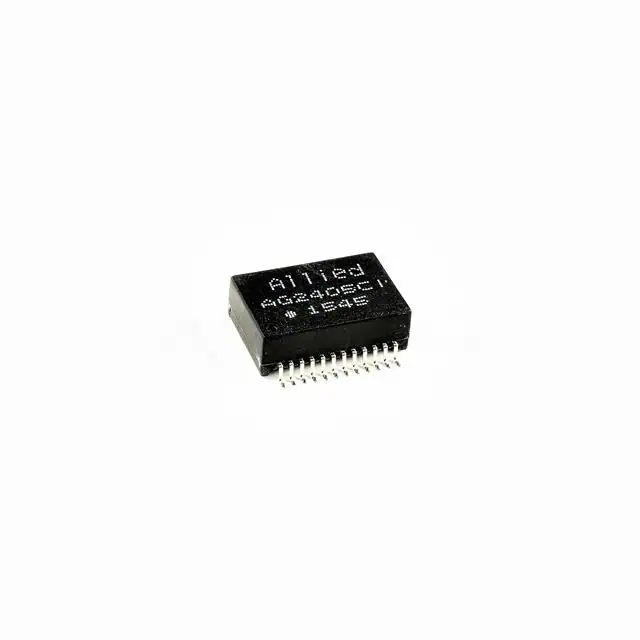

AG2405CI 100/1000 Base T Single Port LAN Allied Components International	9,641	5.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)
PE-64952NL PE-64952NL Pulse Electronics Network	6,200	5.71	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-

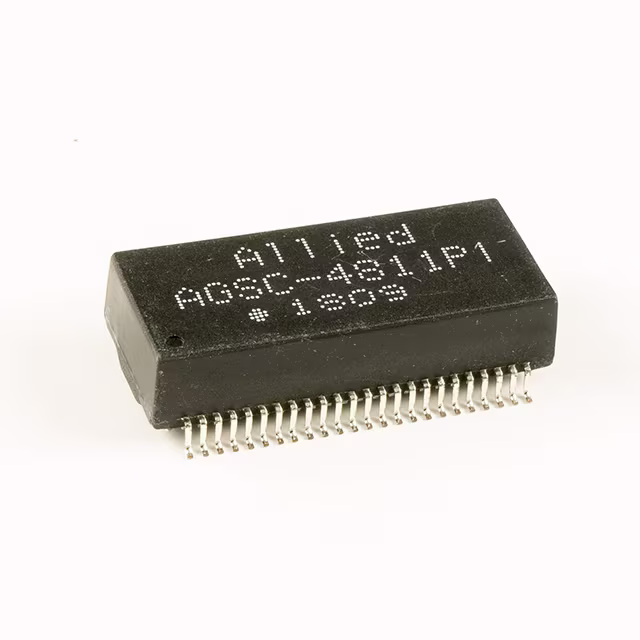

AGSC-4811PI 100/1000 BASE T GIGABIT POE PLUS Allied Components International	7,077	5.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)

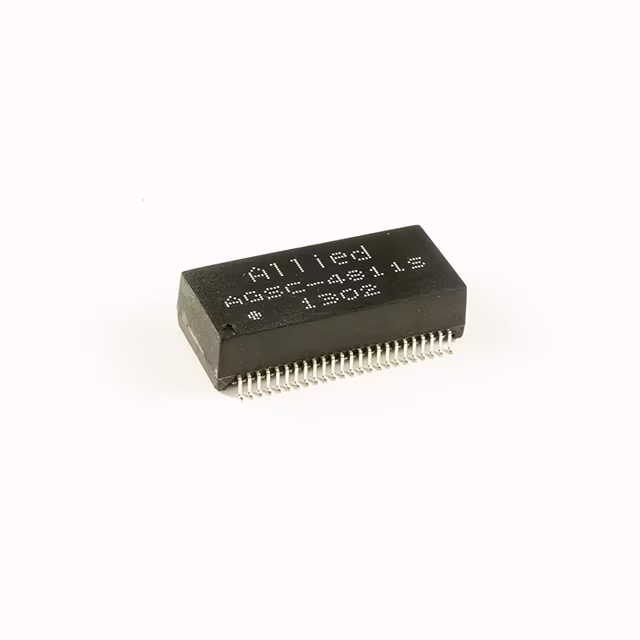

AGSC-4811S 100/1000 BASE-T GIGABIT DUAL POR Allied Components International	6,786	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)

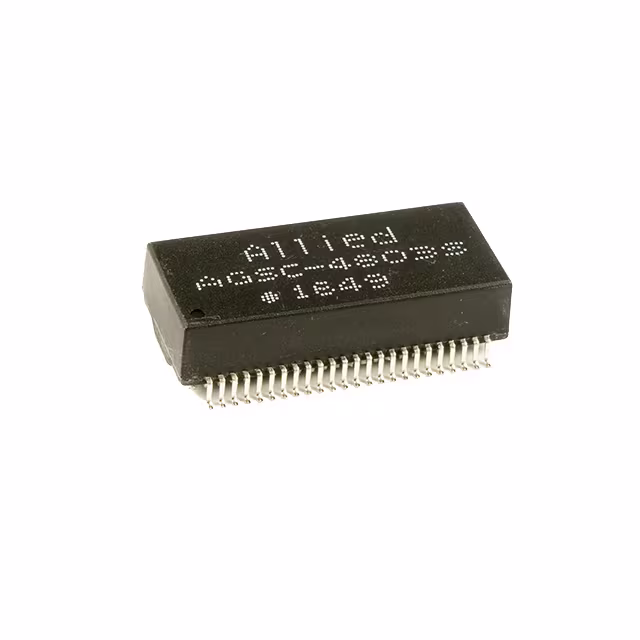

AGSC-4803S 100/1000 BASE T GIGABIT DUAL POR Allied Components International	7,698	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1CT:1	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)

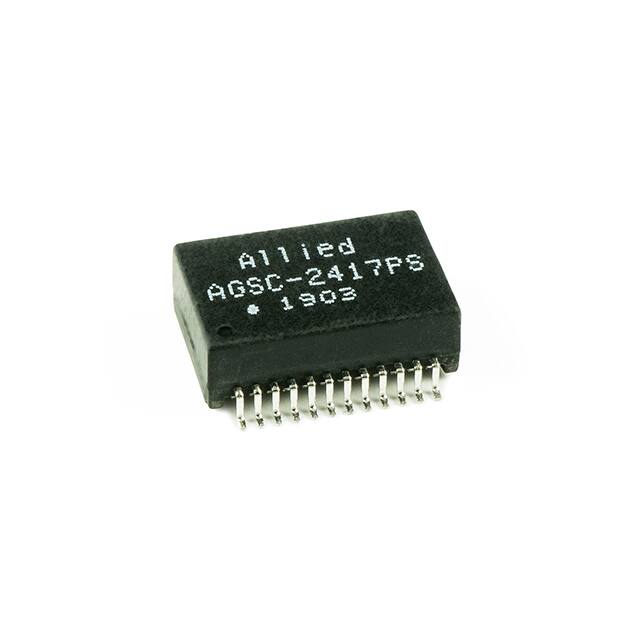

AGSC-2417PS 100/1000 BASE T GIGABIT SINGLE P Allied Components International	8,133	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

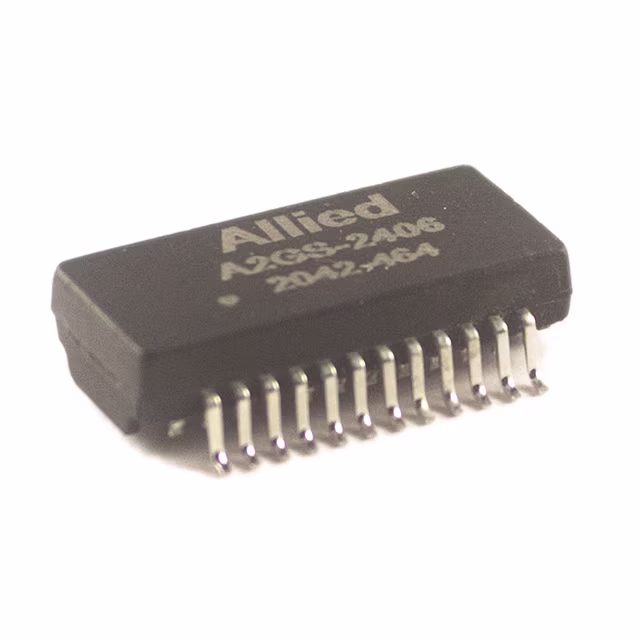

A2GS-2406 2.5G BASE-T Allied Components International	7,572	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5G Base-T	150µH	-	1CT:1CT	Surface Mount	0.606 L x 0.291 W (15.40mm x 7.40mm)	0.167 (4.25mm)

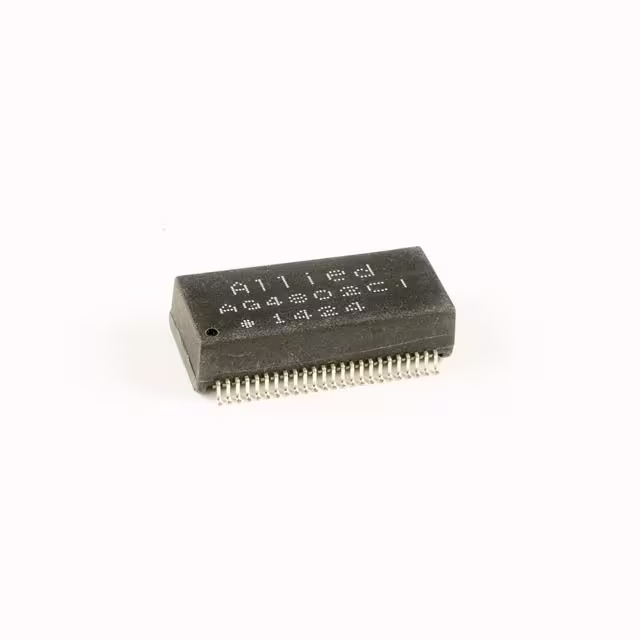

AG4802CI 10/100/1000 Base T Dual Port SMD Allied Components International	8,460	6.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)
H5015FNL H5015FNL Pulse Electronics Network	9,584	6.68	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-

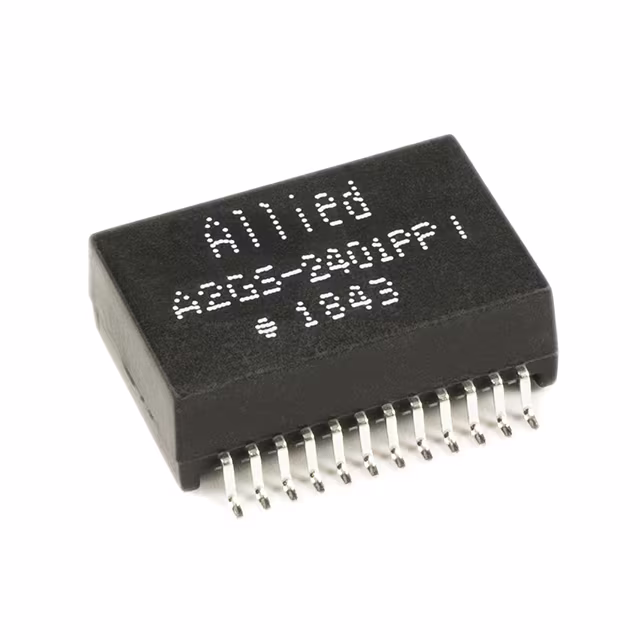

A2GS-2401PPI 2.5G SINGLE PORT POE++ Allied Components International	7,541	6.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	140µH	-	1CT:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)

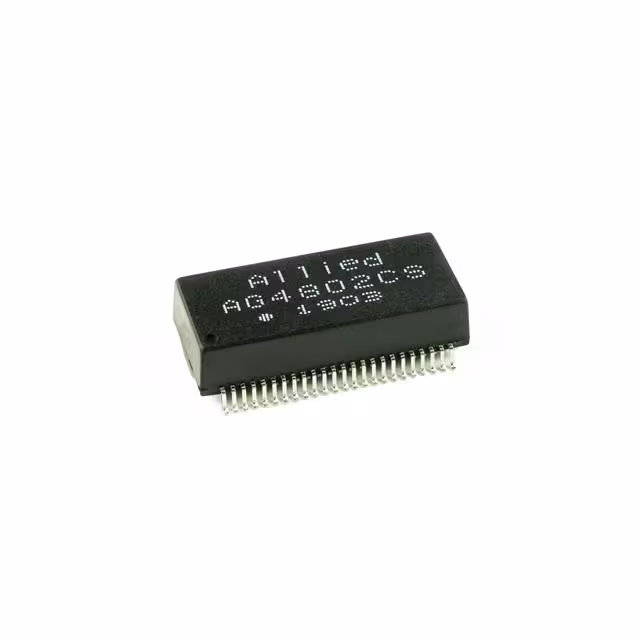

AG4802CS 10/100/1000 Base T Dual Port SMD Allied Components International	8,952	7.50	- + RFQ	Datasheet	Tray	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)

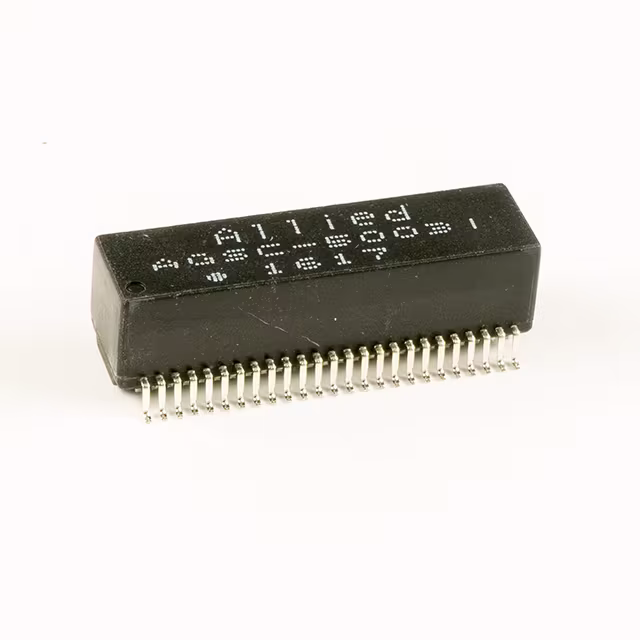

AGSC-5003I 10/100/1000 BASE T GIGABIT FILTE Allied Components International	7,138	7.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.300 W (27.94mm x 7.62mm)	0.340 (8.64mm)
HU4108NL HU4108NL Pulse Electronics Network	8,835	7.74	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-

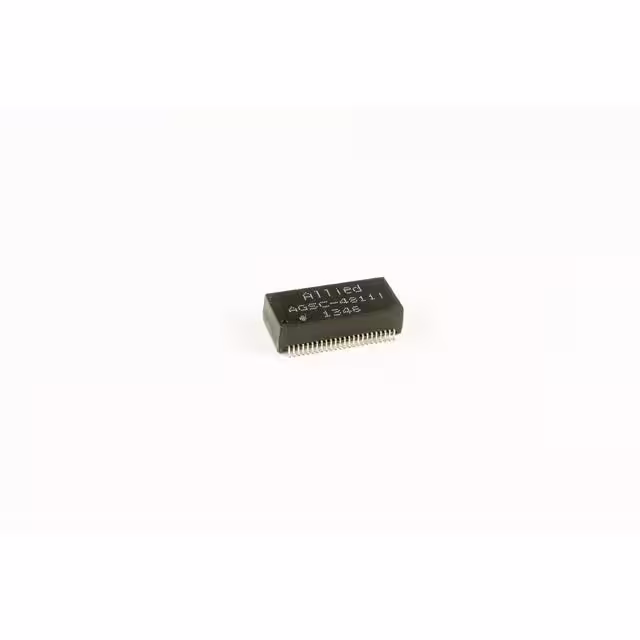

AGSC-4811I 100/1000 Base T Gigabit LAN XFMR Allied Components International	7,761	7.95	- + RFQ		Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)
TTER09-1204SG PWR XFMR,17:5:11:3:11:3,20UH Mentech Technology USA Inc.	7,301	9.06	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	20µH	-	17:5:11:3:11:3	Surface Mount	0.670 L x 0.512 W (17.00mm x 13.00mm)	0.433 (11.00mm)
TOEP13-0284SG POE TRANSFORMER Mentech Technology USA Inc.	8,222	9.31	- + RFQ		Tape & Reel (TR)	-	Active	Power over Ethernet (PoE)	240µH	-	-	-	0.705 L x 0.551 W (17.91mm x 14.00mm)	0.500 (12.70mm)
TTER09-0586S1 POWER TRANSFORMER Mentech Technology USA Inc.	9,209	9.52	- + RFQ		Tape & Reel (TR)	-	Active	-	1.5µH	-	4CT:1CT	Surface Mount	0.672 L x 0.394 W (17.07mm x 10.00mm)	0.244 (6.20mm)
