Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

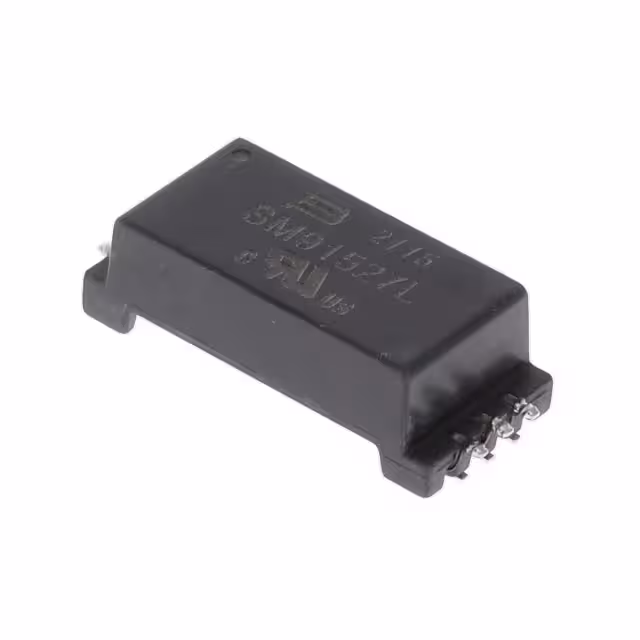

SM91527L BMS TRANSFORMER/CMC,6PIN,SGL,7.6 Bourns Inc.	8,399	5.27	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-

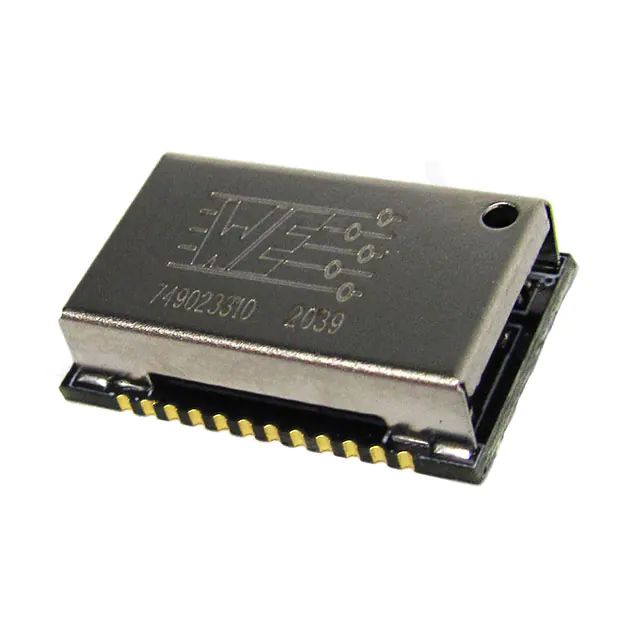

749023310 WE-LAN AQ 10/100/1000 BASE-T SMT Würth Elektronik	5,815	5.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	180µH	-	1:1	Surface Mount	0.650 L x 0.406 W (16.50mm x 10.30mm)	0.161 (4.10mm)
749012310 WE-LAN AQ 10/100 BASE-T SMT TRAN Würth Elektronik	8,877	5.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	150µH	-	1:1	Surface Mount	0.500 L x 0.341 W (12.70mm x 8.67mm)	0.157 (4.00mm)
PE-64936NL XFRMR T1/CEPT/ISDN-PRI 1CT:1 Pulse Electronics Network	6,940	5.28	- + RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

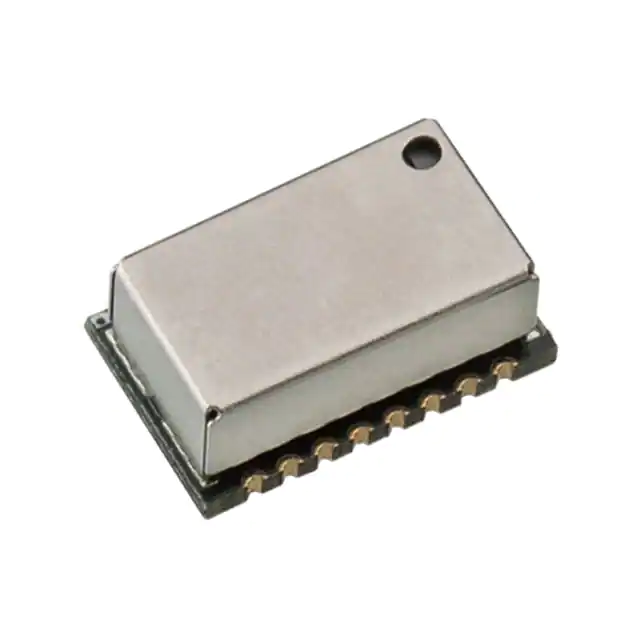

749013310 WE-LAN AQ 10/100 BASE-T SMT TRAN Würth Elektronik	8,072	5.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	180µH	-	1:1	Surface Mount	0.500 L x 0.341 W (12.70mm x 8.67mm)	0.157 (4.00mm)

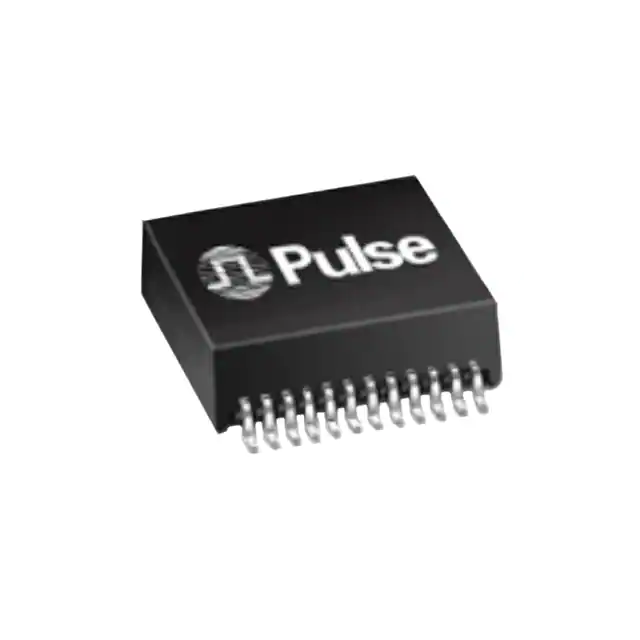

1000B-5002X XFMR MODULE SNGL 1GB SMT PBC iNRCORE, LLC	4,657	27.44	- + RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	-	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)

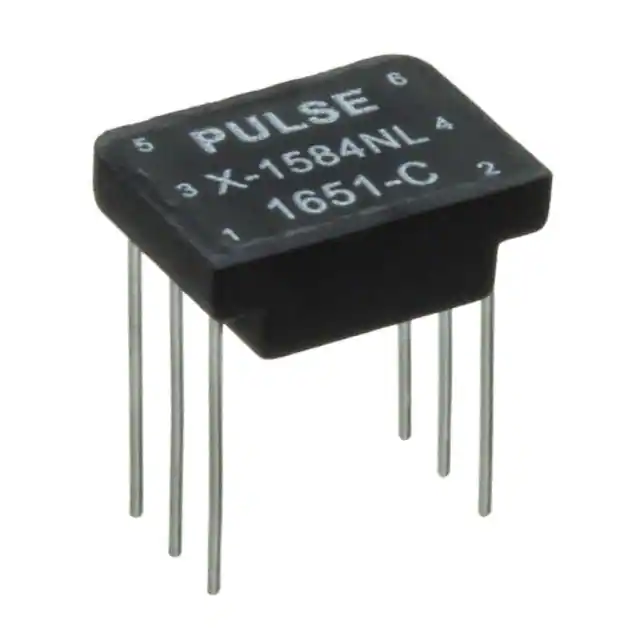

X-1584NL TRANSFORMER SINGLE 1553 iNRCORE, LLC	3,500	30.41	- + RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1.79CT	Through Hole	0.350 L x 0.500 W (8.89mm x 12.70mm)	0.172 (4.37mm)
T9021NLT XFRMR 4PORT 1:2.42 0.6MH SMD Pulse Electronics Network	2,529	31.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	T1/E1 (Quad)	600µH	-	1:2.42 Transmitter, 1:2.42 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.285 (7.24mm)
T-1250SCT XFMR DUAL 1250M BAUD iNRCORE, LLC	1,144	41.24	- + RFQ	Datasheet	Tube	Copperhead™	Active	-	-	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.180 (4.57mm)
RT11S16-RU DISCRETE PULSE LAN XFMR 10/100 Mag Layers	12,318	0.68	- + RFQ	Datasheet	Tape & Reel (TR)	Transformer	Active	10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
PE-64934NL XFRMR T1/CEPT/ISDN-PRI 1:1 Pulse Electronics Network	9,540	5.28	- + RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

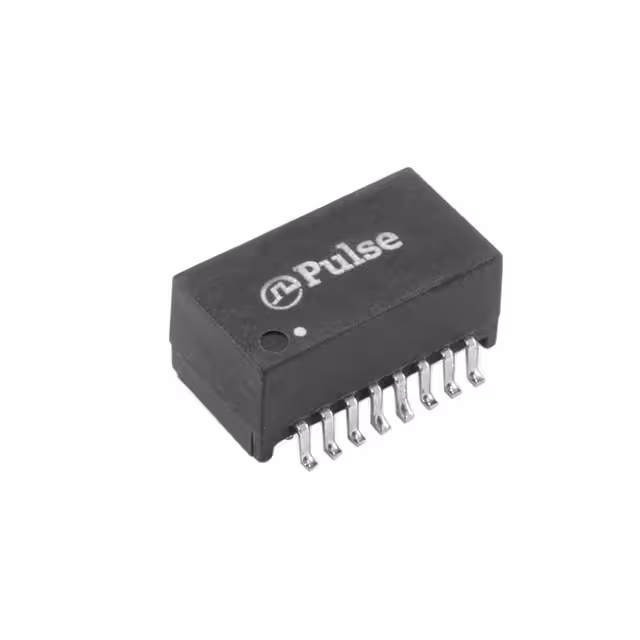

E2467NLT XFRMR ISOL 10BASE-T 1:2 SMD Pulse Electronics Network	8,484	5.32	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	20µH, 100µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)
749010310 PULSE XFMR 1:1 300UH Würth Elektronik	8,801	5.40	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.341 W (12.70mm x 8.66mm)	0.167 (4.25mm)
H1302FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	8,554	5.43	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

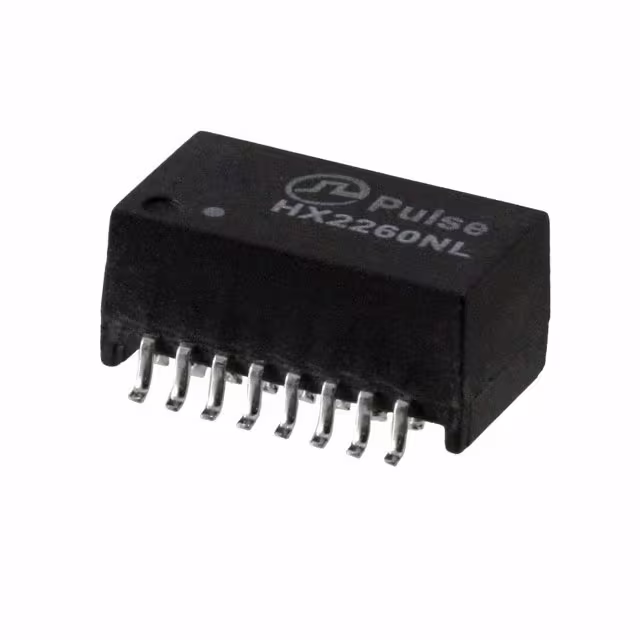

HX2260NLT XFRMR MODUL 1PORT POE 1:1 10/100 Pulse Electronics Network	6,367	5.49	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Star Magnetics™	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
PE-65861NLT XFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH Pulse Electronics Network	6,172	5.52	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)

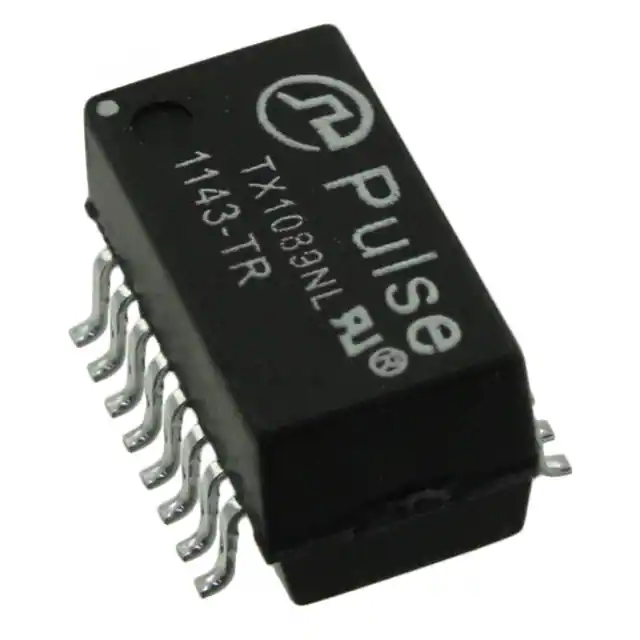

TX1089NL XFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH Pulse Electronics Network	6,761	5.52	- + RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:1CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1137NL TRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics Network	5,289	5.52	- + RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
H7018NLT MODULE 10GBASE-T 1.5KVRMS SMD Pulse Electronics Network	6,163	9.23	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.537 L x 0.480 W (13.64mm x 12.19mm)	0.250 (6.35mm)

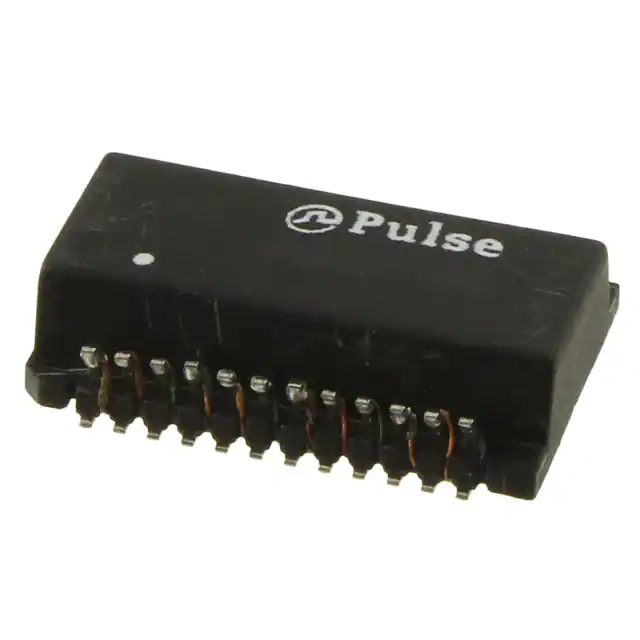

H5084FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	9,948	5.65	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.600 L x 0.385 W (15.24mm x 9.78mm)	0.163 (4.14mm)
