Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
T1146NL XFRMR 1:2/2.4 / 1:0.79/1 1/1MH Pulse Electronics Network	9,605	4.16	- + RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1mH, 1mH	-	1:2/2.4, 1:0.79/1	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
A6802NLT IC CHIP Pulse Electronics Network	9,001	4.18	- + RFQ		Bulk	-	Active	-	-	-	-	-	-	-
B78476A8250A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	6,190	4.18	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	1.090 L x 0.287 W (27.69mm x 7.29mm)	0.341 (8.66mm)

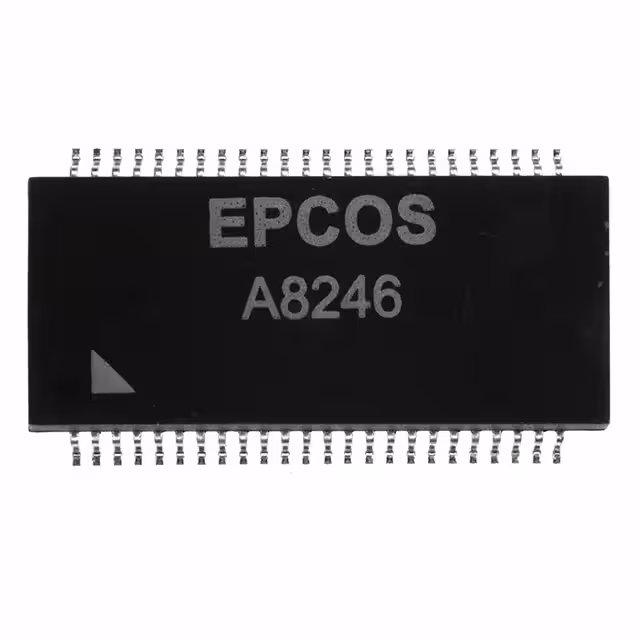

B78476A8246A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	8,948	4.18	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)
40SS1041AX HF MDL LAN 10/100BT QUAD SMD Pulse Electronics Network	6,169	4.18	- + RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-

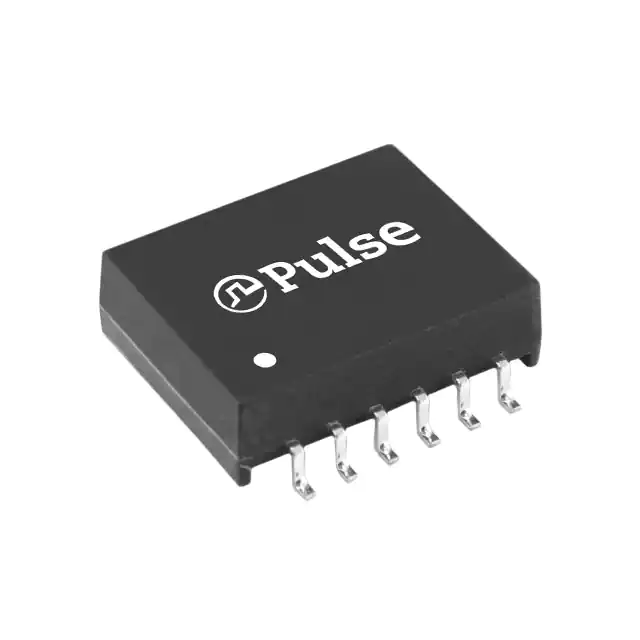

HX1112QNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	9,001	4.21	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.192 (4.88mm)

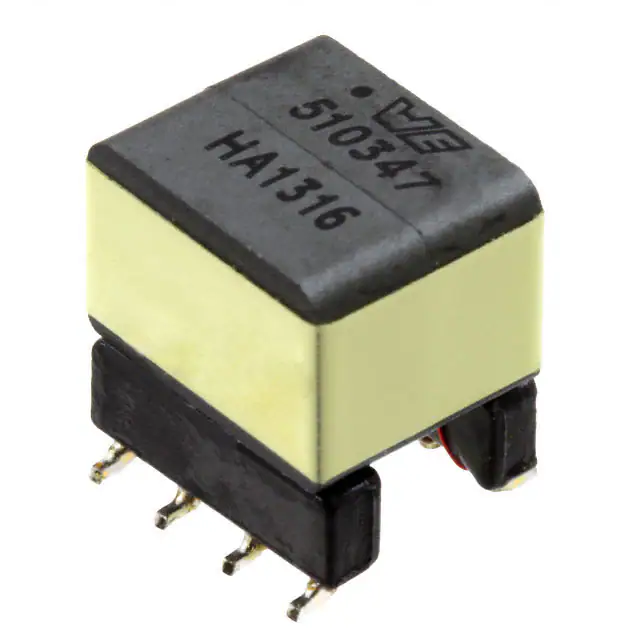

750510347 VDSL XFRM WE-DSL IKANOS BOARD Würth Elektronik	6,499	3.75	- + RFQ	Datasheet	Tape & Reel (TR)	MID-DSLIKN	Active	VDSL	400µH	-	1:1	Surface Mount	0.385 L x 0.360 W (9.78mm x 9.14mm)	0.430 (10.92mm)
PA3855.004NL PULSE XFMR 21UH Pulse Electronics Power	10,200	0.00	- + RFQ	Datasheet	Tray	-	Active	-	21µH	-	-	Surface Mount	0.571 L x 0.695 W (14.50mm x 17.65mm)	0.551 (14.00mm)
ALANL10001-FJC1ET 10/100/1000BASE-T LAN XFMR Abracon LLC	5,494	4.46	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
ALANL10001-FJ11ET 10/100/1000BASE-T LAN XFMR Abracon LLC	7,973	4.46	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
ALANL10001-FJ62ET 10/100/1000BASE-T LAN XFMR Abracon LLC	8,384	4.46	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
ALANL10001-FJ12ET 10/100/1000BASE-T LAN XFMR Abracon LLC	8,002	4.46	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
ALANS10001-4J11JT LAN SGL 1000B XFMR&CMC 24PIN Abracon LLC	9,858	4.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.225 (5.72mm)
ALANS100X1-1E82KT LAN SGL 100B XFMR&CMC&AUTO 12PIN Abracon LLC	5,285	4.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
PH9185.083NL TRANSFORMER 560UH 8:3 SMD Pulse Electronics Power	10,453	0.00	- + RFQ	Datasheet	Tray	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
H5143NLT MDL SIN 1GD 1:1 SMT TR Pulse Electronics Network	6,851	4.29	- + RFQ		Tape & Reel (TR)	-	Active	-	350µH	-	1:1	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.163 (4.14mm)
ALANL10001-FJ11DT 10/100/1000BASE-T LAN XFMR Abracon LLC	8,400	4.53	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
ALANL10001-FJ62DT 10/100/1000BASE-T LAN XFMR Abracon LLC	6,446	4.53	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
ALANL10001-FJ12DT 10/100/1000BASE-T LAN XFMR Abracon LLC	7,033	4.53	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
ALANL10001-FJC1DT 10/100/1000BASE-T LAN XFMR Abracon LLC	5,827	4.53	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780 L x 0.654 W (19.81mm x 16.62mm)	0.111 (2.83mm)
