Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
T1SB01RT MDL 10G 1 PORT 4PAIR POE 60W Pulse Electronics Network	7,651	3.82	- + RFQ		Tape & Reel (TR)	-	Active	LAN 10 Base-T	120µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
ALAN110001-4J11ET 10/100/1000BASE-T LAN XFMR POE Abracon LLC	6,135	5.14	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
ALAN110001-4J61ET 10/100/1000BASE-T LAN XFMR POE Abracon LLC	7,722	5.14	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
ALAN110001-4J41ET 10/100/1000BASE-T LAN XFMR POE Abracon LLC	5,207	5.14	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
AGS6014R MDL 2.5G DUAL PORT 4PAIR POE 60W Pulse Electronics Network	7,868	4.91	- + RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
AVP9014RS5M MDL 2.5G 1 PORT 4PAIR POE 90W Pulse Electronics Network	8,719	4.91	- + RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
ALAN110001-4J11JT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	9,993	6.80	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
ALAN110001-4J61JT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	8,808	6.80	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
ALAN110001-4J41JT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	9,061	6.80	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.610 L x 0.549 W (15.49mm x 13.95mm)	0.225 (5.72mm)
T5038NLT MODULE ISDN-S 1CT:2CT 30MH SMD Pulse Electronics Network	8,883	6.54	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	30mH	-	1CT:2CT, 1CT:2CT	Surface Mount	1.170 L x 0.500 W (29.72mm x 12.70mm)	0.326 (8.28mm)
T5037NLT MODULE ISDN-S 1CT:2.5CT 30MH SMD Pulse Electronics Network	7,231	6.54	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	30mH	-	1CT:2.5CT, 1CT:2.5CT	Surface Mount	1.170 L x 0.500 W (29.72mm x 12.70mm)	0.326 (8.28mm)
T1SB01LN2 MDL 10G SINGLE PORT N/A Pulse Electronics Network	9,505	3.82	- + RFQ		Tape & Reel (TR)	-	Active	LAN 10 Base-T	100µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
T1SB01RV MDL 10G 1 PORT 4PAIR POE 90W Pulse Electronics Network	5,833	3.82	- + RFQ		Tape & Reel (TR)	-	Active	LAN 10 Base-T	120µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
PA3855.002NL PULSE XFMR 48UH Pulse Electronics Power	13,483	0.00	- + RFQ	Datasheet	Tray	-	Active	-	48µH	-	-	Surface Mount	0.571 L x 0.695 W (14.50mm x 17.65mm)	0.551 (14.00mm)
PA3855.001NL PULSE XFMR 54UH Pulse Electronics Power	10,793	0.00	- + RFQ	Datasheet	Tray	-	Active	-	54µH	-	-	Surface Mount	0.571 L x 0.695 W (14.50mm x 17.65mm)	0.551 (14.00mm)
PA3855.005NL PULSE XFMR 21UH Pulse Electronics Power	13,516	0.00	- + RFQ	Datasheet	Tray	-	Active	-	21µH	-	-	Surface Mount	0.571 L x 0.695 W (14.50mm x 17.65mm)	0.551 (14.00mm)

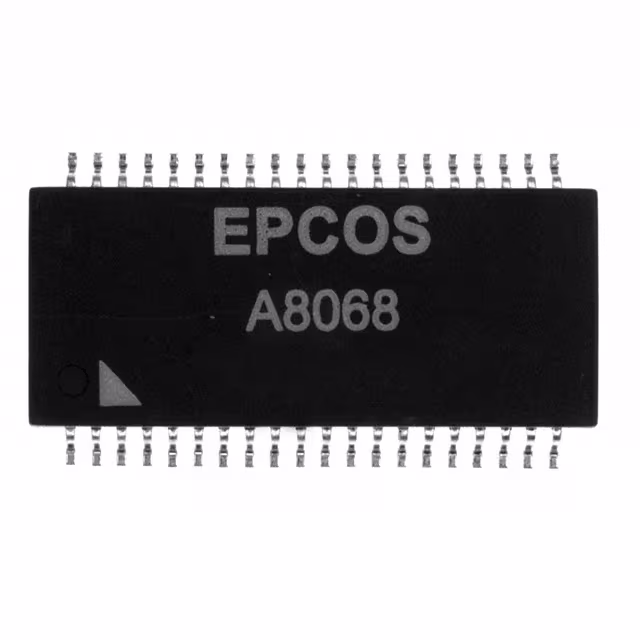

B78476A8068A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	5,653	3.91	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.106 L x 0.469 W (28.10mm x 11.90mm)	0.226 (5.75mm)
ISNF-0135-D101 ISNF PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	5,765	3.92	- + RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	1.1mH	150VµS	1:1:1	Surface Mount	0.512 L x 0.598 W (13.00mm x 15.20mm)	0.433 (11.00mm)

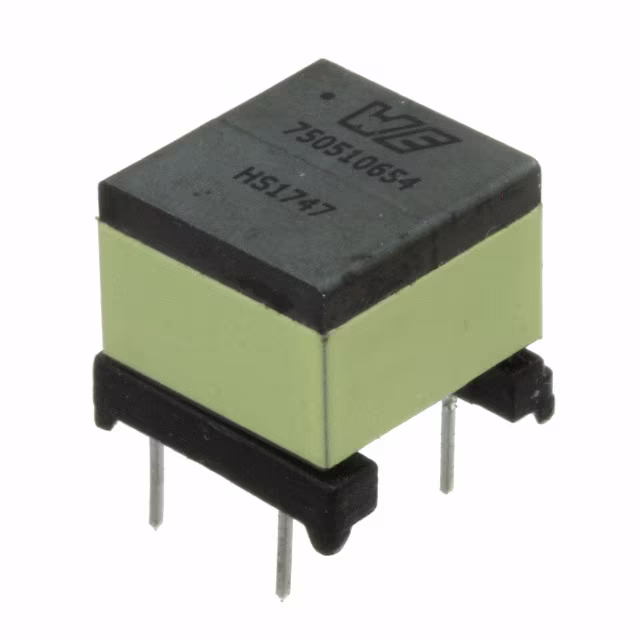

750510654 DIGITAL TRANSFORMER Würth Elektronik	6,868	3.02	- + RFQ	Datasheet	Tray	-	Active	-	1µH	-	1.5:1	Through Hole	0.550 L x 0.550 W (13.97mm x 13.97mm)	0.500 (12.70mm)
ALANS100X1-2F82KT LAN SGL 100B XFMR&CMC&AUTO 12PIN Abracon LLC	7,043	4.17	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
