Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA0751NL PULSE XFMR 110UH Pulse Electronics Power	9,533	3.58	- + RFQ	Datasheet	Tube	-	Active	-	110µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
S558-5500-16-F PULSE XFMR 1 CT:1CT TX/RX 350UH Bel Fuse Inc.	8,814	3.60	- + RFQ	Datasheet	Bulk	-	Active	-	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.522 L x 0.600 W (13.26mm x 15.24mm)	0.250 (6.35mm)
BM6154NL TRANSFORMER 8UH 1:1:1 3KV SMT Pulse Electronics Network	13,278	0.00	- + RFQ	Datasheet	Tube	-	Active	-	8µH	-	1:1:1	Surface Mount	0.417 L x 0.357 W (10.60mm x 9.08mm)	0.394 (10.00mm)
BM6155NL TRANSFORMER 28UH 1:1:1 3KV SMT Pulse Electronics Network	13,075	0.00	- + RFQ	Datasheet	Tube	-	Active	-	28µH	-	1:1:1	Surface Mount	0.417 L x 0.357 W (10.60mm x 9.08mm)	0.394 (10.00mm)
EX2024NLT XFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics Network	5,471	3.61	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	350µH	-	1CT:2.5CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.210 (5.33mm)
ALANL100X1-EFD2KT 10/100BASE-TX LAN XFMR Abracon LLC	5,912	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE62KT 10/100BASE-TX LAN XFMR Abracon LLC	8,149	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF12KT 10/100BASE-TX LAN XFMR Abracon LLC	8,008	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE12KT 10/100BASE-TX LAN XFMR Abracon LLC	5,596	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE10KT 10/100BASE-TX LAN XFMR Abracon LLC	8,954	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF62KT 10/100BASE-TX LAN XFMR Abracon LLC	7,982	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DED2KT 10/100BASE-TX LAN XFMR Abracon LLC	8,049	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF10KT 10/100BASE-TX LAN XFMR Abracon LLC	6,298	3.81	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
AVP2014RS1 MDL SMD 2.5G SINGLE PORT N/A Pulse Electronics Network	7,347	3.63	- + RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
S553-5999-D6-F PULSE TRANSFORMER 85UH Bel Fuse Inc.	7,839	3.64	- + RFQ	Datasheet	Bulk	-	Active	LAN	85µH	-	-	Surface Mount	1.100 L x 0.480 W (27.94mm x 12.19mm)	0.225 (5.72mm)
PA2047NL PULSE XFMR 7.2UH Pulse Electronics Power	7,157	3.64	- + RFQ	Datasheet	Tray	-	Active	-	7.2µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2047NLT PULSE XFMR 7.2UH Pulse Electronics Power	7,267	3.64	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	7.2µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
QVP9014RS4M MDL 5G 1 PORT POE 90W Pulse Electronics Network	9,864	3.66	- + RFQ		Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T	180µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)

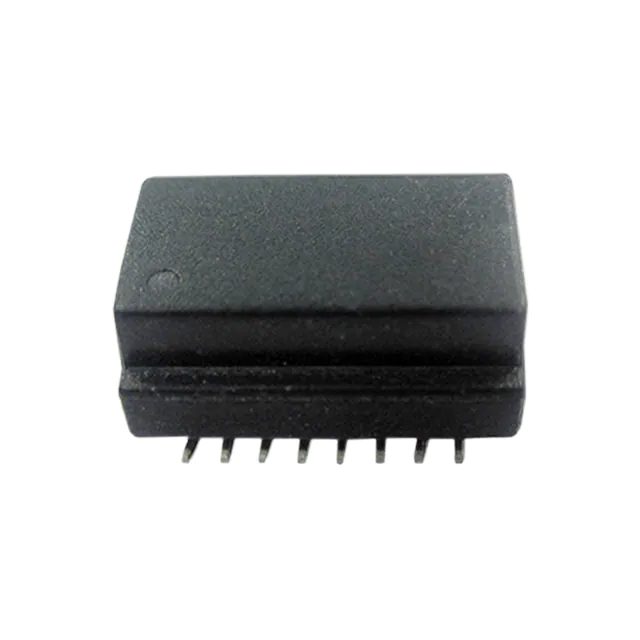

ALAN-2202 PULSE XFMR 1CT:1CT 350UH Abracon LLC	7,519	3.87	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)

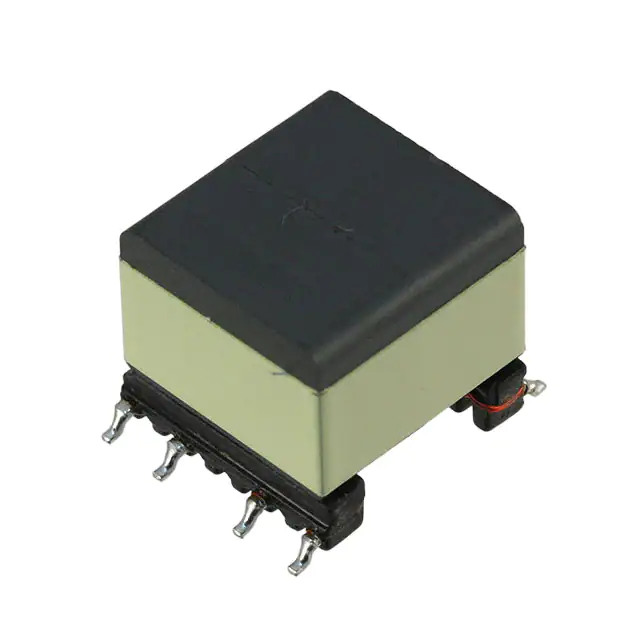

750052237 TRANSFORMER ADSL DANUBIUS SMD Würth Elektronik	8,003	3.29	- + RFQ	Datasheet	Tape & Reel (TR)	WE-DSL, MID-DSLITL	Active	ADSL	1.4mH	-	1:1, 4.2:1	Surface Mount	0.557 L x 0.676 W (13.97mm x 17.17mm)	0.500 (12.70mm)
