Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

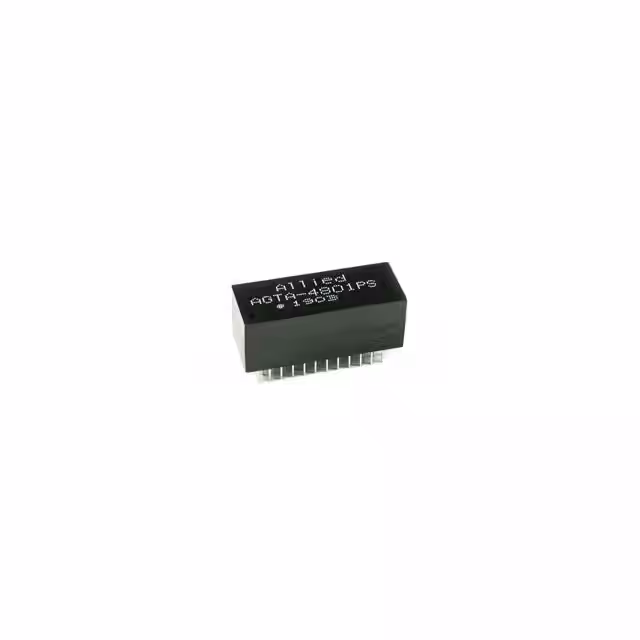

AGTA-4801PS 100/1000 BASE T GIG DUAL PORT Allied Components International	5,100	2.75	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1CT	Through Hole	1.122 L x 0.453 W (28.50mm x 11.50mm)	0.472 (12.00mm)

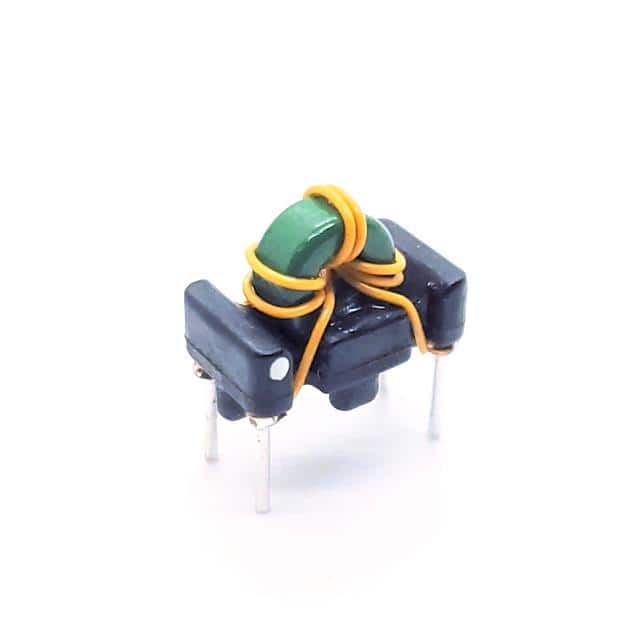

AIT-4463 16UH30% 4-PIN THRU-HOLE VERTMNT Allied Components International	7,507	2.75	- + RFQ	Datasheet	Box	-	Active	Gate Drive	16µH	-	1:1	Through Hole	0.492 L x 0.287 W (12.50mm x 7.30mm)	0.433 (11.00mm)
ITNF-0135-D101 ITNF PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	7,236	2.89	- + RFQ	Datasheet	Bulk	ITNF	Active	Isolation and Data Interface (Encapsulated)	1.1mH	-	1:1:1	Through Hole	0.512 L x 0.598 W (13.00mm x 15.20mm)	0.417 (10.60mm)

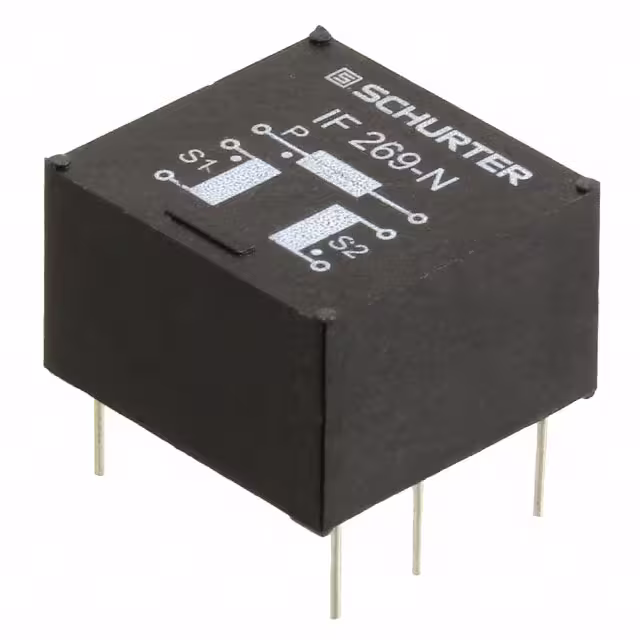

IF-18-0269-N II1 PULSE TRANSFORMER THT SPEZ SCHURTER Inc.	8,657	2.88	- + RFQ		Bulk	IF	Active	-	-	-	-	-	-	-
ITNB-0239-D202 ITNB PULSE TRANSFORMER THT 0.17A SCHURTER Inc.	6,580	3.00	- + RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	1.8mH	350VµS	2:1	Through Hole	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.535 (13.60mm)

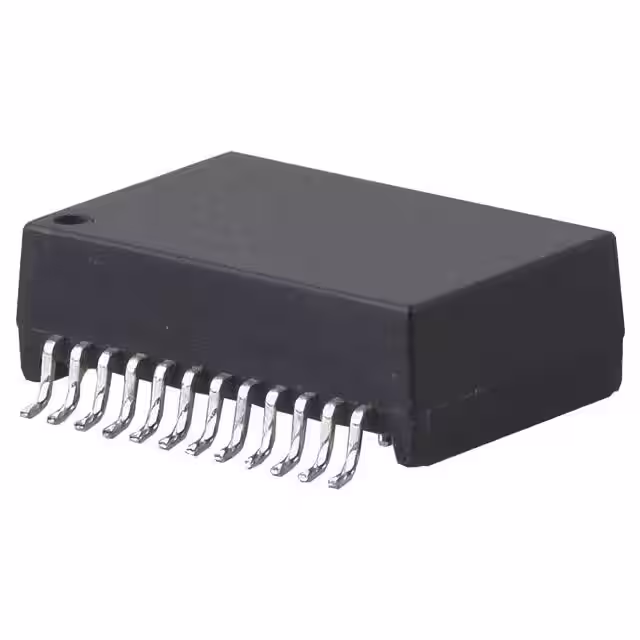

KTFZ-DGS2401CC7-XXX TRANSFORMER LAN SINGLE 24PIN POE KinnexA	6,928	2.94	- + RFQ	Datasheet	Bulk	KTFZ	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Surface Mount	0.717 L x 0.478 W (18.20mm x 12.15mm)	0.256 (6.50mm)
YLTH96404U PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	14,631	0.00	- + RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)
YLTH96402U PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	10,224	0.00	- + RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)
YLTH96402-1PU PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	12,225	0.00	- + RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)

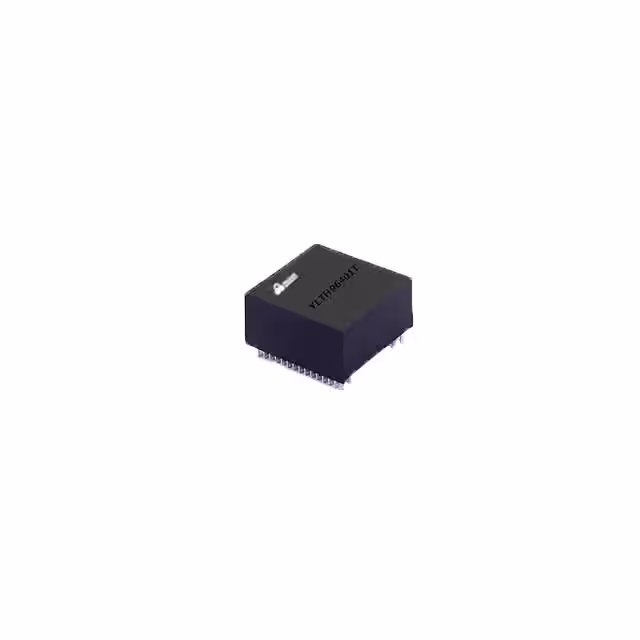

YLTH96401U PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	10,456	0.00	- + RFQ	Datasheet	Tube	YLTH9640	Active	LAN 2.5/5G Base-T	200µH	-	-	Through Hole	1.331 L x 1.150 W (33.80mm x 29.20mm)	0.677 (17.20mm)
ISNA-0239-D202 ISNA PULSE TRANSFORMER SMD 0.17A SCHURTER Inc.	9,900	3.11	- + RFQ	Datasheet	Tape & Reel (TR)	IS	Active	SCR and Triac Trigger (Encapsulated)	2.2mH	400VµS	1:1	Surface Mount	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.551 (14.00mm)
H1183NL H1183NL Pulse Electronics Network	10,606	0.00	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-
ITNF-0239-D202 ITNF PULSE TRANSFORMER THT 0.17A SCHURTER Inc.	8,719	3.22	- + RFQ	Datasheet	Bulk	ITNF	Active	Isolation and Data Interface (Encapsulated)	1.6mH	-	1:1:1	Through Hole	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.535 (13.60mm)
ISNB-0239-D202 ISNB PULSE TRANSFORMER SMD 0.17A SCHURTER Inc.	8,893	3.22	- + RFQ	Datasheet	Tape & Reel (TR)	IS	Active	SCR and Triac Trigger (Encapsulated)	1.8mH	350VµS	2:1	Surface Mount	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.551 (14.00mm)
ITRA-0235-D103 ITRA PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	8,307	3.22	- + RFQ	Datasheet	Bulk	ITRA	Active	Isolation and Data Interface (Encapsulated)	2.8mH	-	1:1	Through Hole	0.512 L x 0.598 W (13.00mm x 15.20mm)	0.417 (10.60mm)
ITRF-0235-D101 ITRF PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	9,860	3.32	- + RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	1.1mH	150VµS	1:1:1	Through Hole	0.512 L x 0.598 W (13.00mm x 15.20mm)	0.417 (10.60mm)

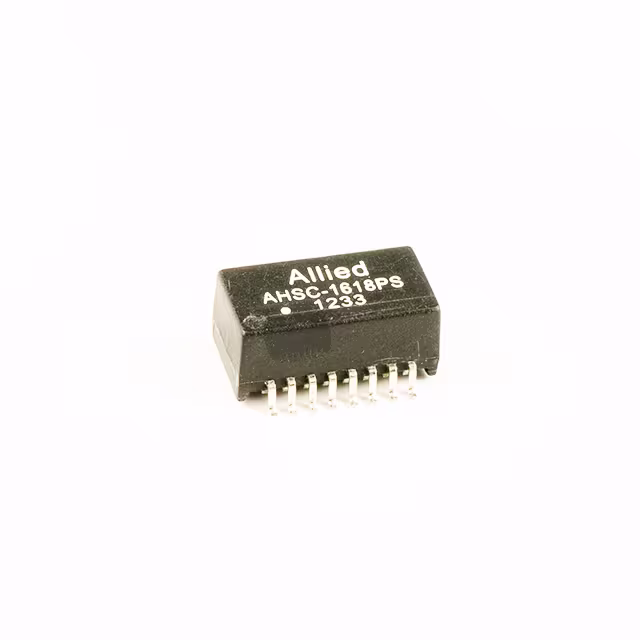

AHSC-1618PS 10/100 BASE T SINGLE PORT POE LA Allied Components International	9,378	3.25	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.514 L x 0.272 W (13.05mm x 6.90mm)	0.248 (6.30mm)
ITRA-0239-D502 ITRA PULSE TRANSFORMER THT 0.5A SCHURTER Inc.	7,308	3.39	- + RFQ	Datasheet	Bulk	ITRA	Active	Isolation and Data Interface (Encapsulated)	2.2mH	-	1:1	Through Hole	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.535 (13.60mm)
ISNF-0239-D202 ISNF PULSE TRANSFORMER SMD 0.17A SCHURTER Inc.	8,410	3.44	- + RFQ	Datasheet	Tape & Reel (TR)	IS	Active	SCR and Triac Trigger (Encapsulated)	1.6mH	350VµS	1:1:1	Surface Mount	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.551 (14.00mm)

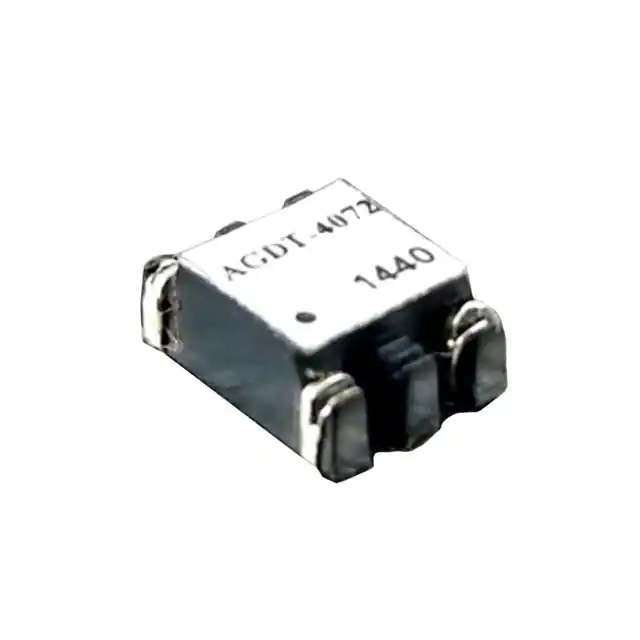

AGDT-4072 785UH MIN GATE DRIVE 6-PIN SMD Allied Components International	5,127	3.50	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Gate Drive	785µH	-	1:1	Surface Mount	0.291 L x 0.231 W (7.40mm x 5.86mm)	0.157 (4.00mm)
