Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
CTLFSPF-002 SINGLE PORT-10/100 BASE-T Central Technologies	9,215	4.72	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFSPF	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.006 L x 0.390 W (25.55mm x 9.90mm)	0.280 (7.10mm)
CTLFPP10GF-001 LAN FILTER-10 GIGABIT ETHERNET Central Technologies	9,784	4.72	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP10GF	Active	LAN 10G Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.537 L x 0.470 W (13.65mm x 11.95mm)	0.246 (6.25mm)

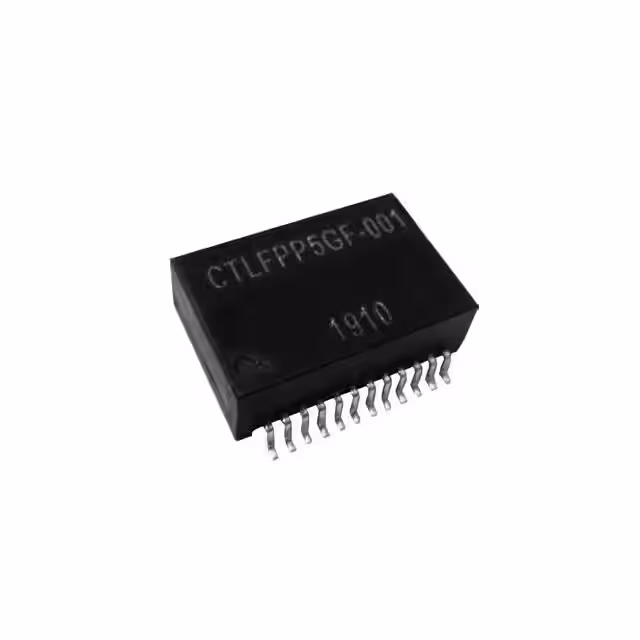

CTLFPP5GF-001 LAN FILTER-5 GIGABIT ETHERNET Central Technologies	6,274	4.72	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP5GF	Active	LAN 5G Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)

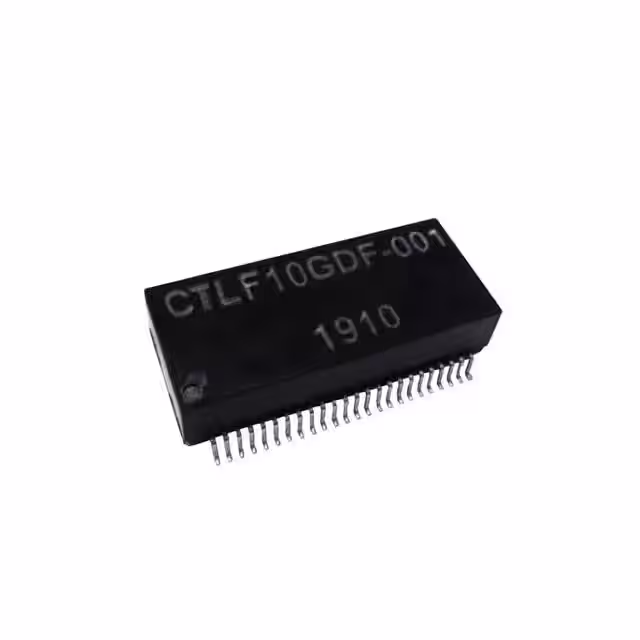

CTLF10GDF-001 LAN FILTER-10 GIGABIT ETHERNET Central Technologies	7,019	4.72	- + RFQ	Datasheet	Tape & Reel (TR)	CTLF10GDF	Active	LAN 10G Base-T	120µH	-	1:1CT	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)

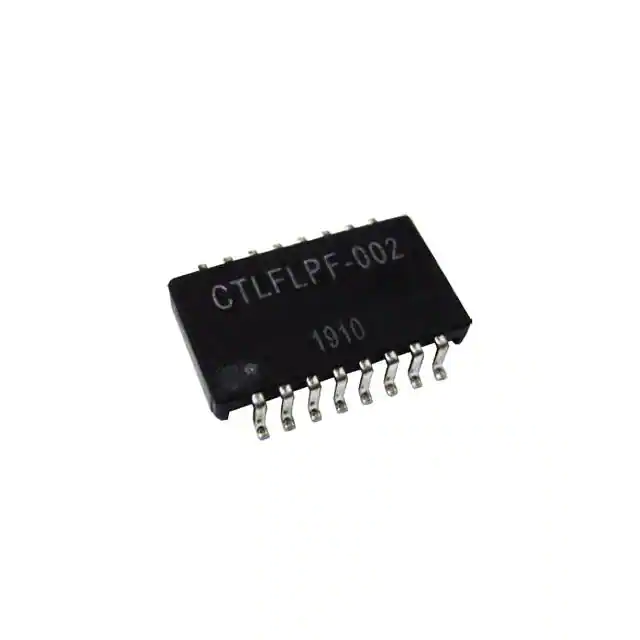

CTLFLPF-002 LAN FILTER - 10/100 BASE-T Central Technologies	6,275	4.72	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFLPF	Active	LAN 10/100 Base-T	-	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.078 (1.98mm)
CTLFAMMF-002 LAN FILTER - 10/100 BASE-T Central Technologies	5,316	4.72	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFAMMF	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.125 L x 0.492 W (28.58mm x 12.50mm)	0.230 (5.85mm)

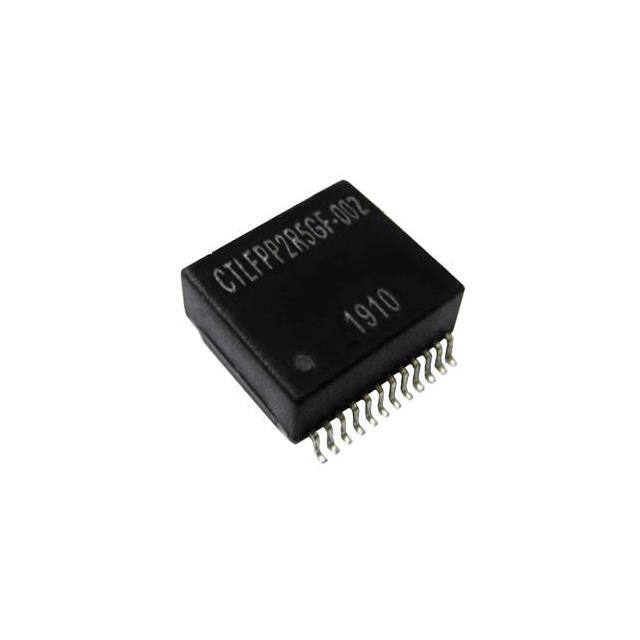

CTLFPP2R5GF-002 LAN FILTER-2.5 GIGABIT ETHERNET Central Technologies	7,758	4.72	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP2R5GF	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.537 L x 0.475 W (13.64mm x 12.07mm)	0.245 (6.22mm)

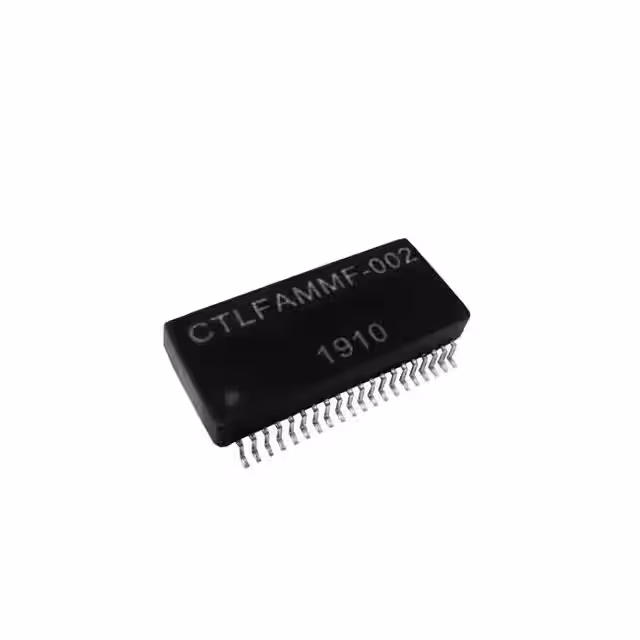

CTLFAMMF-003 LAN FILTER - 10/100 BASE-T Central Technologies	12,848	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFAMMF	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.125 L x 0.492 W (28.58mm x 12.50mm)	0.230 (5.85mm)

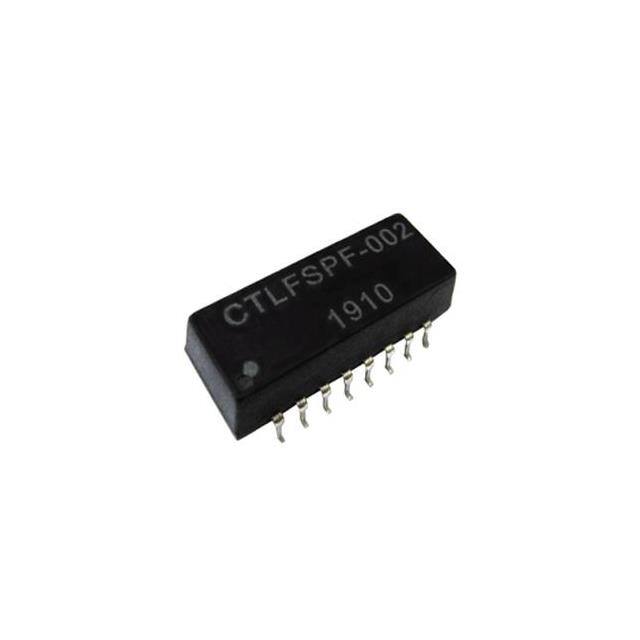

CTLFSPF-001 SINGLE PORT-10/100 BASE-T Central Technologies	11,850	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFSPF	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.006 L x 0.390 W (25.55mm x 9.90mm)	0.280 (7.10mm)
CTLFAMMF-001 LAN FILTER - 10/100 BASE-T Central Technologies	10,707	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFAMMF	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.125 L x 0.492 W (28.58mm x 12.50mm)	0.230 (5.85mm)

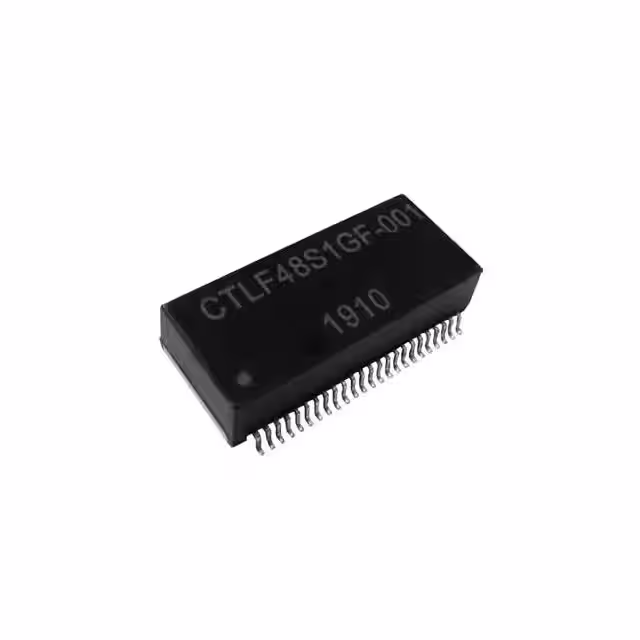

CTLF48S1GF-002 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	12,985	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLF48S1GF	Active	LAN 10/100/1000 Base-T	-	-	-	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
CTLFPP10GF-002 LAN FILTER-10 GIGABIT ETHERNET Central Technologies	12,803	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP10GF	Active	LAN 10G Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.537 L x 0.470 W (13.65mm x 11.95mm)	0.246 (6.25mm)
CTLFPP5GF-002 LAN FILTER-5 GIGABIT ETHERNET Central Technologies	10,063	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP5GF	Active	LAN 5G Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
CTLFPP1GF-004 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	11,905	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP1GF	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.512 L x 0.496 W (13.00mm x 12.60mm)	0.146 (3.70mm)
CTLFPP10GF-003 LAN FILTER-10 GIGABIT ETHERNET Central Technologies	14,335	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP10GF	Active	LAN 10G Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.537 L x 0.470 W (13.65mm x 11.95mm)	0.246 (6.25mm)
CTLFLPF-001 LAN FILTER - 10/100 BASE-T Central Technologies	10,963	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFLPF	Active	LAN 10/100 Base-T	-	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.083 (2.10mm)
CTLFPP1GF-002 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	11,810	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP1GF	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
CTLFPP1GF-008 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	11,162	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP1GF	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.537 L x 0.475 W (13.64mm x 12.07mm)	0.245 (6.22mm)
CTLFPP2R5GF-001 LAN FILTER-2.5 GIGABIT ETHERNET Central Technologies	10,379	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP2R5GF	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	0.537 L x 0.470 W (13.65mm x 11.95mm)	0.246 (6.25mm)
CTLFPP1GF-003 LAN FILTER-1 GIGABIT ETHERNET Central Technologies	13,409	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	CTLFPP1GF	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	-	-	-	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
