Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
GU4929RM LF MDL 1G DIP 4 PORT POE 90W Pulse Electronics Network	1,348	13.42	- + RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319 L x 1.142 W (33.50mm x 29.00mm)	0.661 (16.80mm)
QGU4929RAM MDL DIP 5G 4 PORT POE 90W Pulse Electronics Network	2,762	13.81	- + RFQ		Tube	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	180µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319 L x 1.142 W (33.50mm x 29.00mm)	0.661 (16.80mm)
T4PH04 MDL DIP 10G QUAD PORTS N/A Pulse Electronics Network	4,770	13.82	- + RFQ		Tube	-	Active	LAN 10 Base-T	100µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319 L x 1.142 W (33.50mm x 29.00mm)	0.661 (16.80mm)
QGU4629RA DIP 5G 4 PORT POE 60W Pulse Electronics Network	2,564	14.20	- + RFQ		Tube	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	180µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319 L x 1.142 W (33.50mm x 29.00mm)	0.661 (16.80mm)

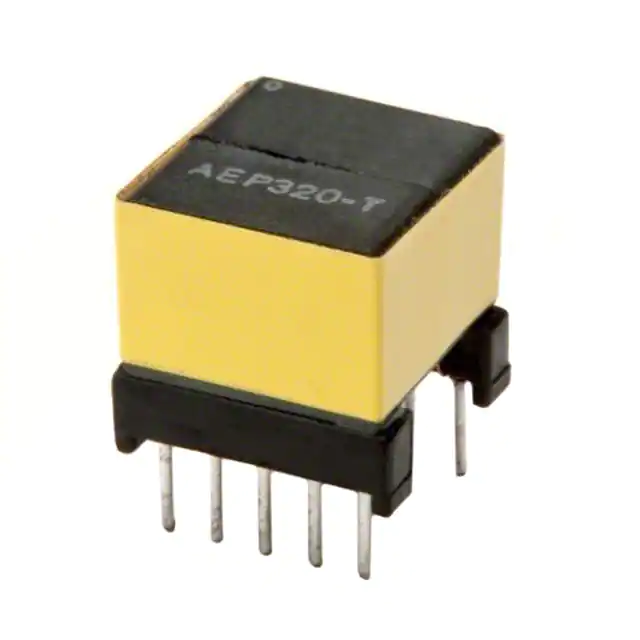

AEP-320-T XFRMR ADSL 1.2:1 3.96MH T/H Amgis, LLC	1,509	14.77	- + RFQ		Tray	-	Active	ADSL	3.96mH	-	1.2:1	Through Hole	-	-

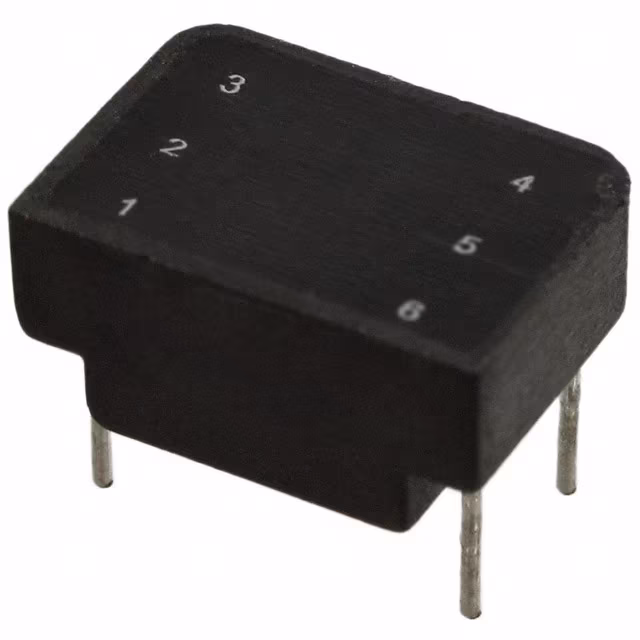

T6075NL PULSE XFMR 1:1 225UH Pulse Electronics Network	2,856	15.91	- + RFQ	Datasheet	Tube	-	Active	-	225µH	-	1:1	Through Hole	0.498 L x 0.350 W (12.65mm x 8.89mm)	0.250 (6.35mm)
H5012FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	4,754	15.94	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.590 W (27.81mm x 14.99mm)	0.285 (7.24mm)
HX5014FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	12,655	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.590 W (27.81mm x 14.99mm)	0.285 (7.24mm)
T4PH04RV MDL 10G 4 PORT POE 90W Pulse Electronics Network	2,199	16.60	- + RFQ		Tube	-	Active	LAN 10 Base-T	120µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319 L x 1.142 W (33.50mm x 29.00mm)	0.661 (16.80mm)
T4PH04RT MDL 10G 4 PORT POE 90W Pulse Electronics Network	3,736	16.60	- + RFQ		Tube	-	Active	LAN 10 Base-T	100µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319 L x 1.142 W (33.50mm x 29.00mm)	0.661 (16.80mm)

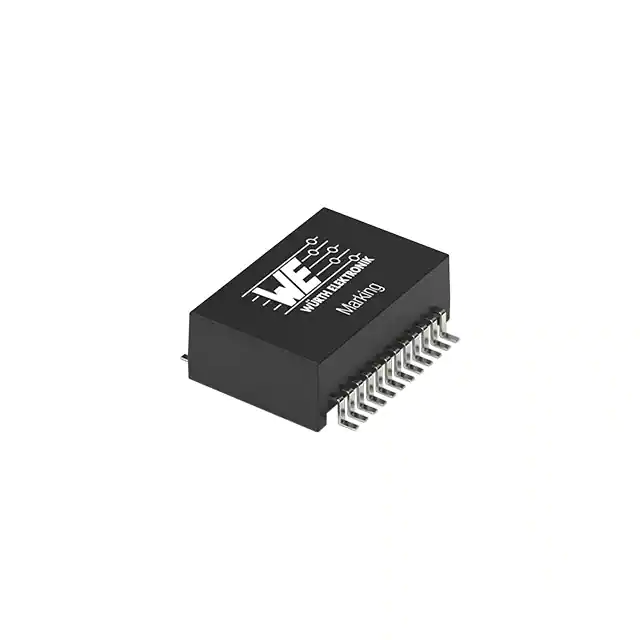

749023016 WE-LAN 10/100/1000 BASE-T SMT TR Würth Elektronik	3,083	17.82	- + RFQ		Tape & Reel (TR)	WE-LAN	Active	LAN 1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.720 L x 0.480 W (18.30mm x 12.20mm)	0.250 (6.35mm)

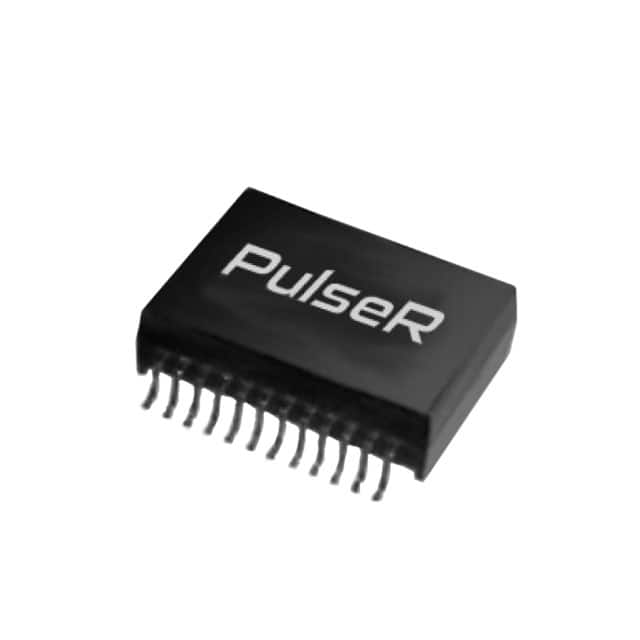

1000B-5006 XFMR MODULE DUAL 1000B PBC iNRCORE, LLC	3,209	22.80	- + RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.518 L x 0.595 W (13.16mm x 15.11mm)	0.251 (6.38mm)
HX6400NLT MDL QUAD 1GPP 1:1 SM TR Pulse Electronics Network	1,796	24.13	- + RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	150µH	-	1:1	Surface Mount	1.120 L x 0.680 W (28.45mm x 17.27mm)	0.440 (11.18mm)

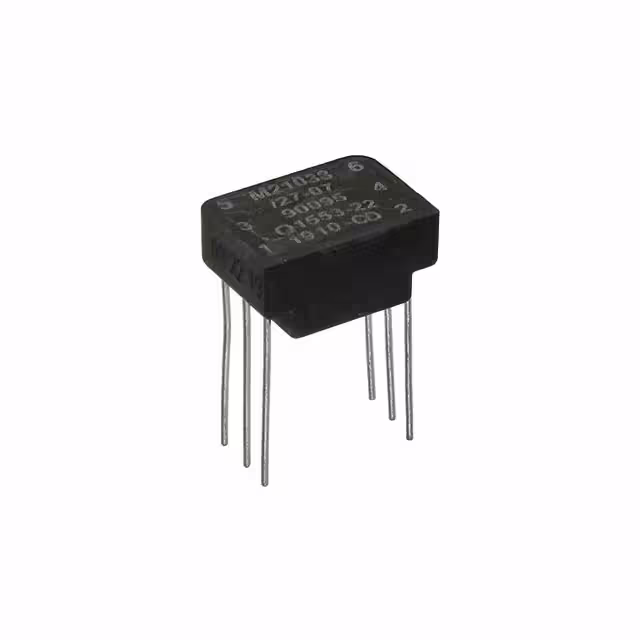

Q1553-22 TRANSFORMER PBC iNRCORE, LLC	2,351	36.42	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1.41CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

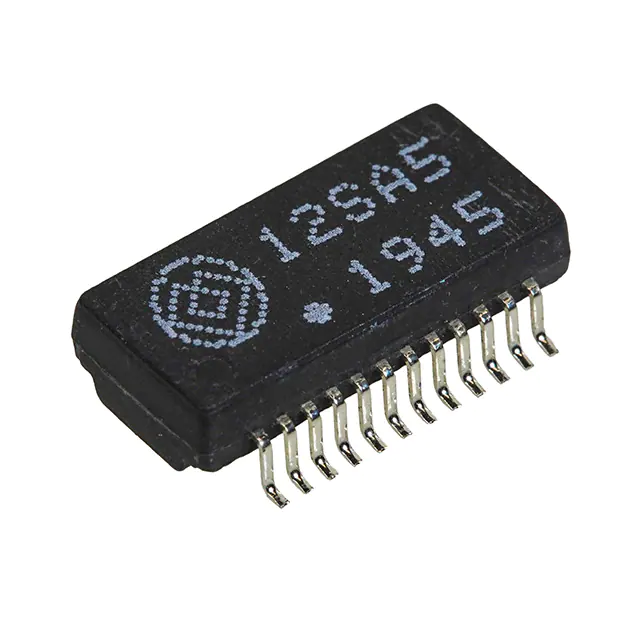

RT12SA5-RU DISCRETE PULSE LAN XFMR 1G Mag Layers	12,906	0.00	- + RFQ	Datasheet	Tape & Reel (TR)	Transformer	Active	1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.158 (4.01mm)

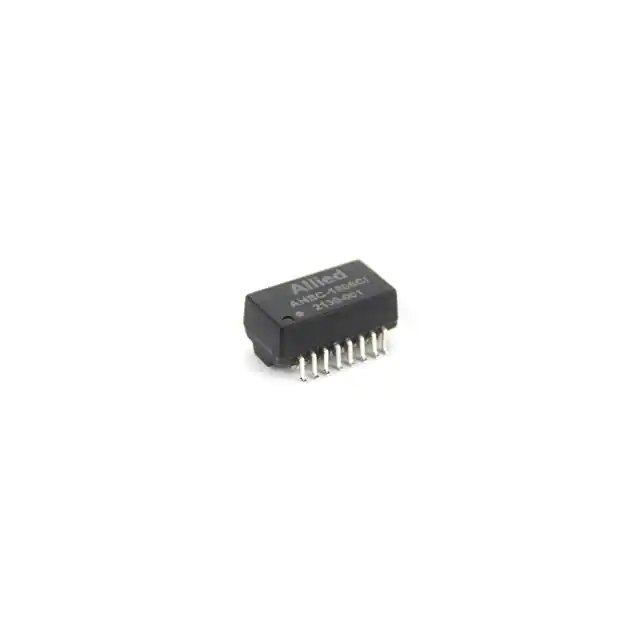

AHSC-1606CI 10/100 BASE-T, POE+ 720MA, LAN Allied Components International	11,564	0.85	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1CT	Surface Mount	0.516 L x 0.281 W (13.10mm x 7.15mm)	0.244 (6.20mm)

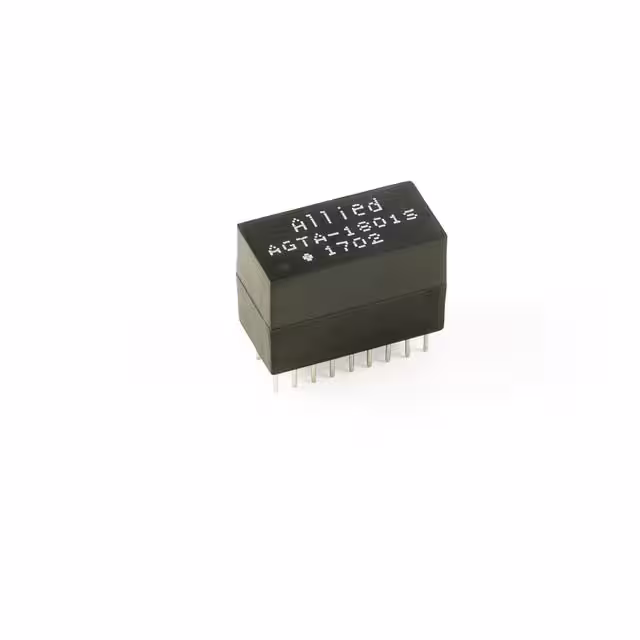

AGTA-1801S 100/1000 BASE T GIG SINGLE PORT Allied Components International	14,104	0.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Through Hole	0.661 L x 0.335 W (16.80mm x 8.50mm)	0.467 (11.85mm)

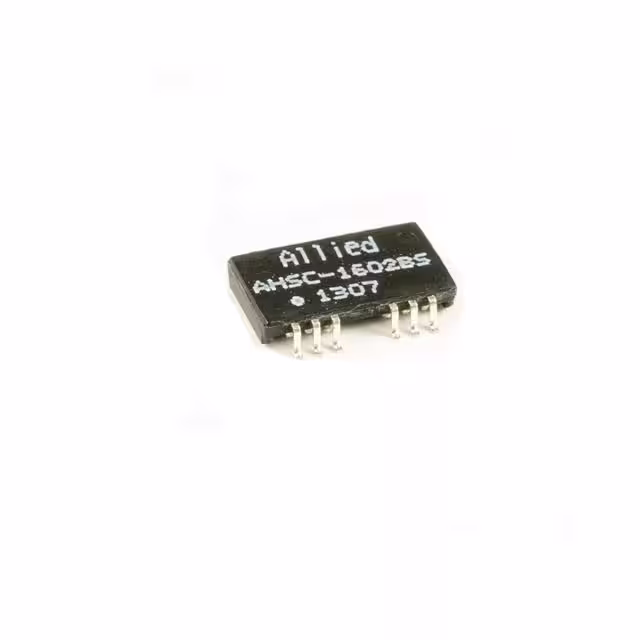

AHSC-1602BS 10/100/1000BASE-T LAN FILTER Allied Components International	10,827	0.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.12mm)	0.089 (2.27mm)

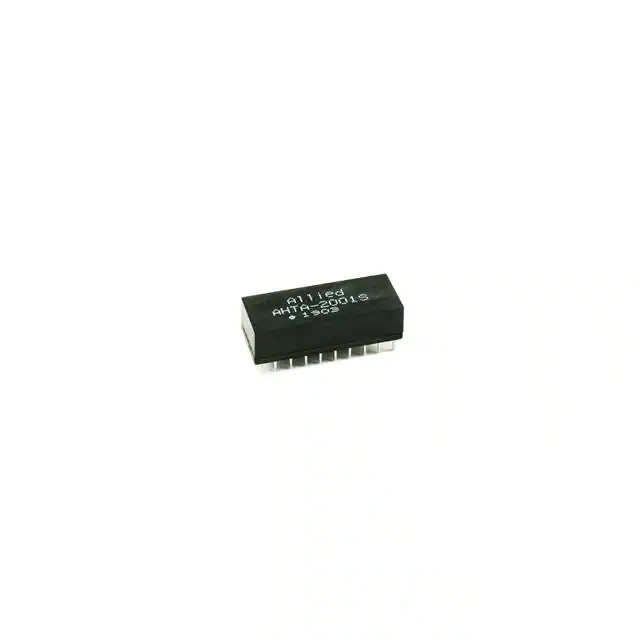

AHTA-2001S 10/100 BASE T DUAL PORT LAN Allied Components International	11,825	0.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.000 L x 0.395 W (25.40mm x 10.03mm)	0.260 (6.60mm)

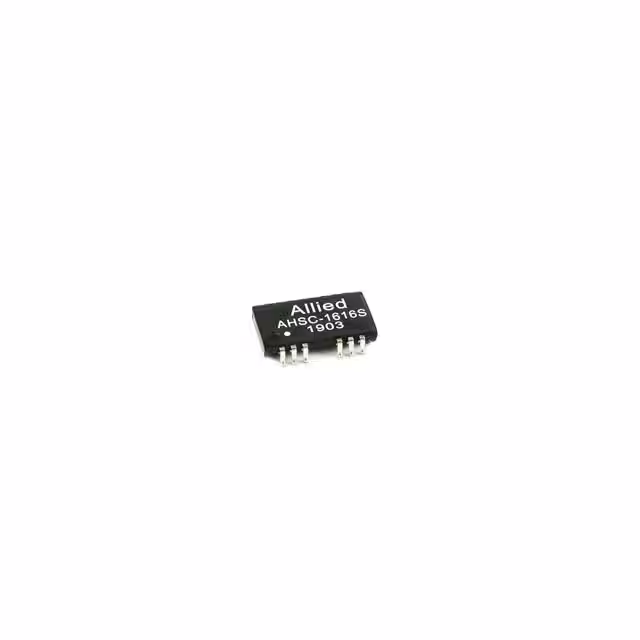

AHSC-1616S 10/100 BASE-T TRANSFORMER Allied Components International	11,646	0.98	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.12mm)	0.089 (2.27mm)
