| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL0531R2OPTOCOUPLR TRANS 2CHAN HS 8SOIC |
6,259 | 5.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 2 | 2500Vrms | 19% @ 16mA | 50% @ 16mA | 450ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.45V | 25 mA | - | -40°C ~ 85°C | Surface Mount |
|
HCPL-3700-500EOPTOISOLATOR 3.75KV DARL 8DIP GW |
5,863 | 5.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | - | - | 4µs, 10µs | 20µs, 0.3µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Surface Mount |
.jpg)
|
HCNW139-000EOPTOISO 5KV DARL W/BASE 8DIP |
5,536 | 2.33 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 200% @ 12mA | - | 11µs, 11µs | - | DC | Darlington with Base | 18V | 60mA | 1.45V | 20 mA | - | -40°C ~ 85°C | Through Hole |
|
HCPL-0501-000EOPTOISO 3.75KV TRANS W/BASE 8SO |
5,092 | 2.37 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 15% @ 16mA | - | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|

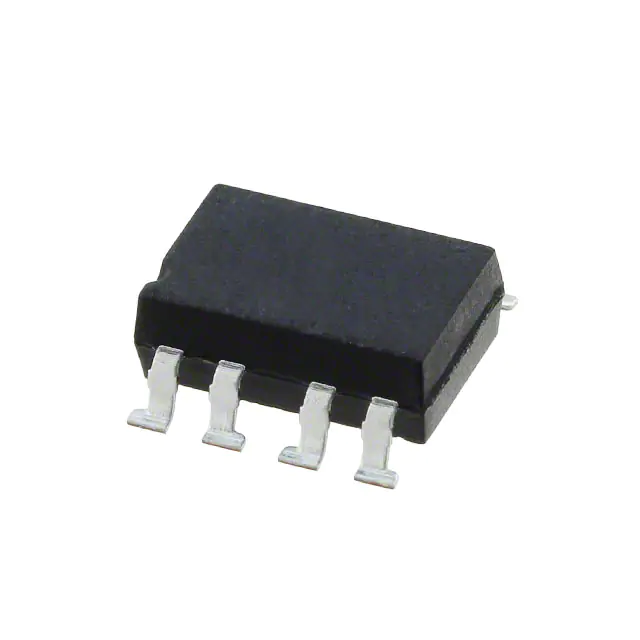

LH1262CACTROPTOISO 5.3KV 2CH PHVOLT 8-SMD |
8,855 | 4.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | - | - | 35µs, 90µs | - | DC | Photovoltaic | 15V | 1µA | 1.26V | 50 mA | - | -40°C ~ 85°C | Surface Mount |
|
ACPL-M50L-000EOPTOISOLATOR 3.75KV TRANS 5-SO |
8,998 | 2.44 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 100% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
HCPL-4503-000EOPTOISOLATOR 3.75KV TRANS 8-DIP |
8,426 | 2.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
ASSR-V622-502EOPTOISO 3.75KV 2CH PHVOLT 8DIPGW |
5,135 | 4.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | - | - | 280µs, 30µs | - | DC | Photovoltaic | 7V | 20µA | 1.3V | 30 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0731-500EOPTOISO 3.75KV 2CH DARLNG 8-SO |
5,400 | 5.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 18V | 60mA | 1.4V | 12 mA | 100mV | 0°C ~ 70°C | Surface Mount |
|
OPI110COPTOISOLATOR 10KV TRANS AXIAL |
6,595 | 2.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 100% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
HCPL2731OPTOISO 2.5KV 2CH DARL 8DIP |
6,776 | 2.71 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2500Vrms | 500% @ 1.6mA | - | 300ns, 5µs | - | DC | Darlington | 18V | 60mA | 1.3V | 20 mA | - | -40°C ~ 85°C | Through Hole |
|
ACPL-K370-500EOPTOISO 5KV DARL 8-SO STRETCHED |
9,093 | 6.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | - | - | 3.7µs, 8.5µs | 25µs, 0.3µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
|
HCNW136-300EOPTOISOLATOR 5KV TRANS 8SMD |
5,137 | 2.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor with Base | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
ILQ2OPTOISO 5.3KV 4CH TRANS 16-DIP |
8,409 | 2.83 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
PS2841-4A-F3-AXOPTOISO 1.5KV 4CH TRANS 12BSOP |
6,636 | 5.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Active | 4 | 1500Vrms | 100% @ 1mA | 400% @ 1mA | - | 20µs, 110µs | DC | Transistor | 70V | 20mA | 1.1V | 20 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
ACNT-H50L-500EOPTOISO 7.5KV TRANSISTOR 8SO |
7,950 | 6.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 7500Vrms | 31% @ 12mA | 80% @ 12mA | 800ns, 1µs | - | DC | Transistor | 24V | 8mA | 1.45V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
HCNR201-500EOPTOISO 5KV LINEAR PHVOLT 8DIPGW |
9,844 | 6.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCNR201-550EOPTOISO 5KV LINEAR PHVOLT 8DIPGW |
5,369 | 6.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
ACPL-W50L-000EOPTOISO 5KV TRANS 6-SO STRETCHED |
7,313 | 3.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
APV1121SOPTOISO 2.5KV PHOTOVOLTAIC 4-SOP |
5,461 | 3.11 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | - | - | 400µs, 100µs | - | DC | Photovoltaic | 8.7V | 14µA | 1.15V | 50 mA | - | -40°C ~ 85°C | Surface Mount |
.jpg)
