| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-217-56BEOPTOISOLATOR 3.75KV TRANS 4SO |
12,238 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
FODM121AR2OPTOISO 3.75KV TRANSISTOR 4SMD |
13,817 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 80mA | 1.3V (Max) | 50 mA | 400mV | -40°C ~ 110°C | Surface Mount |
|
HCPL-354-000EOPTOISO 3.75KV TRANS 4MINIFLAT |
12,372 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
|
FODM124R2OPTOISO 3.75KV TRANSISTOR 4SMD |
10,411 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 1mA | 1200% @ 1mA | - | 3µs, 3µs | DC | Transistor | 80V | 80mA | 1.3V (Max) | 50 mA | 400mV | -40°C ~ 110°C | Surface Mount |
|
HMHA281R2OPTOISO 3.75KV TRANSISTOR 4SOIC |
14,936 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.3V (Max) | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

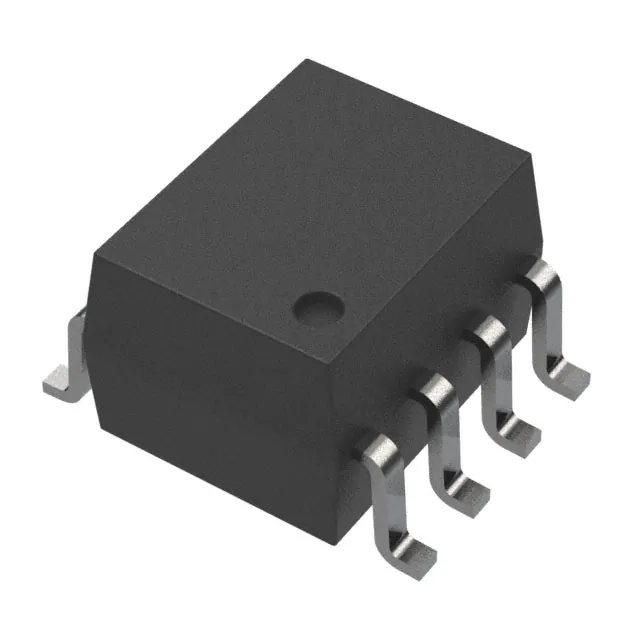

ELD207(TA)-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
13,451 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
TCMD1000OPTOISO 3.75KV DARLINGTON 4-SOP |
12,446 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 600% @ 1mA | - | -, 250µs | 300µs, - | DC | Darlington | 35V | 80mA | 1.25V | 60 mA | 1V | -40°C ~ 100°C | Surface Mount |
|
|
TCMT1600OPTOISOLATOR 3.75KV TRANS 4-SOP |
11,876 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 80% @ 5mA | 300% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | AC, DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 300mV | -40°C ~ 100°C | Surface Mount |
|
FODM217AR24 PIN TRANSISTOR OUTPUT MFP |
12,045 | 0.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FODM217 | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
ACPL-214-500EOPTOISOLATOR 3KV TRANS 4SOIC |
14,597 | 0.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3000Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
TLP188(TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
11,848 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 350V | 50mA | 1.25V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
TLP387(D4-TPL,ETRANSISTOR OPTOCOUPLER HIGH VCEO |
10,452 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1V | -55°C ~ 110°C | Surface Mount |
|
PS2561DL-1Y-V-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
11,717 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
SFH6106-3TOPTOISOLATOR 5.3KV TRANS 4-SMD |
12,229 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6186-3TOPTOISOLATOR 5.3KV TRANS 4-SMD |
9,033 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
TLP187(TPL,EOPTOISO 3.75KV DARL 6-SO, 4 LEAD |
5,047 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | -55°C ~ 110°C | Surface Mount |
|
PC367NJ0000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
8,136 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
TLP291-4(TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
5,540 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP291-4(GB-TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
8,292 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP291-4(V4GBTPEOPTOISOLTR 2.5KV 4CH TRANS 16SO |
9,841 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
