| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX4N24AOPTOISO 1KV TRANS W/BASE TO78-6 |
4,193 | 29.10 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
6N140A#300OPTOISO 1.5KV 4CH DARL 16-DIP GW |
3,551 | 94.29 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
6N140AOPTOISO 1.5KV 4CH DARLNG 16-DIP |
838 | 101.81 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
HCPL-5731OPTOISO 1.5KV 2CH DARLNG 8-DIP |
482 | 119.52 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
.jpg)
|
TLP291(BLL-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
13,462 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP291(BL-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
12,440 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP291(TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
11,816 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP291(Y-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
11,761 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 150% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
TLP185(BLL-TL,SEOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
13,356 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP185(GB-TPL,SEOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
11,500 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP185(GRL-TL,SEOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
12,431 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 200% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP290(BL-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
12,657 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP290(GB-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
10,990 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP290(GR-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
11,981 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP184(BL-TPL,SEOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
11,935 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|

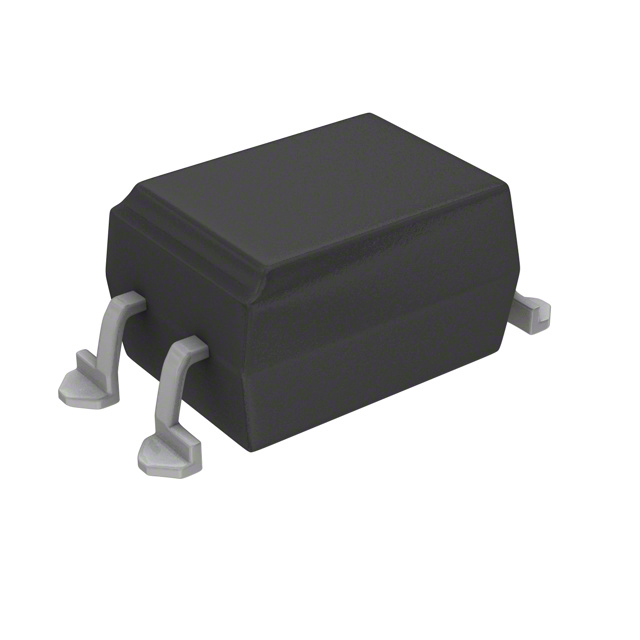

EL814S1(A)(TA)-VOPTOISOLTR 5KV TRANSISTOR 4-SMD |
13,733 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 7µs, 11µs | AC, DC | Transistor | 80V | - | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP183(BLL-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
12,860 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
|
TLP183(GR-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
13,102 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
IS357OPTOISO 3.75KV TRANS MINI-FLAT |
11,931 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
|
TLP293(BLL-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
10,350 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 500µA | 400% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
.jpg)
