Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B64290A0022X033 FERRITE CORE EPCOS - TDK Electronics	5,491	7.86	- + RFQ	Datasheet	Box	T42/26/13	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
PC95PQ20/16Z-12 FERRITE CORE PQ 4.48UH 2PC SET TDK Corporation	5,436	7.99	- + RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 20 x 16	PC95	-	4.48 µH	±25%	Ungapped	-	-	0.61	37.4	62	-	2310	Uncoated	0.638 (16.20mm)
B65887E0160A087 FERRITE CORE EPCOS - TDK Electronics	1,169	11.93	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N87	-	-	-	Gapped	-	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
B65887E1000J087 FERRITE CORE EPCOS - TDK Electronics	2,580	11.93	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N87	-	-	-	Gapped	-	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
TX58/41/18-3C90 FERRITE CORES ROUND Ferroxcube	4,392	12.05	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 58 x 41 x 18	3C90	2.354 (59.80mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.729 (18.60mm)
PQ50/30-3F36 FERRITE CORE 2PC SET Ferroxcube	1,219	13.80	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 30	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)
B65887P0000R092 FERRITE CORE EPCOS - TDK Electronics	3,921	17.22	- + RFQ	Datasheet	Box	RM14/LP	Active	RM	-	N92	-	-	-20%, +30%	Ungapped	1090	1500	0.25	50.9	201	170	10230	Uncoated	-
B64290L0043X037 FERRITE CORE TOROID 13UH T37 EPCOS - TDK Electronics	2,949	22.94	- + RFQ	Datasheet	Box	TX58.3/32/18	Active	Toroid	-	T37	2.366 (60.10mm)	13 µH	±25%	Ungapped	-	6000	0.58	134	230	-	30710	Epoxy	0.760 (19.30mm)
B65621J0000R048 FERRITE CORE P 8.4UH N48 2PCS EPCOS - TDK Electronics	1,983	25.32	- + RFQ	Datasheet	Box	P41/25	Active	P (Pot Core)	P 41 x 25	N48	1.614 (41.00mm)	8.4 µH	-20%, +30%	Ungapped	1720	-	0.264	60.4	229	201	13832	Uncoated	0.492 (12.50mm)
9498102002 98 E CORE SET Fair-Rite Products Corp.	12,249	0.22	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	234	29.6	12.7	12.2	376	Uncoated	0.250 (6.35mm)
E13/7/4-3C94 FERRITE CORE Ferroxcube	13,446	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 13 x 7 x 4	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.256 (6.50mm)
B64290L0763X087 FERRITE CORE EPCOS - TDK Electronics	10,483	0.43	- + RFQ	Datasheet	Box	TX10/6/3	Active	Toroid	-	N87	-	-	-	Gapped	-	2200	-	-	-	-	-	Epoxy	-

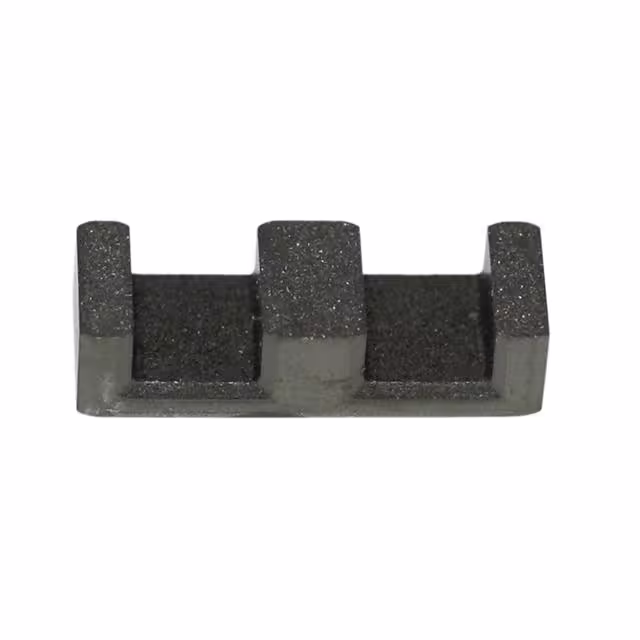

9478201002 78 PLANAR E CORE SET Fair-Rite Products Corp.	12,078	0.54	- + RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	134	20.1	15.3	15	315	Uncoated	-
5943005101 43 TOROID Fair-Rite Products Corp.	13,939	0.60	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	43	0.630 (16.00mm)	-	±20%	Ungapped	-	800	-	38.5	14.5	-	560	Uncoated	-
9495103002 95 E CORE SET Fair-Rite Products Corp.	13,463	0.60	- + RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	181	39.9	22	21.6	878	Uncoated	0.315 (8.00mm)
B64290L0643X830 FERRITE CORE EPCOS - TDK Electronics	10,500	0.61	- + RFQ	Datasheet	Box	TX12.5/7.5/4.1	Active	Toroid	-	N30	-	-	-	Gapped	-	4300	-	-	-	-	-	Epoxy	-
B64290L0044X035 FERRITE CORE TOROID 3.06UH T35 EPCOS - TDK Electronics	12,110	0.61	- + RFQ	Datasheet	Box	TX12.5/7.5/5	Active	Toroid	-	T35	0.535 (13.60mm)	3.06 µH	±25%	Ungapped	-	6000	2.46	30.09	12.23	-	368	Epoxy	0.234 (5.95mm)
9478104002 78 E CORE SET Fair-Rite Products Corp.	14,050	0.64	- + RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	150	46.3	30.9	30	1430	Uncoated	-
B66305F0000X146 FERRITE CORE E T46 1PC EPCOS - TDK Electronics	13,920	0.69	- + RFQ	Datasheet	Box	E13/7/4	Active	E	E 13 x 7 x 4	T46	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.256 (6.50mm)
8998121221 98 EFD CORE SET Fair-Rite Products Corp.	12,450	0.70	- + RFQ	Datasheet	Bulk	-	Active	EFD	-	-	-	-	±25%	Ungapped	-	2400	259	28.4	11	10.8	311	Uncoated	0.244 (6.20mm)
