Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B64290L0742X065 FERRITE CORE TOROID 2.85UH T65 EPCOS - TDK Electronics	14,916	0.57	- + RFQ	Datasheet	Box	TX13/7.9/6.4	Active	Toroid	-	T65	0.535 (13.60mm)	2.85 µH	±30%	Ungapped	-	4700	2.08	31.17	14.96	-	466	Epoxy	0.281 (7.15mm)
TX14/9/5-3E10-M FERRITE CORES ROUND Ferroxcube	11,694	0.57	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 14 x 9 x 5	-	0.561 (14.25mm)	-	±30%	Ungapped	-	-	2.84	35	12.3	-	430	Epoxy	0.207 (5.25mm)
TX10/6/4-3C90 FERRITE CORES ROUND Ferroxcube	13,719	0.72	- + RFQ		Bulk	-	Active	Toroid	-	3C90	-	-	-	-	-	-	-	-	-	-	-	Epoxy	0.167 (4.25mm)
B66307G0100X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	13,516	0.73	- + RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
B64290A0038X010 FERRITE CORE EPCOS - TDK Electronics	11,422	0.76	- + RFQ	Datasheet	Box	T10/6/4	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B66307G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	11,564	0.79	- + RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)

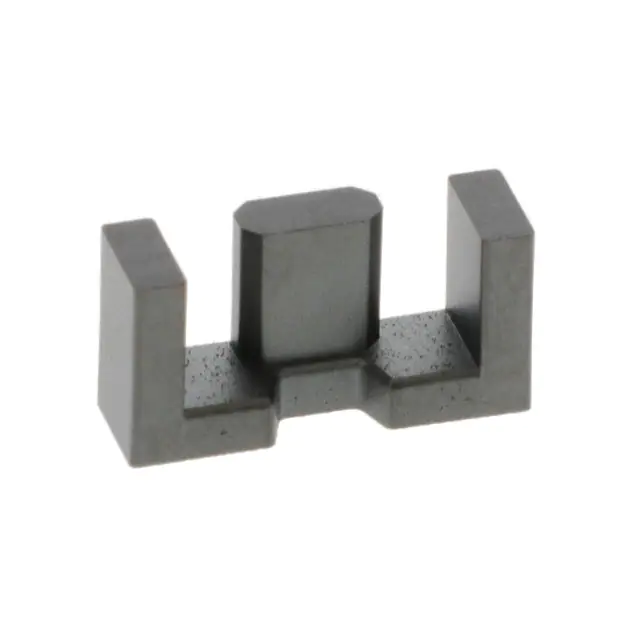

8995151521 95 EFD CORE SET Fair-Rite Products Corp.	13,552	0.81	- + RFQ	Datasheet	Bulk	-	Active	EFD	-	95	-	-	±25%	Ungapped	-	3000	223	34.4	15.4	12.7	531	Uncoated	0.295 (7.50mm)
TX16/9.1/4.7-3E6 FERRITE CORES ROUND Ferroxcube	13,070	0.90	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	-	0.635 (16.13mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.195 (4.95mm)
B66379F0000X146 FERRITE CORE E T46 1PC EPCOS - TDK Electronics	14,695	0.94	- + RFQ	Datasheet	Box	E19/8/5	Active	E	E 19 x 8 x 5	T46	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
B64290L0652X830 FERRITE CORE TOROID 2.71UH N30 EPCOS - TDK Electronics	14,267	0.95	- + RFQ	Datasheet	Box	TX17.4/10.3/7	Active	Toroid	-	N30	0.717 (18.20mm)	2.71 µH	±25%	Ungapped	-	4300	2	42	21.04	-	884	Epoxy	0.307 (7.80mm)
TX13/7.1/4.8-3E12 FERRITE CORES ROUND Ferroxcube	6,238	1.00	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.1 x 4.8	-	0.510 (12.95mm)	-	-	Ungapped	-	-	2.4	29.5	12.3	-	361	Epoxy	0.198 (5.03mm)
5678140921 78 POT CORE SET Fair-Rite Products Corp.	6,565	1.02	- + RFQ	Datasheet	Bulk	-	Active	PS	-	78	0.551 (14.00mm)	-	±25%	Ungapped	-	2300	79	19.8	25.1	-	495	Uncoated	0.165 (4.20mm)
5695090621 95 POT CORE SET Fair-Rite Products Corp.	9,112	1.26	- + RFQ	Datasheet	Bulk	-	Active	PS	-	95	-	-	±25%	Ungapped	-	3000	120	13.5	11.2	-	152	Uncoated	-
B65931C0000X022 FERRITE CORES EPCOS - TDK Electronics	5,864	1.28	- + RFQ	Datasheet	Box	PS5.6/3.7	Active	-	-	N22	0.220 (5.60mm)	-	-	-	-	2300	-	-	-	-	-	Uncoated	0.146 (3.70mm)

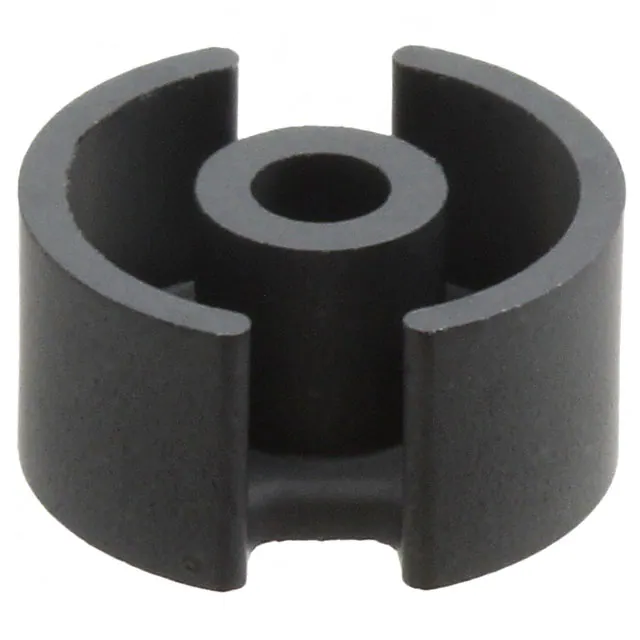

B65935A0000X033 FERRITE CORE P M33 1PC EPCOS - TDK Electronics	6,985	1.37	- + RFQ		Box	PS9.4/4.6	Active	P (Pot Core)	PCH 9.4 x 4.6	M33	0.370 (9.40mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.181 (4.60mm)
B65805C0100A033 FERRITE CORE RM 100NH M33 2PCS EPCOS - TDK Electronics	7,333	3.18	- + RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	RM5	Active	RM	RM 5	M33	-	100 nH	±3%	Gapped	79.6	750	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)
5678181221 78 POT CORE SET Fair-Rite Products Corp.	5,709	1.49	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	-	78	0.315 (8.00mm)	-	±25%	Ungapped	-	2300	60	25.9	43	36	1120	Uncoated	0.211 (5.36mm)
7898400321 98 PLANAR EI CORE SET Fair-Rite Products Corp.	6,548	1.55	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	33	26.1	79	79	2060	Uncoated	0.224 (5.70mm)
B65513J0000R097 FERRITE CORE ER 1.5UH N97 2PCS EPCOS - TDK Electronics	5,615	1.76	- + RFQ	Datasheet	Tray	ER14.5	Active	ER	ER 14.5 x 6	N97	-	1.5 µH	-20%, +30%	Ungapped	1290	2300	1.1	19	17.6	-	333	Uncoated	0.116 (2.95mm)
B66281K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	8,432	1.79	- + RFQ	Datasheet	Bag	I14/1.5/5	Active	I	I 14 x 1.5 x 5	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
