Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66295G0000X195 FERRITE CORE 1PC EPCOS - TDK Electronics	1,326	18.96	- + RFQ	Datasheet	Box	ELP64/10/50	Active	ELP	ELP 64 x 10 x50	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)

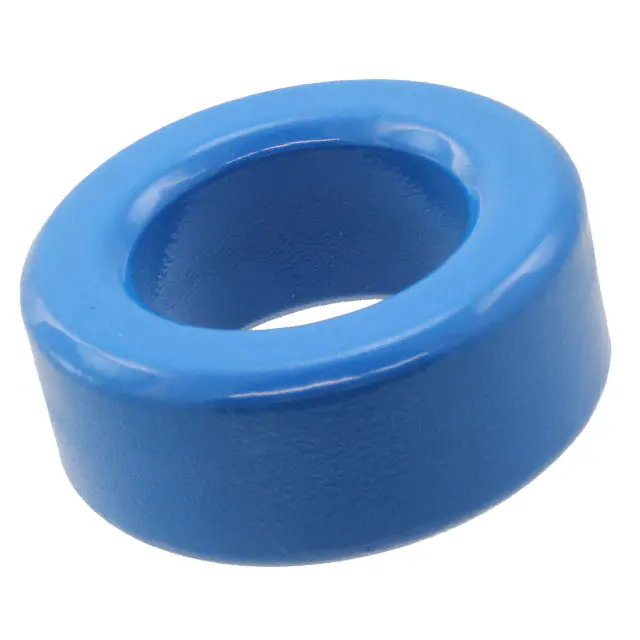

B64290L0082X037 FERRITE CORE TOROID 12UH T37 EPCOS - TDK Electronics	4,438	19.31	- + RFQ	Datasheet	Box	TX50/30/20	Active	Toroid	-	T37	2.040 (51.80mm)	12 µH	±25%	Ungapped	-	6000	0.62	120.4	195.7	-	23560	Epoxy	0.839 (21.30mm)
PM62/49-3C94 FERRITE CORE 2PC SET Ferroxcube	1,213	20.85	- + RFQ	Datasheet	Bulk	-	Active	PM	PM 62 x 49	3C94	2.441 (62.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	1.929 (49.00mm)
TX63/38/25-3C94 FERRITE CORES ROUND Ferroxcube	3,750	22.59	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C94	2.480 (63.00mm)	-	±25%	Ungapped	2300	-	0.497	152	306	-	46500	Epoxy	0.984 (25.00mm)
TX63/38/25-3C90 FERRITE CORES ROUND Ferroxcube	2,113	22.59	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C90	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.984 (25.00mm)
TX80/40/15-3C94 FERRITE CORES ROUND Ferroxcube	2,315	24.62	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 80 x 40 x 15	3C94	3.268 (83.00mm)	-	±25%	Ungapped	2300	-	0.604	174	288	-	50200	Epoxy	0.626 (15.90mm)
TX80/40/15-3C90 FERRITE CORES ROUND Ferroxcube	4,238	24.62	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 80 x 40 x 15	3C90	3.268 (83.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.626 (15.90mm)
TX63/38/25-3E27 FERRITE CORES ROUND Ferroxcube	1,244	24.82	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.984 (25.00mm)

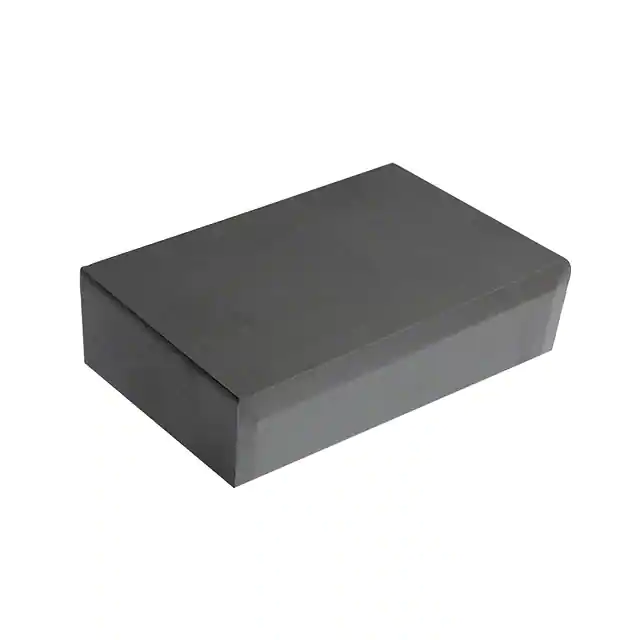

I93/28/30-3C94 FERRITE CORE Ferroxcube	4,506	30.40	- + RFQ	Datasheet	Bulk	-	Active	I	I 93 x 28 x 30	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)

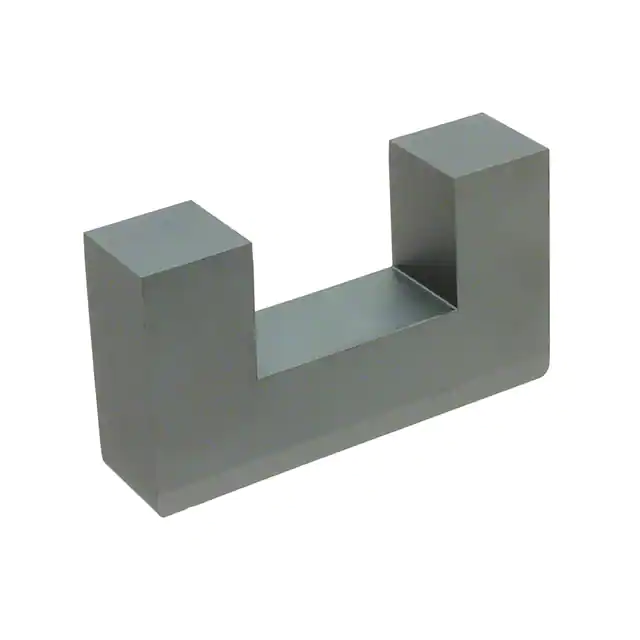

U100/57/25-3C90 CORES Ferroxcube	1,800	33.01	- + RFQ	Datasheet	Bulk	-	Active	U	U 100 x 57 x 25	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-

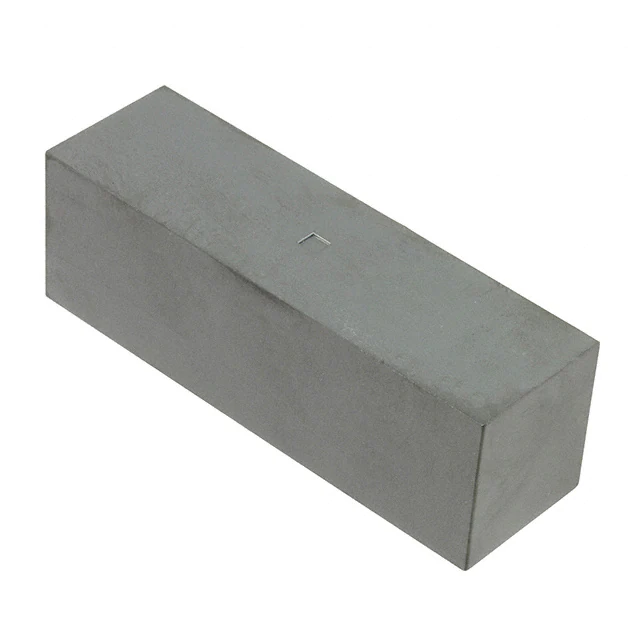

B67345B0002X087 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	2,481	33.09	- + RFQ	Datasheet	Box	I93/28/30	Active	I	I 93 x 28 x 30	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.102 (28.00mm)

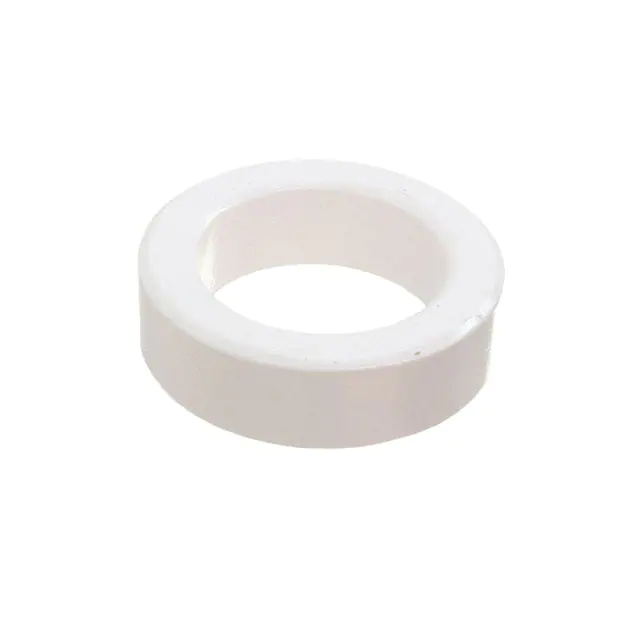

TX58/41/18-4C65 FERRITE CORES ROUND Ferroxcube	2,005	33.19	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 58 x 41 x 18	4C65	2.354 (59.80mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.729 (18.60mm)
5943015901 43 TOROID Fair-Rite Products Corp.	1,583	36.32	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	43	-	-	±25%	Ungapped	-	800	-	230	277	-	63700	Uncoated	0.500 (12.70mm)

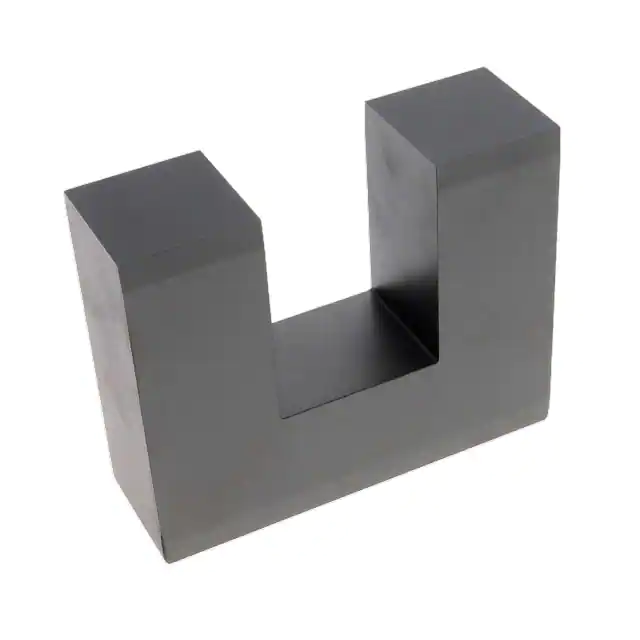

U93/76/30-3C90 CORES Ferroxcube	4,902	50.93	- + RFQ	Datasheet	Bulk	-	Active	U	U 93 x 76 x 30	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
TX80/40/15-4C65 FERRITE CORES ROUND Ferroxcube	2,759	66.46	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 80 x 40 x 15	4C65	3.268 (83.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.626 (15.90mm)

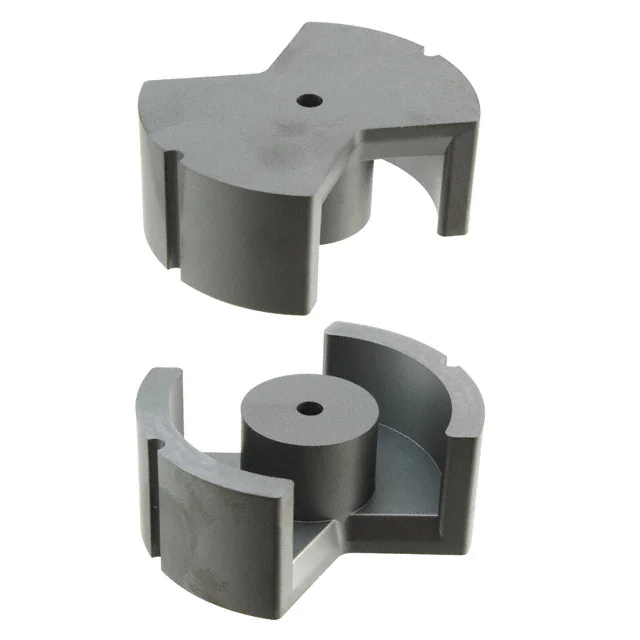

B65686A0315A027 FERRITE CORE PM 315NH N27 2PCS EPCOS - TDK Electronics	2,089	86.98	- + RFQ	Datasheet	Box	PM74/59	Active	PM	PM 74 x 59	N27	2.913 (74.00mm)	315 nH	±3%	Gapped	41	2000	0.162	128	790	630	101000	Uncoated	1.161 (29.50mm)

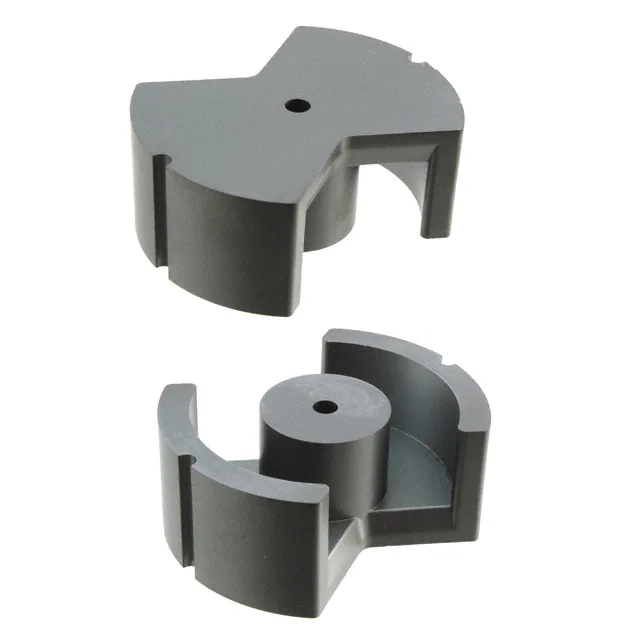

B65686A0000R087 FERRITE CORE PM 10UH N87 2PCS EPCOS - TDK Electronics	493	102.61	- + RFQ	Datasheet	Box	PM74/59	Active	PM	PM 74 x 59	N87	2.913 (74.00mm)	10 µH	-20%, +30%	Ungapped	1290	2200	0.162	128	790	630	101000	Uncoated	1.161 (29.50mm)

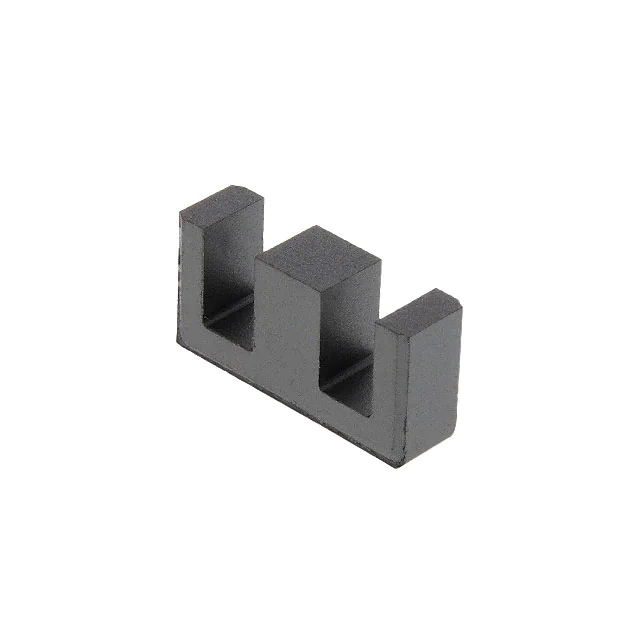

9478102002 78 E CORE SET Fair-Rite Products Corp.	12,401	0.32	- + RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	234	29.6	12.7	12.2	376	Uncoated	0.250 (6.35mm)

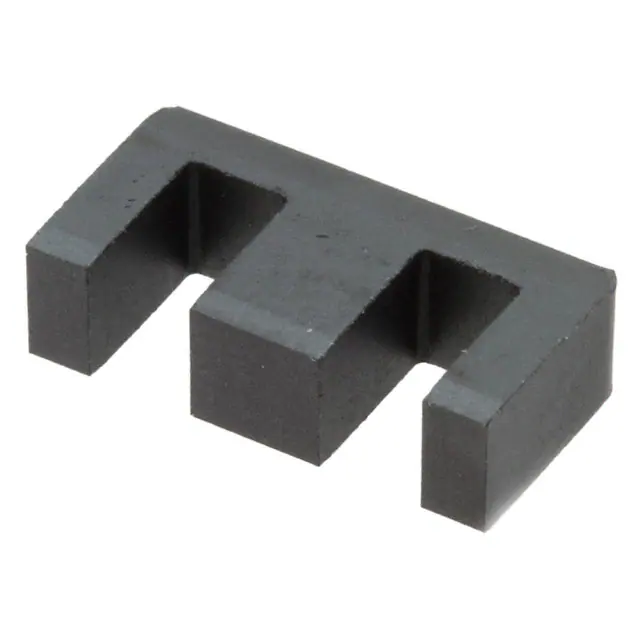

B66305G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	11,633	0.44	- + RFQ	Datasheet	Box	E13/7/4	Active	E	E 13 x 7 x 4	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.256 (6.50mm)

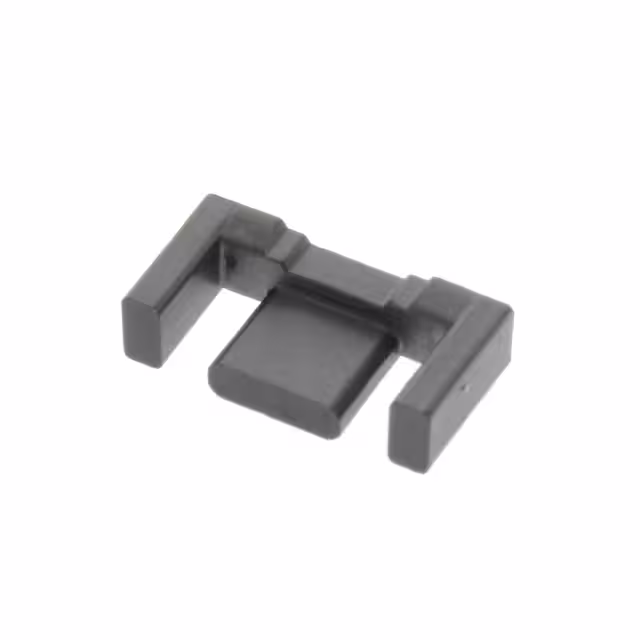

8995101021 98 EFD CORE SET Fair-Rite Products Corp.	10,963	0.50	- + RFQ	Datasheet	Bulk	-	Active	EFD	-	95	-	-	±25%	Ungapped	-	3000	327	23.6	7.2	6.6	171	Uncoated	0.205 (5.20mm)
