Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension

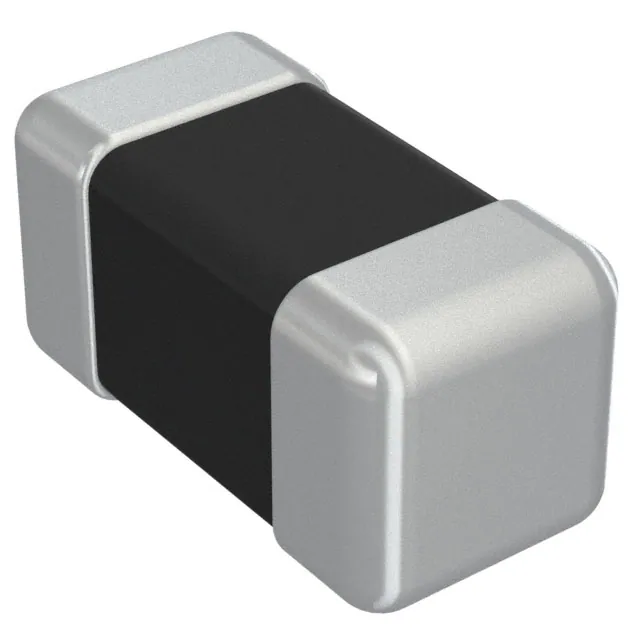

MPZ0603S121HT000 CHIP BEADS FOR GENERAL SIGNAL LI TDK Corporation	10,263	0.14	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MPZ-H	Active	Power Line	1	120 Ohms @ 100 MHz	1A	130mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)

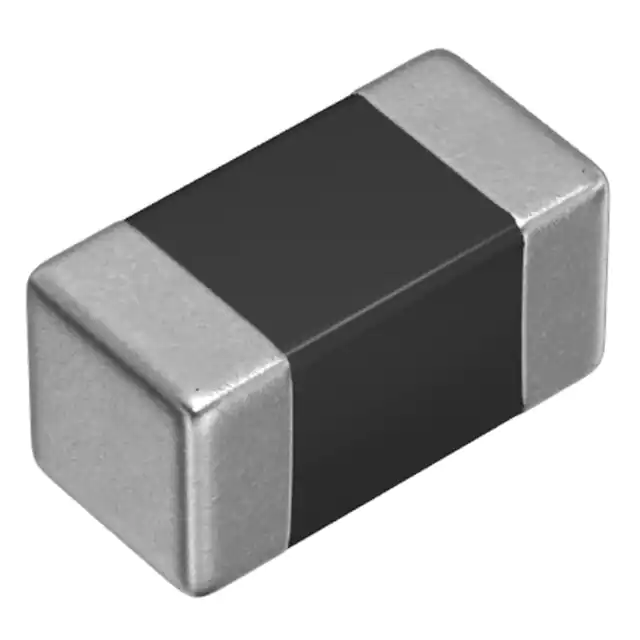

MMZ1005S601CT000 FERRITE BEAD 600 OHM 0402 1LN TDK Corporation	13,773	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	600 Ohms @ 100 MHz	300mA	520mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005S600CT000 FERRITE BEAD 60 OHM 0402 1LN TDK Corporation	13,968	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	60 Ohms @ 100 MHz	1.5A	60mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005S121CT000 FERRITE BEAD 120 OHM 0402 1LN TDK Corporation	13,120	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	120 Ohms @ 100 MHz	1.2A	90mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005A222ET000 FERRITE BEAD 2.2 KOHM 0402 1LN TDK Corporation	11,660	0.20	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	2.2 kOhms @ 100 MHz	150mA	2.2Ohm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005S182ET000 FERRITE BEAD 1.8 KOHM 0402 1LN TDK Corporation	13,462	0.20	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	1.8 kOhms @ 100 MHz	200mA	1.5Ohm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005A222ETD25 FERRITE BEAD 2.2 KOHM 0402 1LN TDK Corporation	14,619	0.19	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	2.2 kOhms @ 100 MHz	150mA	2.2Ohm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)

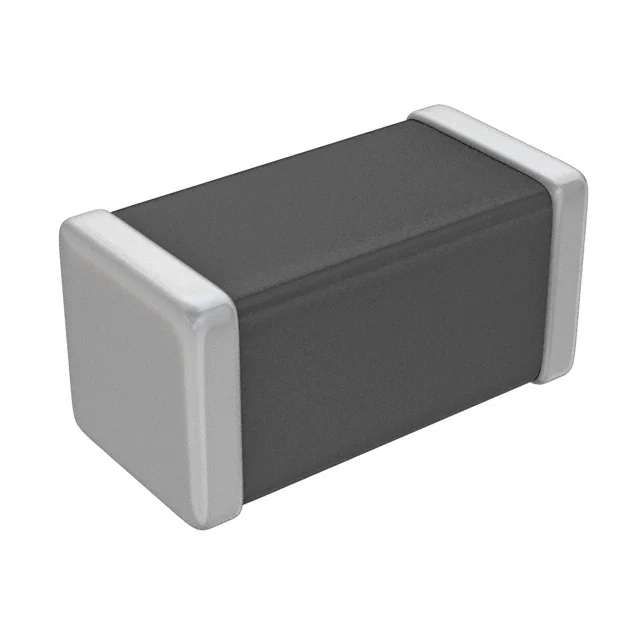

MPZ1005S331ETD25 FERRITE BEAD 330 OHM 0402 1LN TDK Corporation	11,855	0.29	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-E	Active	Power Line	1	330 Ohms @ 100 MHz	700mA	280mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)

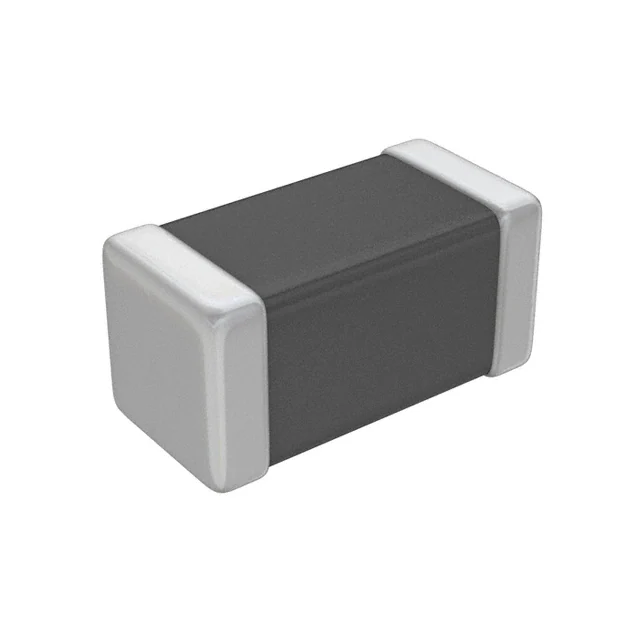

MMZ0603S102ET000 FERRITE BEAD 1 KOHM 0201 1LN TDK Corporation	14,562	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	1 kOhms @ 100 MHz	125mA	2.6Ohm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)

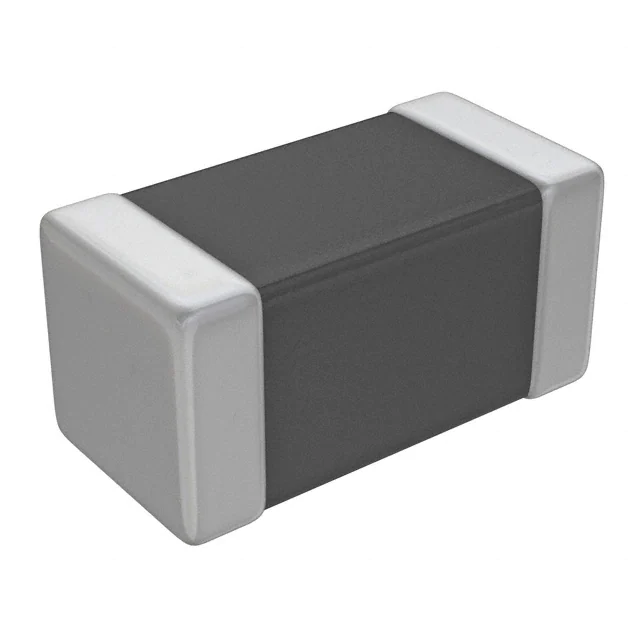

MMZ1608S121ATD25 FERRITE BEAD 120 OHM 0603 1LN TDK Corporation	10,087	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	120 Ohms @ 100 MHz	500mA	150mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
MMZ1608S102ATD25 FERRITE BEAD 1 KOHM 0603 1LN TDK Corporation	12,342	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	1 kOhms @ 100 MHz	400mA	500mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
MMZ1608Q471BTD25 FERRITE BEAD 470 OHM 0603 1LN TDK Corporation	11,453	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	470 Ohms @ 100 MHz	300mA	700mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
MMZ1005B800CT000 FERRITE BEAD 80 OHM 0402 1LN TDK Corporation	13,753	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	80 Ohms @ 100 MHz	450mA	200mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005Y102CT000 FERRITE BEAD 1 KOHM 0402 1LN TDK Corporation	14,073	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	1 kOhms @ 100 MHz	200mA	700mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005Y241CT000 FERRITE BEAD 240 OHM 0402 1LN TDK Corporation	14,106	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	240 Ohms @ 100 MHz	300mA	260mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005D241CT000 FERRITE BEAD 240 OHM 0402 1LN TDK Corporation	14,253	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	240 Ohms @ 100 MHz	200mA	900mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005Y601CT000 FERRITE BEAD 600 OHM 0402 1LN TDK Corporation	10,260	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	600 Ohms @ 100 MHz	250mA	540mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005S121HT000 FERRITE BEAD 120 OHM 0402 1LN TDK Corporation	13,054	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-H	Active	Signal Line	1	120 Ohms @ 100 MHz	700mA	130mOhm	-	-55°C ~ 125°C	Surface Mount	-	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005B121CT000 FERRITE BEAD 120 OHM 0402 1LN TDK Corporation	10,971	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	120 Ohms @ 100 MHz	400mA	250mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005S121CT000 FERRITE BEAD 120 OHM 0402 1LN TDK Corporation	10,563	0.10	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	120 Ohms @ 100 MHz	500mA	220mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
