Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
742863160 FERRITE BEAD 600 OHM 0603 1LN Würth Elektronik	10,499	0.23	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF HF	Active	Signal Line	1	600 Ohms @ 100 MHz	500mA	350mOhm	-	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
742863147 FERRITE BEAD 470 OHM 0603 1LN Würth Elektronik	13,624	0.23	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF HF	Active	Signal Line	1	470 Ohms @ 100 MHz	500mA	320mOhm	-	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
742792118 FERRITE BEAD 600 OHM 1206 1LN Würth Elektronik	11,625	0.24	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	600 Ohms @ 100 MHz	2.5A	70mOhm	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
742792113 FERRITE BEAD 120 OHM 1206 1LN Würth Elektronik	12,253	0.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	120 Ohms @ 100 MHz	3A	30mOhm	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
74279215 FERRITE BEAD 80 OHM 1206 1LN Würth Elektronik	11,390	0.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	80 Ohms @ 100 MHz	3A	30mOhm	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
742792121 FERRITE BEAD 300 OHM 1206 1LN Würth Elektronik	10,193	0.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	300 Ohms @ 100 MHz	3A	60mOhm	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
742792114 FERRITE BEAD 50 OHM 1206 1LN Würth Elektronik	11,797	0.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	50 Ohms @ 100 MHz	3A	25mOhm	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
74279218 FERRITE BEAD 600 OHM 1206 1LN Würth Elektronik	13,403	0.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	600 Ohms @ 100 MHz	2A	100mOhm	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
74279220601 FERRITE BEAD 600 OHM 0805 1LN Würth Elektronik	11,625	0.34	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSB	Active	-	1	600 Ohms @ 100 MHz	2.1A	80mOhm	-	-55°C ~ 125°C	Surface Mount	0.043 (1.10mm)	0.079 L x 0.047 W (2.00mm x 1.20mm)
742792515 FERRITE BEAD 785 OHM 1812 1LN Würth Elektronik	12,917	0.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	785 Ohms @ 100 MHz	3A	50mOhm	-	-55°C ~ 125°C	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
742792510 FERRITE BEAD 70 OHM 1812 1LN Würth Elektronik	14,711	0.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	70 Ohms @ 100 MHz	6A	30mOhm	-	-55°C ~ 125°C	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
742792514 FERRITE BEAD 600 OHM 1812 1LN Würth Elektronik	14,802	0.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	600 Ohms @ 100 MHz	3A	40mOhm	-	-55°C ~ 125°C	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
742792511 FERRITE BEAD 120 OHM 1812 1LN Würth Elektronik	14,880	0.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	120 Ohms @ 100 MHz	3A	50mOhm	-	-55°C ~ 125°C	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)

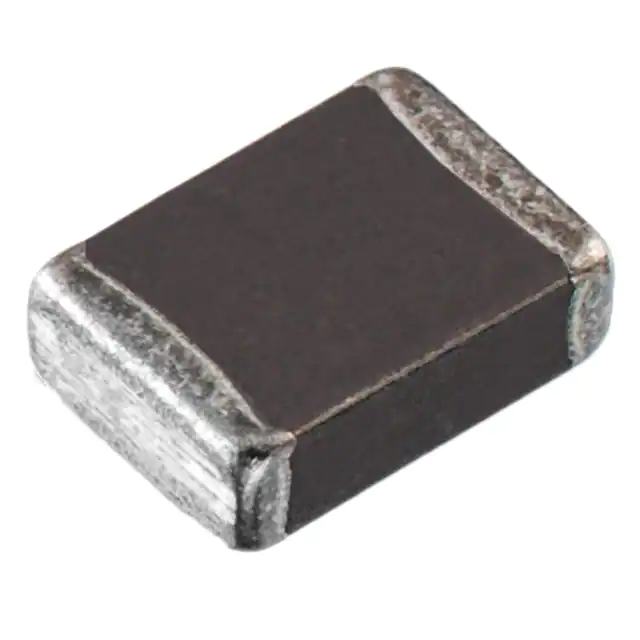

74279252 WE-CBF SMT EMI SUPPRESSION FERRI Würth Elektronik	14,992	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	-	4A	35mOhm	-	-55°C ~ 125°C	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
74279221601 FERRITE BEAD 600 OHM 1206 1LN Würth Elektronik	10,323	0.47	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSB	Active	-	1	600 Ohms @ 100 MHz	2.5A	50mOhm	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)

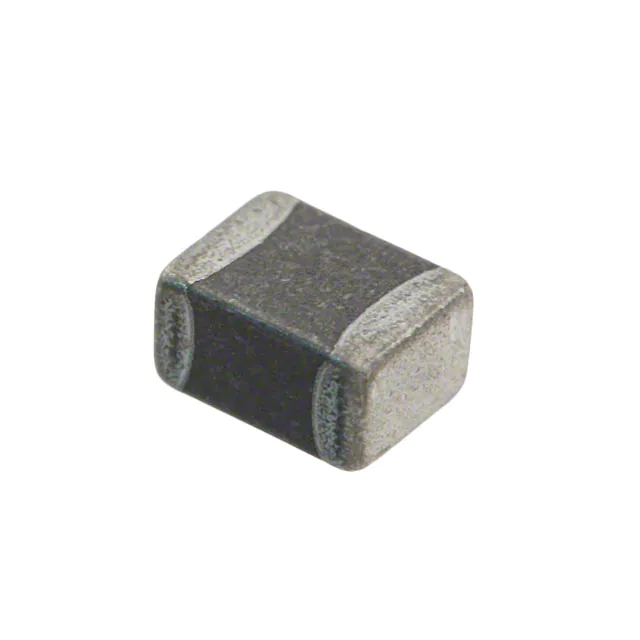

74279223560 FERRITE BEAD 56 OHM 1612 1LN Würth Elektronik	11,638	0.54	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSB	Active	-	1	56 Ohms @ 100 MHz	10A	4mOhm	-	-55°C ~ 125°C	Surface Mount	0.098 (2.48mm)	0.160 L x 0.120 W (4.06mm x 3.05mm)

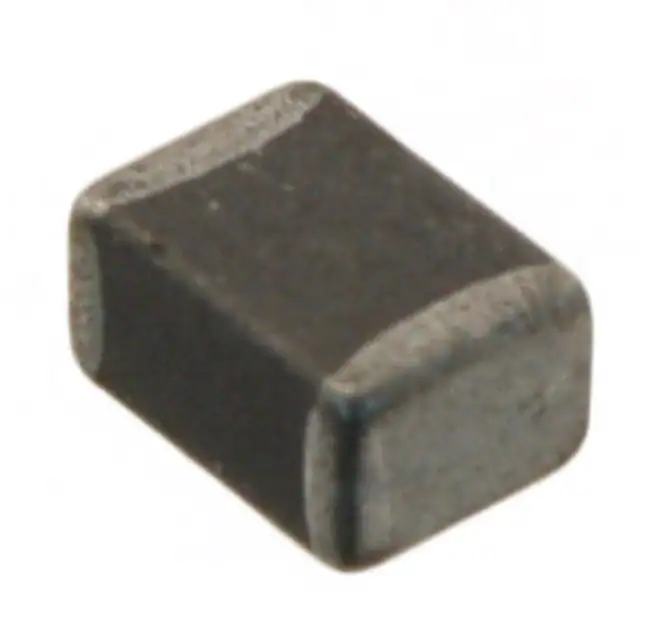

74279226101 FERRITE BEAD 100 OHM 1812 1LN Würth Elektronik	12,224	0.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSB	Active	-	1	100 Ohms @ 100 MHz	8A	6mOhm	-	-55°C ~ 125°C	Surface Mount	0.100 (2.55mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)

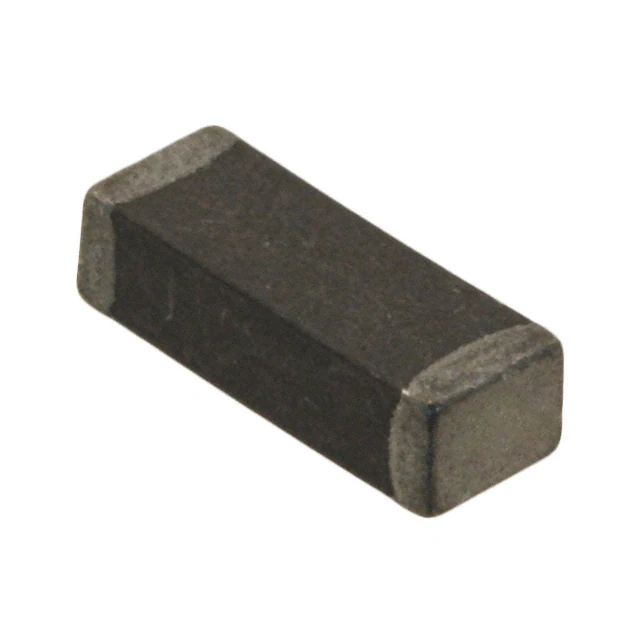

74279225101 FERRITE BEAD 100 OHM 3412 1LN Würth Elektronik	9,661	1.36	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSB	Active	-	1	100 Ohms @ 100 MHz	10A	4mOhm	-	-55°C ~ 125°C	Surface Mount	0.098 (2.48mm)	0.335 L x 0.120 W (8.50mm x 3.05mm)

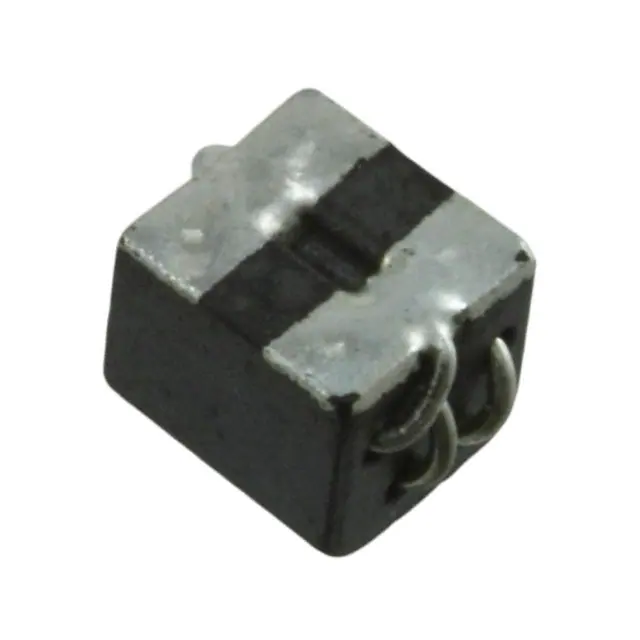

7427511 FERRITE BEAD 416 OHM 2020 1LN Würth Elektronik	9,362	1.50	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SUKW	Active	-	1	416 Ohms @ 100 MHz	5A	11mOhm	-	-40°C ~ 125°C	Surface Mount	0.201 (5.10mm)	0.217 L x 0.197 W (5.50mm x 5.00mm)

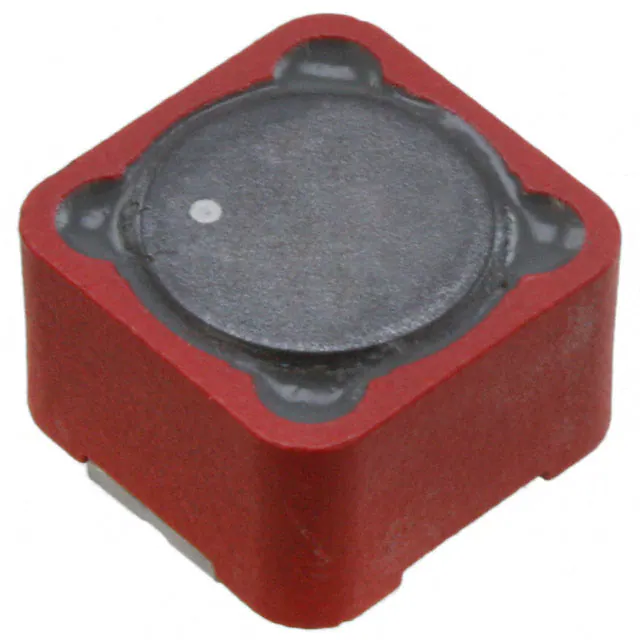

742792901 FERRITE BEAD 1.18 KOHM 2SMD 1LN Würth Elektronik	7,827	2.87	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-PF	Active	-	1	1.18 kOhms @ 100 MHz	10A	9mOhm	-	-40°C ~ 125°C	Surface Mount	0.315 (8.00mm)	0.472 L x 0.472 W (12.00mm x 12.00mm)
