Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension

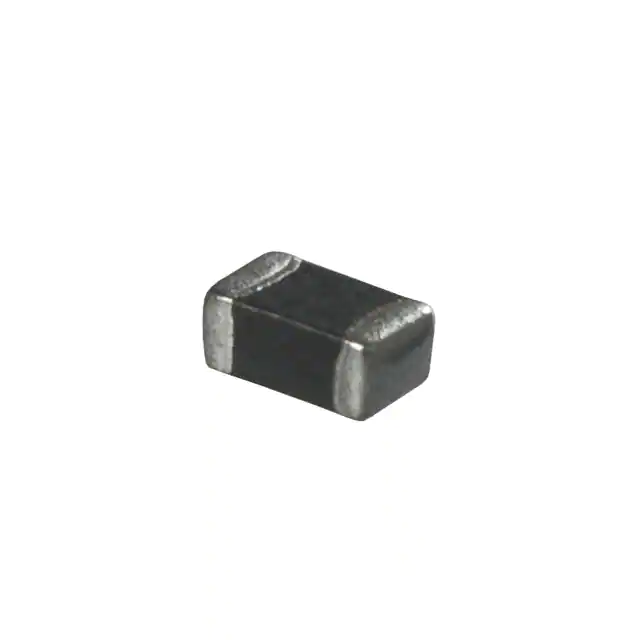

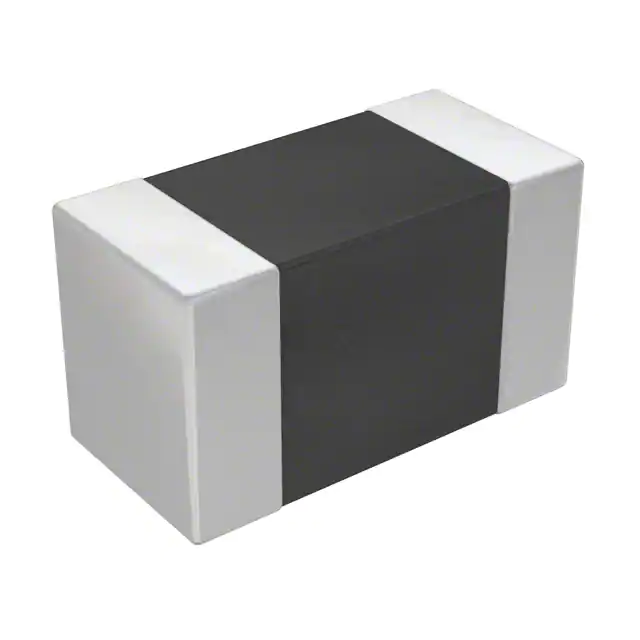

BLM18KG260JH1D FERRITE BEAD 26 OHM 0603 1 LN Murata Electronics	10,505	0.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM18	Active	Power Line	1	26 Ohms @ 100 MHz	4A	7mOhm	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.030 (0.75mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
BLM18KG102BH1D AUTOMOTIVE POWERTRAIN AEC-Q200 S Murata Electronics	10,067	0.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BLM18KG	Active	Power Line	1	1 kOhms @ 100 MHz	800mA	200mOhm	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
BLM18KG300JH1D FERRITE BEAD 30 OHM 0603 1 LN Murata Electronics	13,822	0.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM18	Active	Power Line	1	30 Ohms @ 100 MHz	3.3A	10mOhm	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.030 (0.75mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
BLM18KG221BH1D FERRITE BEAD 220 OHM 0603 1 LN Murata Electronics	13,907	0.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM18	Active	Power Line	1	220 Ohms @ 100 MHz	1.5A	50mOhm	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
BLM18PG181SH1D FERRITE BEAD 180 OHM 0603 1LN Murata Electronics	13,068	0.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM18	Active	Power Line	1	180 Ohms @ 100 MHz	1.5A	90mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
BLM18PG330SH1D FERRITE BEAD 33 OHM 0603 1LN Murata Electronics	13,623	0.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM18	Active	Power Line	1	33 Ohms @ 100 MHz	3A	25mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
PE-0603HFB601ST FERRITE BEAD 600 OHM 0603 1LN Pulse Electronics Network	13,909	0.11	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HFB	Active	Signal Line	1	600 Ohms @ 100 MHz	500mA	350mOhm	-	-40°C ~ 105°C	Surface Mount	0.041 (1.05mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
BLM18KG102SN1D FERRITE BEAD 1 KOHM 0603 1LN Murata Electronics	13,675	0.10	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BLM18KG	Active	Power Line	1	1 kOhms @ 100 MHz	1A	200mOhm	-	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
BLM18KG102SZ1D FERRITE BEAD 1 KOHM 0603 1LN Murata Electronics	11,651	0.10	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BLM18KG	Active	Power Line	1	1 kOhms @ 100 MHz	1A	200mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)

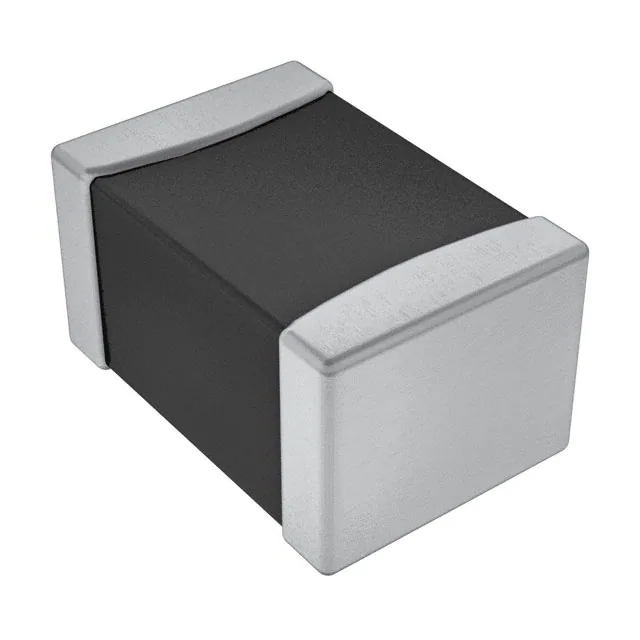

ILHB0805ER300V FERRITE BEAD 30 OHM 0805 1LN Vishay Dale	12,229	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ILHB	Active	-	1	30 Ohms @ 100 MHz	6A	15mOhm	-	-55°C ~ 125°C	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
ILHB0805ER251V FERRITE BEAD 250 OHM 0805 1LN Vishay Dale	11,195	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ILHB	Active	-	1	250 Ohms @ 100 MHz	3A	40mOhm	-	-55°C ~ 125°C	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
ILBB0402ER121V FERRITE BEAD 120 OHM 0402 1LN Vishay Dale	14,285	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ILBB-0402	Active	-	1	120 Ohms @ 100 MHz	300mA	450mOhm	-	-55°C ~ 125°C	Surface Mount	0.024 (0.60mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
ILBB0805ER152V FERRITE BEAD 1.5 KOHM 0805 1LN Vishay Dale	12,844	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ILBB-0805	Active	-	1	1.5 kOhms @ 100 MHz	100mA	400mOhm	-	-55°C ~ 125°C	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
BLM18KG102SH1D FERRITE BEAD 1 KOHM 0603 1LN Murata Electronics	11,364	0.10	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BLM18KG	Active	Power Line	1	1 kOhms @ 100 MHz	1A	200mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
MMZ0603S601HT000 FERRITE BEAD 600 OHM 0201 1LN TDK Corporation	13,287	0.13	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-H	Active	Signal Line	1	600 Ohms @ 100 MHz	280mA	750mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
FBMJ1608HM180NTR FERRITE BEAD 18 OHM 0603 1LN Taiyo Yuden	12,343	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FB	Active	Power Line	1	18 Ohms @ 100 MHz	7.5A	4mOhm	-	-40°C ~ 125°C	Surface Mount	0.039 (1.00mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
FBMJ1608HM230NT FERRITE BEAD 23 OHM 0603 1LN Taiyo Yuden	11,857	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FB	Active	Power Line	1	23 Ohms @ 100 MHz	4A	7mOhm	-	-40°C ~ 125°C	Surface Mount	0.039 (1.00mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
HZ0603B751R-10 FERRITE BEAD 750 OHM 0603 1LN Laird-Signal Integrity Products	12,253	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	0603	Active	Power, Signal Line	1	750 Ohms @ 100 MHz	200mA	600mOhm	-	-40°C ~ 125°C	Surface Mount	0.031 (0.80mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
BLM21PG221SZ1D FERRITE BEAD 220 OHM 0805 1LN Murata Electronics	10,698	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BLM	Active	Power Line	1	220 Ohms @ 100 MHz	2A	45mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
BLM21PG600SZ1D FERRITE BEAD 60 OHM 0805 1LN Murata Electronics	11,732	0.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM21	Active	Power Line	1	-	3.5A	20mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
