| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCJ6V0CATVS DIODE 6VWM 10.3VC SMC |
11,381 | 0.37 |
RFQ |
Datasheet |
DO-214AB, SMC | Bulk | - | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 145.6A | 1500W (1.5kW) | No | General Purpose | - | - | Surface Mount |
|
ESD133B1W01005E6327XTSA1TVS DIODE 5.5VWM 13VC P/WLL-2-2 |
11,476 | 0.37 |
RFQ |
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5.5V | 6.5V | 13V | 3A (8/20µs) | 21W | No | DVI, HDMI, Telecom, USB | 0.2pF @ 1MHz | -55°C ~ 125°C (TA) | Surface Mount |
|
PE4205M1Q_R1_00001HI-SURGE ESD PROTECTION |
13,236 | 0.37 |
RFQ |
2-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6V | 13.5V | 25A (8/20µs) | - | No | General Purpose | 250pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
PE4207M1Q_R1_00001HI-SURGE ESD PROTECTION |
11,755 | 0.37 |
RFQ |
2-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 7V (Max) | 7.8V | 13.5V | 21A (8/20µs) | - | No | General Purpose | 200pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
P4HE13A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
14,067 | 0.37 |
RFQ |
Datasheet |
SOD-123H | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
P4HE5.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
10,070 | 0.37 |
RFQ |
Datasheet |
SOD-123H | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
PE3324C2A_R1_00001ESD PROTECTION |
13,151 | 0.37 |
RFQ |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 24V (Max) | 26.5V | 45V | - | - | No | General Purpose | 30pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
PJSOT05C-03_R1_00001STANDARD CAPACITANCE TVS ARRAY |
10,546 | 0.37 |
RFQ |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 6V | 12.6V | 21A (8/20µs) | 250W | No | General Purpose | 250pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | Surface Mount | |
|
SMCJ40ATVS DIODE 40VWM 64.5VC |
13,277 | 0.37 |
RFQ |
Datasheet |
DO-214AB (SMC) | Tape & Reel (TR) | SMCJ | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 23.26A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | Surface Mount |
|
|
SMCJ8V5CATVS DIODE 8.5VWM 14.4VC SMC |
14,748 | 0.38 |
RFQ |
Datasheet |
DO-214AB, SMC | Bulk | - | Active | Zener | - | 1 | 8.5V | 9.44V | 14.4V | 104.2A | 1500W (1.5kW) | No | General Purpose | - | - | Surface Mount |
|
|
SMCJ7V5CATVS DIODE 7.5VWM 12.9VC SMC |
13,909 | 0.38 |
RFQ |
Datasheet |
DO-214AB, SMC | Bulk | - | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | - | Surface Mount |
|
|
SMCJ9V0CATVS DIODE 9VWM 15.4VC SMC |
10,300 | 0.38 |
RFQ |
Datasheet |
DO-214AB, SMC | Bulk | - | Active | Zener | - | 1 | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | General Purpose | - | - | Surface Mount |
|
P6KE6.8AT/RTVS DIODE 5.8VWM 10.5VC DO15 |
14,775 | 0.38 |
RFQ |
Datasheet |
DO-204AC, DO-15, Axial | Tape & Reel (TR) | P6KE | Active | Zener | 1 | - | 5.8V | 6.45V | 10.5V | 57A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|
PEC1605M1Q-AU_R1_000A1DFN 2L, TVS/ESD |
12,977 | 0.38 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PEC1605M1Q-AU | Active | Zener | - | 1 | 5.5V (Max) | 6.8V | 14V | 2A (8/20µs) | - | No | Automotive | 0.6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PJEC3V0V1WS_R1_00001VERY LOW CAPACITANCE TVS/ESD PRO |
10,560 | 0.38 |
RFQ |
SC-90, SOD-323F | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 3V (Max) | 4.75V | 10.5V (Typ) | 5A (8/20µs) | - | No | General Purpose | 0.9pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount | |
|

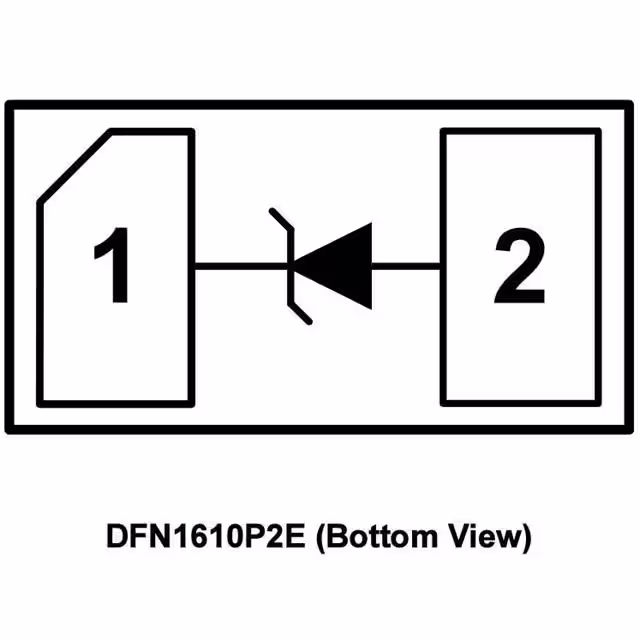

AZ9720-01FTVS DEVICE DFN1610P2E 1-CH 20V |
13,868 | 0.38 |
RFQ |
2-UDFN | Strip | - | Active | Zener | 1 | - | 20V (Max) | 22.8V | - | - | - | Yes | Automotive | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

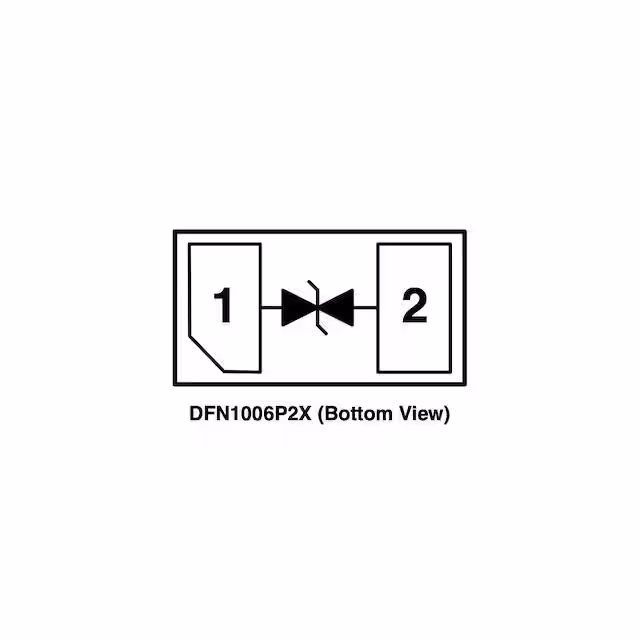

AZ9812-01FTVS DEVICE DFN1006P2X 1-CH 12V |
12,662 | 0.38 |
RFQ |
0402 (1006 Metric) | Strip | - | Active | Zener | - | 1 | 12V (Max) | 13.5V | - | - | - | No | Automotive | - | -55°C ~ 125°C (TC) | Surface Mount | |
|
AZ9817-01FESD PROTECTION 1-CH 17V |
11,705 | 0.38 |
RFQ |
0402 (1006 Metric) | Strip | - | Active | Zener | - | 1 | 17V (Max) | 18.7V | - | - | - | No | Automotive | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

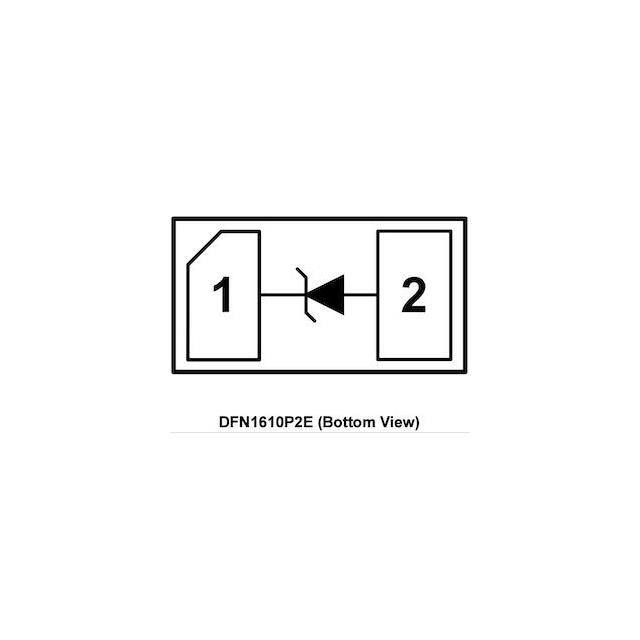

AZ9724-01FTVS DEVICE DFN1610P2E 1-CH 24V |
10,539 | 0.38 |
RFQ |
2-UDFN | Strip | - | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | Yes | Automotive | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

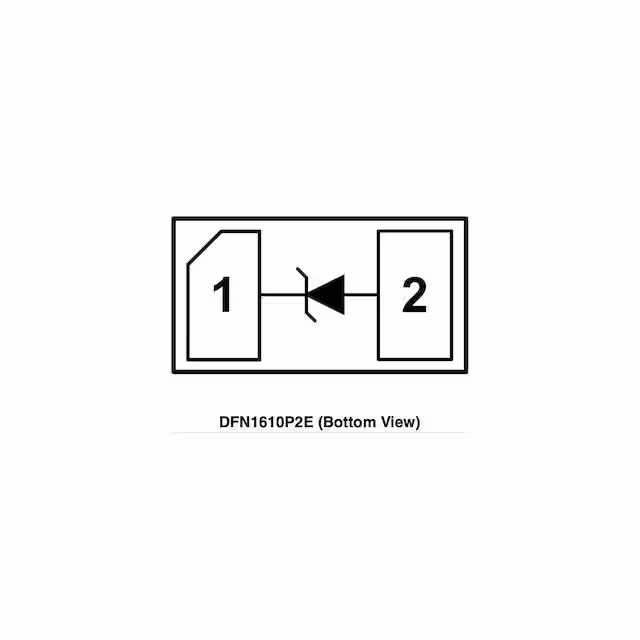

AZ9712-01FTVS DEVICE DFN1610P2E 1-CH 12V |
12,580 | 0.38 |
RFQ |
2-UDFN | Strip | - | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | - | - | Yes | Automotive | - | -55°C ~ 125°C (TC) | Surface Mount |
