| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJE24VM5FN2_R1_00001ESD PROTECTION |
10,079 | 0.35 |
RFQ |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 24V (Max) | 25V | 40V | 1A (8/20µs) | 100W | No | General Purpose | 50pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount | |
|
PJSD08TS_R1_00001SINGLE LINE TVS DIODE FOR ESD PR |
13,995 | 0.35 |
RFQ |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 8V (Max) | 8.5V | 13V | 5A (8/20µs) | 120W | No | General Purpose | 70pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | Surface Mount | |
|
|
PJSD05TS-02_R1_00001SINGLE LINE TVS DIODE FOR ESD PR |
14,738 | 0.35 |
RFQ |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6V | 14V | 18A | 200W | No | General Purpose | 160pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | Surface Mount | |
|
|
PJSD03TS_R1_00001SINGLE LINE TVS DIODE FOR ESD PR |
11,703 | 0.35 |
RFQ |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 3.3V (Max) | 4V | 6.5V | 5A (8/20µs) | 120W | No | General Purpose | 200pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | Surface Mount | |
|
P4KE400ABULKTVS DIODE 342VWM 548VC DO41 |
14,304 | 0.35 |
RFQ |
Datasheet |
DO-204AL, DO-41, Axial | Bag | P4KE | Active | Zener | 1 | - | 342V | 380V | 548V | 730mA | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|
|
P6KE62ABULKTVS DIODE 53VWM 85VC DO15 |
11,411 | 0.35 |
RFQ |
Datasheet |
DO-204AC, DO-15, Axial | Bag | P6KE | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.1A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|

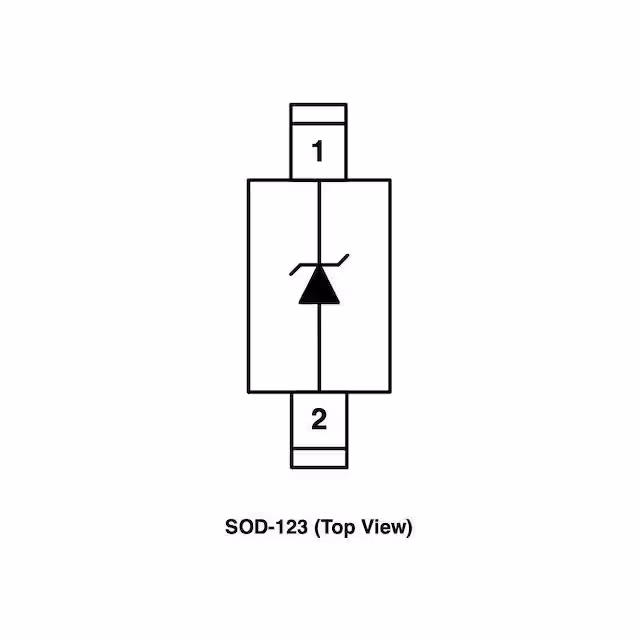

AZ3003-01GTVS SURGE PROTECTOR 1-CH 3.3V |
14,142 | 0.35 |
RFQ |
SOD-123 | Strip | - | Active | Zener | 1 | - | 3.3V (Max) | 4V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | Surface Mount | |
|

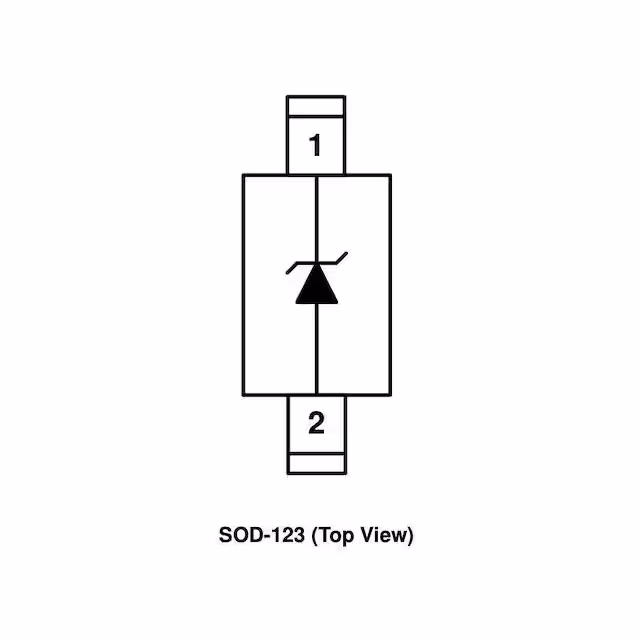

AZ9424-01GTVS DEVICE SOD123 1-CH 24V |
11,478 | 0.35 |
RFQ |
SOD-123 | Strip | - | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | Yes | Automotive | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

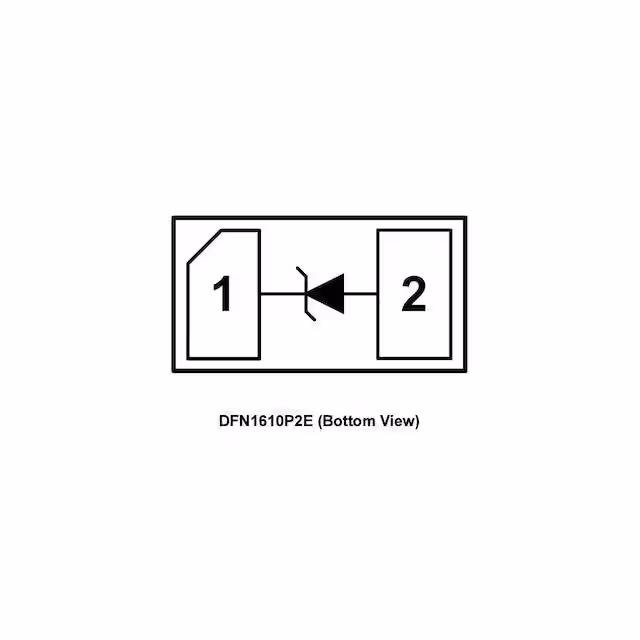

AZ4512-01FTVS DEVICE HIGH VOLTAGE 1-CH 12V |
14,967 | 0.35 |
RFQ |
2-UDFN | Strip | - | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | Surface Mount | |
|

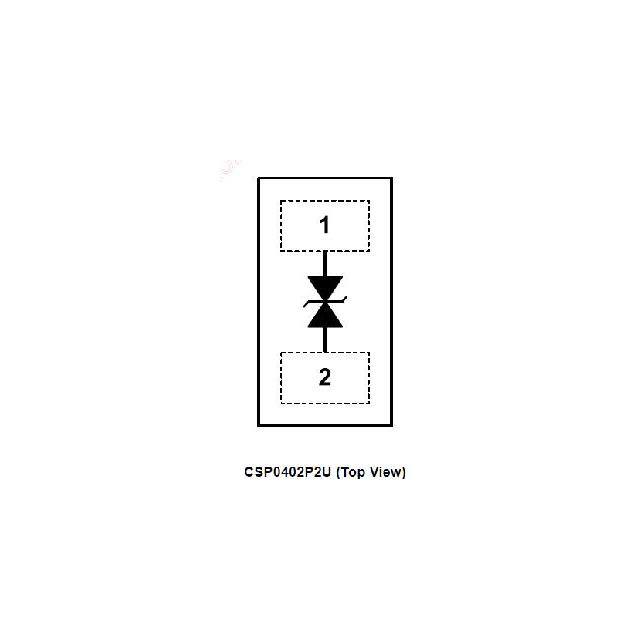

AZ4C36-01BTVS DEVICE 1-CHANNEL 36V |
10,399 | 0.35 |
RFQ |
2-XFBGA, CSPBGA | Strip | - | Active | Zener | - | 1 | 36V (Max) | 40V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | Surface Mount | |
|
AZ4718-01FTVS DEVICE 1-CHANNEL 18V |
12,094 | 0.35 |
RFQ |
3-UDFN Exposed Pad | Strip | - | Active | Zener | 1 | - | 18V (Max) | 20V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

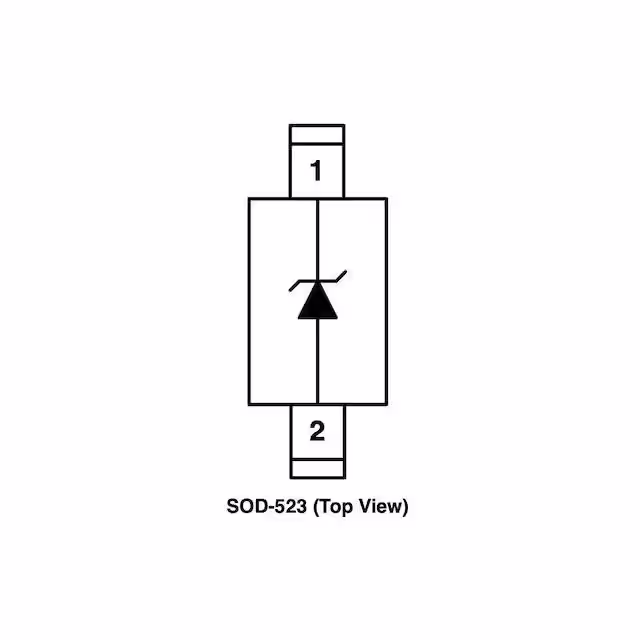

AZ5015-01HTVS DEVICE 1-CHANNEL 5V |
14,275 | 0.35 |
RFQ |
SC-79, SOD-523 | Strip | - | Active | Zener | 1 | - | 5V (Max) | 5.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | Surface Mount | |
|

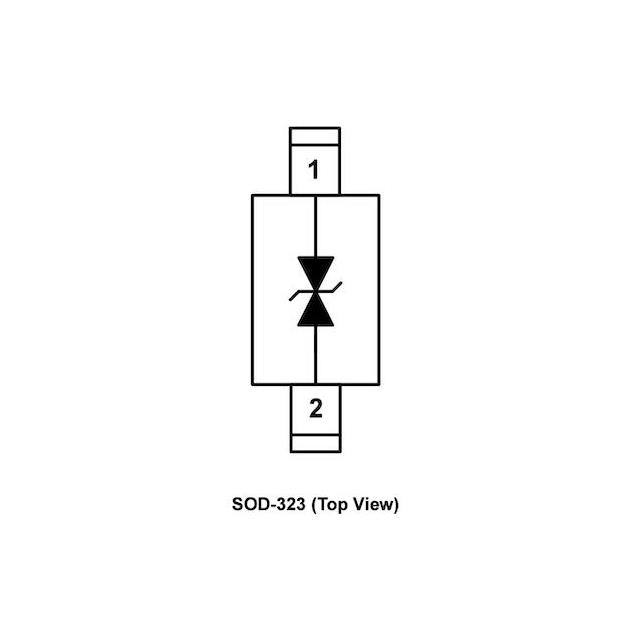

AZ4612-01LTVS DEVICE HIGH VOLTAGE 1-CH 12V |
10,095 | 0.35 |
RFQ |
SC-76, SOD-323 | Strip | - | Active | Zener | - | 1 | 12V (Max) | 13.5V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

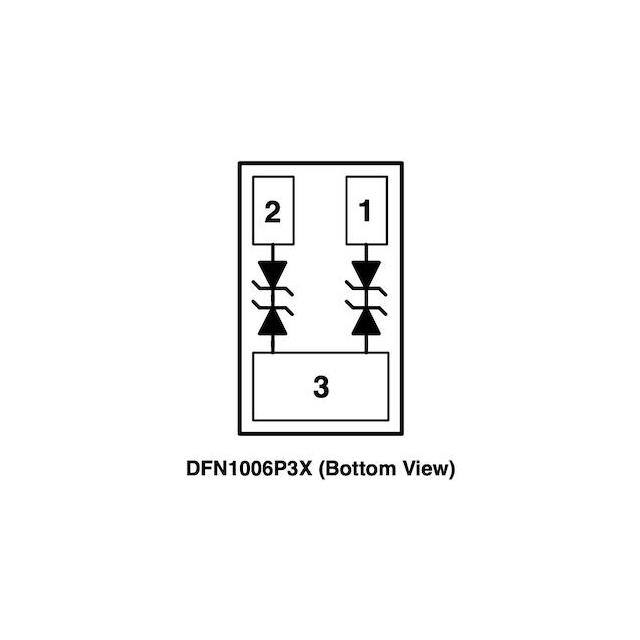

AZ5125-02FTVS DEVICE 2-CHANNEL 5V |
12,648 | 0.35 |
RFQ |
3-UDFN | Strip | - | Active | Zener | - | 2 | 5V (Max) | 5.7V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | Surface Mount | |
|

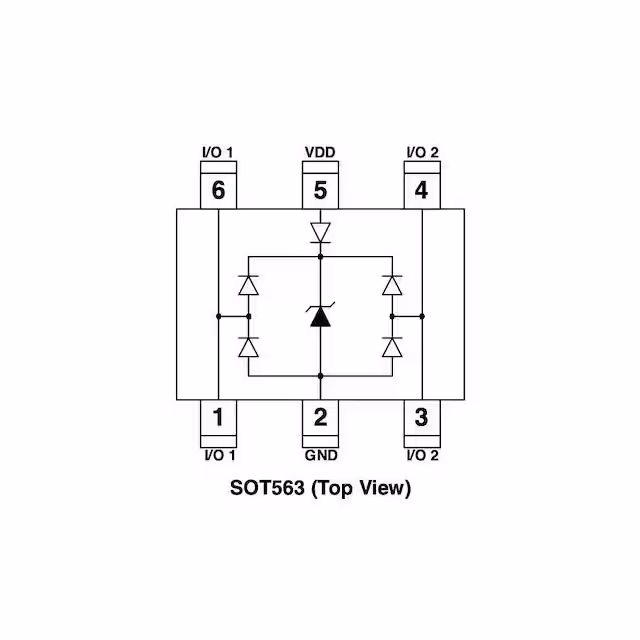

AZC299-02RLOW CAP ESD PROTECTION 2-CH 5V |
12,955 | 0.35 |
RFQ |
SOT-563, SOT-666 | Strip | - | Active | Zener | 2 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -40°C ~ 125°C (TC) | Surface Mount | |
|

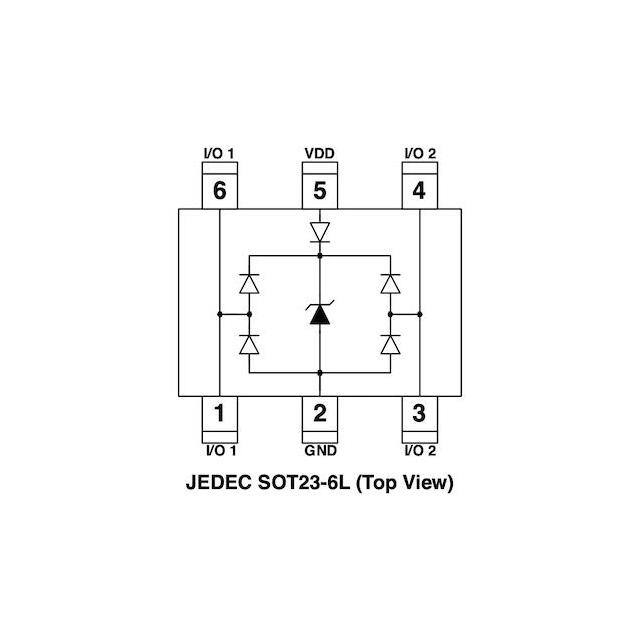

AZC299-02SLOW CAP ESD PROTECTION 2-CH 5V |
11,833 | 0.35 |
RFQ |
SOT-23-6 | Strip | - | Active | Zener | 2 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -40°C ~ 125°C (TC) | Surface Mount | |
|

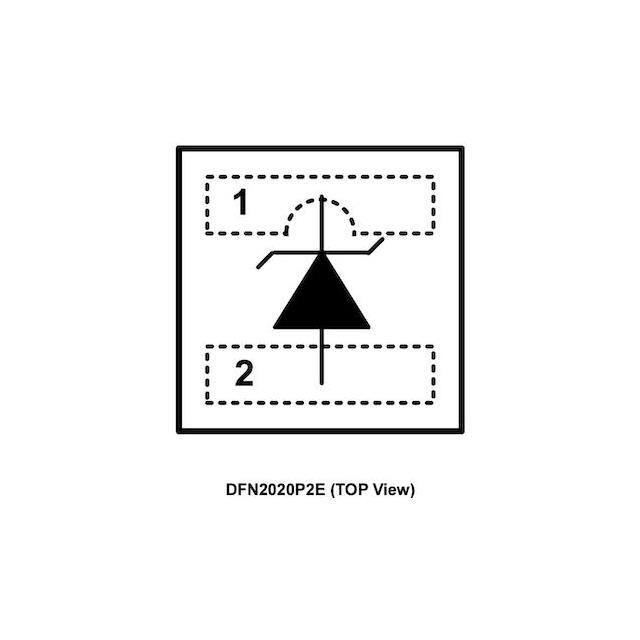

AZ4020-01FTVS DEVICE HIGH VOLTAGE 1-CH 20V |
10,299 | 0.35 |
RFQ |
2-UDFN | Strip | - | Active | Zener | 1 | - | 20V (Max) | 22.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | Surface Mount | |
|

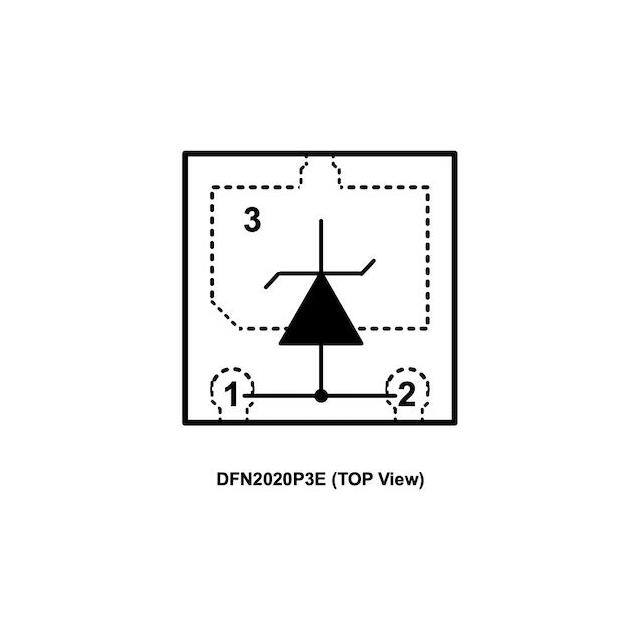

AZ4714-01FTVS DEVICE 1-CHANNEL 14V |
10,998 | 0.35 |
RFQ |
3-UDFN Exposed Pad | Strip | - | Active | Zener | 1 | - | 14V (Max) | 15.5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

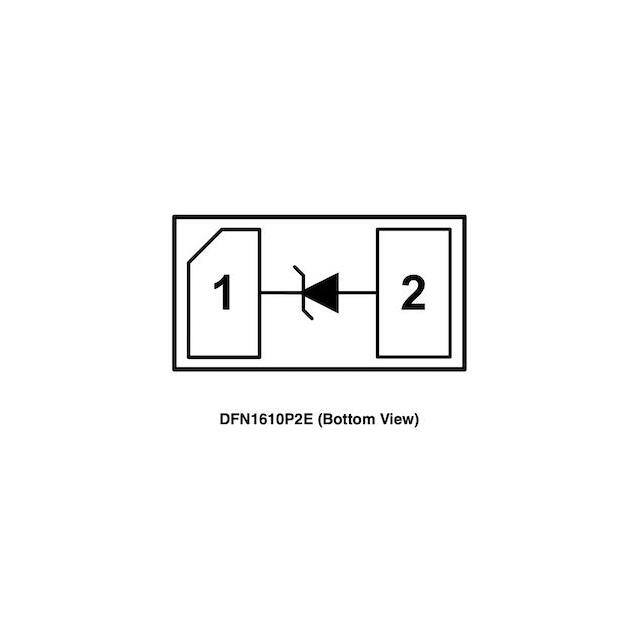

AZ4514-01FTVS DEVICE HIGH VOLTAGE 1-CH 14V |
14,091 | 0.35 |
RFQ |
2-UDFN | Strip | - | Active | Zener | 1 | - | 14V (Max) | 15.5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | Surface Mount | |
|

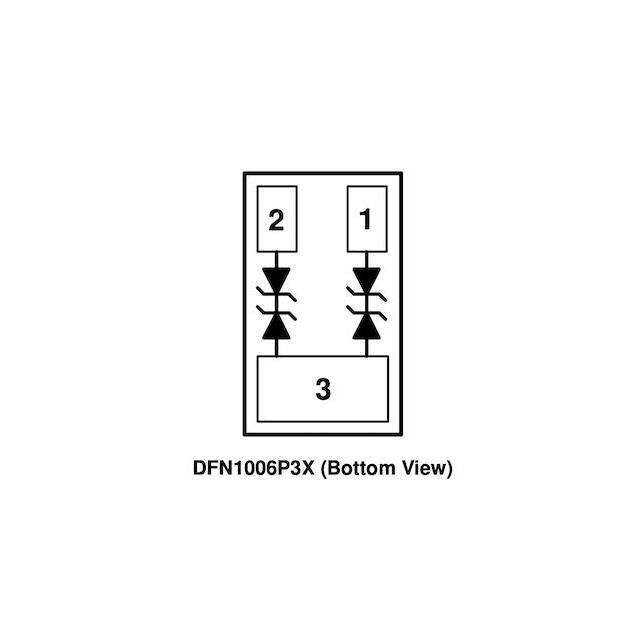

AZ5123-02FTVS DEVICE 2-CHANNEL 3.3V |
12,464 | 0.35 |
RFQ |
3-UDFN | Strip | - | Active | Zener | - | 2 | 3.3V (Max) | 3.8V | - | - | - | No | General | - | -40°C ~ 85°C (TC) | Surface Mount |
