| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIL922BAC IN-DARLINGTON OUT OPTOCOUPLER |
14,460 | 0.99 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPS5908ADCSTRANSISTOR OUTPUT OPTOCOUPLER |
8,040 | 1.04 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HCPL4503SVMLOGIC IC OUTPUT OPTOCOUPLER, 500 |
5,561 | 1.09 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -40°C ~ 100°C | Surface Mount |
|
TIL922AC IN-DARLINGTON OUT OPTOCOUPLER |
8,684 | 1.13 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FOD250LLOGIC IC OUTPUT OPTOCOUPLER |
3,465 | 1.14 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 15% @ 16mA | 50% @ 16mA | 1µs, 1µs (Max) | - | DC | Transistor with Base | 7V | 8mA | 1.45V | 25 mA | - | -40°C ~ 85°C | Through Hole |
|
|
HCPL2530WVLOGIC IC OUTPUT OPTOCOUPLER |
3,665 | 1.14 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 2 | 2500Vrms | 7% @ 16mA | 50% @ 16mA | 450ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
PS2514L-1Y-AOPTOISOLATOR 5KV DARL 4SMD |
6,739 | 1.17 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 50% @ 5mA | 200% @ 5mA | - | 15µs, 15µs | DC | Darlington | 40V | 20mA | 1.1V | 30 mA | 350mV | -55°C ~ 100°C | Surface Mount |
|
HCPL2530SDVLOGIC IC OUTPUT OPTOCOUPLER |
3,929 | 1.21 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 2 | 2500Vrms | 7% @ 16mA | 50% @ 16mA | 450ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
TIL300DCSOPTOELECTRONIC DEVICE |
7,642 | 1.38 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HCPL0530LOGIC IC OUTPUT OPTOCOUPLER |
3,469 | 1.79 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 2500Vrms | 7% @ 16mA | 50% @ 16mA | 450ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.45V | 25 mA | - | -40°C ~ 85°C | Surface Mount |
|
CPC1303GOPTOISOLATOR 5KV TRANSISTOR 4DIP |
7,996 | 1.87 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 200% @ 200µA | 2500% @ 200µA | 2µs, 8µs | - | DC | Transistor | 30V | - | 1.2V | 50 mA | 500mV | -40°C ~ 85°C | Through Hole |
|
NTE3222OPTOCOUPLER-NPN TRANS |
7,053 | 1.98 |
RFQ |
Datasheet |
Bag | - | Active | 1 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
NTE3045OPTOISOLATOR/DARL |
6,278 | 2.59 |
RFQ |
Datasheet |
Bag | - | Active | 1 | 7500Vpk | - | - | 3.5µs, 95µs | 1µs, 2µs | DC | Darlington | 80V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
NTE3098OPTO-ISOLATOR TRANS OUT |
5,233 | 2.64 |
RFQ |
Datasheet |
Bag | - | Active | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 20 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
NTE3096OPTOCOUPLER/TRANSISTOR |
7,331 | 2.70 |
RFQ |
Datasheet |
Bag | - | Active | 1 | 7500VAC | 50% @ 1mA | - | 20µs, 20µs (Max) | - | DC | Transistor | 30V | 100mA | 1.1V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
|
PS8501L1-AXOPTOISO 5KV TRANS W/BASE 8DIP |
5,957 | 2.93 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
PS8502L1-V-AXOPTOISOLATOR 5KV TRANS 8DIP |
7,791 | 3.07 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor | 35V | 8mA | 1.7V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
NTE3043OPTOISOLATOR/TRANS |
6,083 | 3.10 |
RFQ |
Datasheet |
Bag | - | Active | 1 | 4000VDC | 70% @ 10mA | 210% @ 10mA | 4.5µs, 3.5µs | - | DC | Transistor | 80V | - | 1.5V (Max) | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|

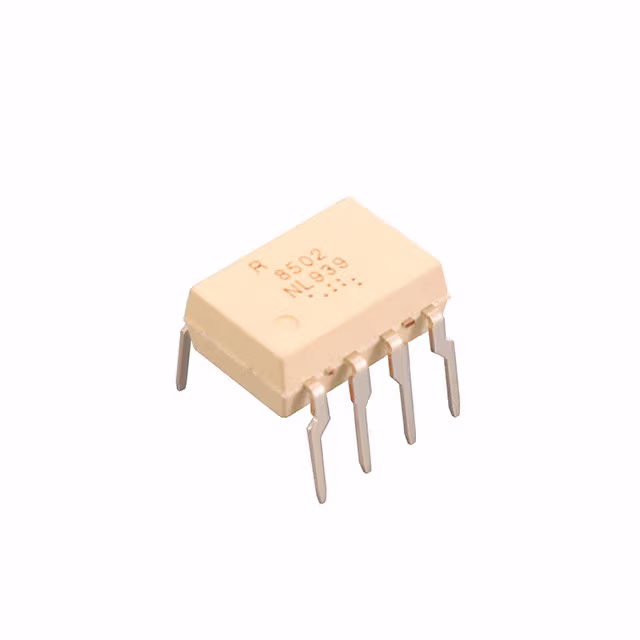

PS8502-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
7,045 | 3.56 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 15% @ 16mA | - | - | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
PS8502L3-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
6,976 | 3.59 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 15% @ 16mA | - | - | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
