| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS2561AL-1-AOPTOISOLATOR 5KV TRANS 4SMD |
12,320 | 0.68 |
RFQ |
Datasheet |
Tube | NEPOC | Not For New Designs | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
CNY17-4OPTOISO 5KV TRANS W/BASE 6DIP |
12,926 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-4OPTOISOLTR 5KV TRANSISTOR 6-DIP |
12,671 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-1OPTOISOLTR 5KV TRANSISTOR 6-DIP |
14,578 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
SFH6156-1OPTOISOLATOR 5.3KV TRANS 4SMD |
14,876 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
PS2501L-1-H-AOPTOISOLATOR 5KV TRANS 4SMD |
10,647 | 0.80 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2501L-1-K-AOPTOISOLATOR 5KV TRANS 4SMD |
13,609 | 0.80 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 300% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2561L-1-AOPTOISOLATOR 5KV TRANS 4SMD |
11,105 | 0.80 |
RFQ |
Datasheet |
Tube | NEPOC | Not For New Designs | 1 | 5000Vrms | 80% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
6N138SOPTOISO 5KV DARL W/BASE 8SMD |
14,699 | 0.81 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 50mA | 1.1V | 20 mA | - | -20°C ~ 85°C | Surface Mount |
|
SFH617A-2X006OPTOISOLATOR 5.3KV TRANS 4DIP |
8,779 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
CNY74-2HOPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
5,607 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.3V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
SFH610A-2OPTOISOLATOR 5.3KV TRANS 4-DIP |
6,699 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ACPL-827-00CEOPTOISOLATOR 5KV 2CH TRANS 8DIP |
6,675 | 1.05 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
H11AA4MOPTOISO 4.17KV TRANS W/BASE 6DIP |
8,277 | 1.05 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 50mA | 1.17V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
PS2502-1-AOPTOISOLATOR 5KV DARL 4DIP |
6,362 | 1.13 |
RFQ |
Datasheet |
Tube | NEPOC | Not For New Designs | 1 | 5000Vrms | 200% @ 1mA | - | - | 100µs, 100µs | DC | Darlington | 40V | 200mA | 1.17V | 80 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
PS2502L-1-K-AOPTOISOLATOR 5KV DARL 4SMD |
6,979 | 1.13 |
RFQ |
Tube | NEPOC | Active | 1 | 5000Vrms | 2000% @ 1mA | - | - | 100µs, 100µs | DC | Darlington | 40V | 200mA | 1.17V | 80 mA | 1V | -55°C ~ 100°C | Surface Mount | |
|

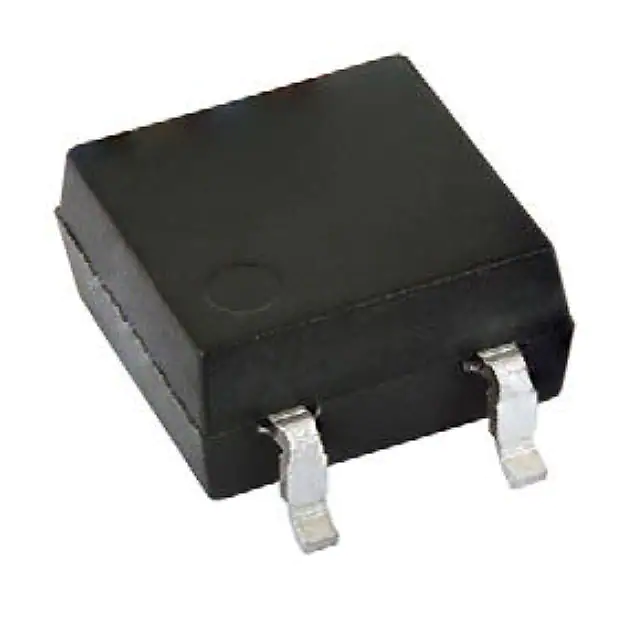

VOMA618A-3X001TOPTOCOUPLER-PHOTO-TRANSISTOR DET |
5,808 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | VOMA618A | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 6.8µs, 2.3µs | 1.8µs, 1.7µs | DC | Transistor | 80V | 50mA | 1.28V | 20 mA | 400mV | -40°C ~ 110°C | Surface Mount |
|
MOCD217VMOPTOISO 2.5KV 2CH TRANS 8SOIC |
8,104 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2500Vrms | 100% @ 1mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor | 30V | 150mA | 1.05V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
QT8514 PIN HIGH POWER PHOTOTRANSISTOR |
8,099 | 1.22 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 350V | 100mA | 1.2V | 80 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
LTV-827OPTOISOLATOR 5KV 2CH TRANS 8-DIP |
10,181 | 0.50 |
RFQ |
Datasheet |
Tube | LTV-8x7 | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 110°C | Through Hole |
