| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
140354245000WL-OCPT OPTOCOUPLER PHOTOTRANSIS |
10,923 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WL-OCPT | Active | 1 | 3750Vrms | 20% @ 1mA | 300% @ 1mA | - | 5µs, 6µs | AC, DC | Transistor | 80V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
140356145400WL-OCPT OPTOCOUPLER PHOTOTRANSIS |
14,276 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WL-OCPT | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
140354245100WL-OCPT OPTOCOUPLER PHOTOTRANSIS |
13,612 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WL-OCPT | Active | 1 | 3750Vrms | 50% @ 1mA | 150% @ 1mA | - | 5µs, 6µs | AC, DC | Transistor | 80V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
140814243100WL-OCPT OPTOCOUPLER PHOTOTRANSIS |
10,234 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WL-OCPT | Active | 1 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 3µs, 4µs | AC, DC | Transistor | 80V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
140356145000WL-OCPT OPTOCOUPLER PHOTOTRANSIS |
10,332 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WL-OCPT | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
VOS627A-X001TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
10,959 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 4µs | 3µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOS628ATOPTOISOLATOR 3.75KV TRANS 4SSOP |
13,798 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 1mA | 600% @ 1mA | 5µs, 8µs | 5µs, 7µs | AC, DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
LTV-214OPTOISOLATOR 3.75KV TRANS 4-SMD |
11,117 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LTV-SX4 | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 3µs, 4µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
TCLT1000OPTOISOLATR 5KV TRANSISTOR 4-SOP |
14,189 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
SFH690BTOPTOISOLATOR 3.75KV TRANS 4-SOP |
12,595 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
4N35-X007TOPTOISO 5KV TRANS W/BASE 6SMD |
10,410 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
TCLT1013OPTOISOLATOR 5KV TRANS SOP-6L4 |
14,264 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
4N33SR2MOPTOISO 4.17KV DARL W/BASE 6SMD |
10,090 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 500% @ 10mA | - | 5µs, 100µs (Max) | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1V | -40°C ~ 100°C | Surface Mount |
|

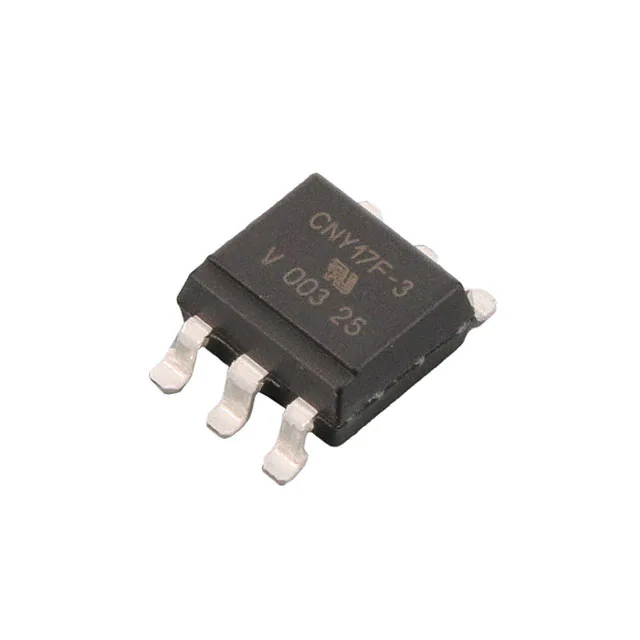

CNY17F-3X007TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
12,660 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
LTV-826OPTOISOLATOR 5KV 2CH TRANS 8-DIP |
13,030 | 0.50 |
RFQ |
Datasheet |
Tube | LTV-826 | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
CNY17-4OPTOISO 5KV TRANS W/BASE 6DIP |
12,169 | 0.50 |
RFQ |
Datasheet |
Tube | CNY17 | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.45V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
LTV-814HOPTOISOLATR 5KV TRANSISTOR 4-DIP |
11,755 | 0.50 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 20% @ 100mA | 80% @ 100mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 80mA | 1.4V | 150 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
CNY17-1OPTOISO 5KV TRANS W/BASE 6DIP |
12,271 | 0.50 |
RFQ |
Datasheet |
Tube | CNY17 | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.45V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
CNY17-2OPTOISO 5KV TRANS W/BASE 6DIP |
11,091 | 0.50 |
RFQ |
Datasheet |
Tube | CNY17 | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.45V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
TCLT1002OPTOISOLATR 5KV TRANSISTOR 4-SOP |
13,642 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
