| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM4152BRIZDGT ISOL 5000VRMS 7CH SPI 20SOIC |
3,052 | 12.02 |
RFQ |
Datasheet |
Tube | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 7 | 4/3 | Unidirectional | 5000Vrms | 25kV/µs | 34Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM5402ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,146 | 13.76 |
RFQ |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM4150BRIZDGT ISOL 5000VRMS 6CH SPI 20SOIC |
4,573 | 13.87 |
RFQ |
Datasheet |
Tube | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 6 | 4/2 | Unidirectional | 5000Vrms | 25kV/µs | 40Mbps | 13ns, 13ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM6202ARIZDGTL ISO 5000VRMS 2CH GP 16SOIC |
3,429 | 14.14 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM5401ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,427 | 14.38 |
RFQ |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
ADM2567EBRNZ3.75KV ISOLATED RS485 25MBPS FD |
4,850 | 14.38 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 1/3 | Unidirectional | 3000Vrms | 250kV/µs | 25Mbps | 25ns, 25ns | - | 4.5ns, 4.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM5200WCRWZDGTL ISO 2500VRMS 2CH GP 16SOIC |
3,966 | 14.56 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
IL 715-3DGTL ISO 2500VRMS 4CH GP 16SOIC |
4,283 | 13.02 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
ADUM6424ABRNZ5DGTL ISO 5KV 4CH GEN PRP 28SOIC |
4,518 | 14.71 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM6423ABRNZ5DGTL ISO 5KV 4CH GEN PRP 28SOIC |
4,740 | 14.71 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|

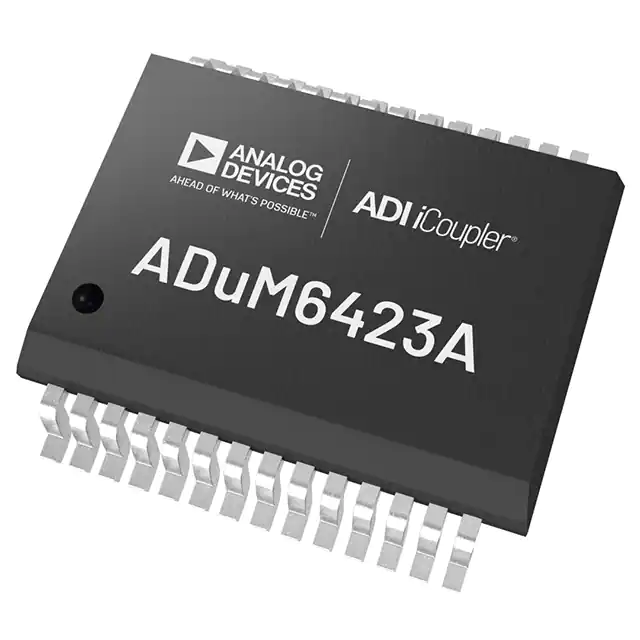

ADUM6423ABRNZ3DGTL ISO 5KV 4CH GEN PRP 28SOIC |
1,146 | 14.71 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM6424ABRNZ3DGTL ISO 5KV 4CH GEN PRP 28SOIC |
2,509 | 14.71 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-091J-500EDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,111 | 19.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
ADM2865EBRNZ5.7KV ISOPWR & ISORS485 25MBPS H |
4,027 | 15.23 |
RFQ |
Tube | ADM2865E | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 1/3 | Unidirectional | 5700Vrms | 250kV/µs | 25Mbps | 25ns, 25ns | - | 4.5ns, 4.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM5400CRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,804 | 15.27 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6202ARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
9,238 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6200ARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,937 | 15.62 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADN4652BRWZDGT ISO 5000VRMS 2CH LVDS 20SOIC |
3,276 | 15.72 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 600Mbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount |
|

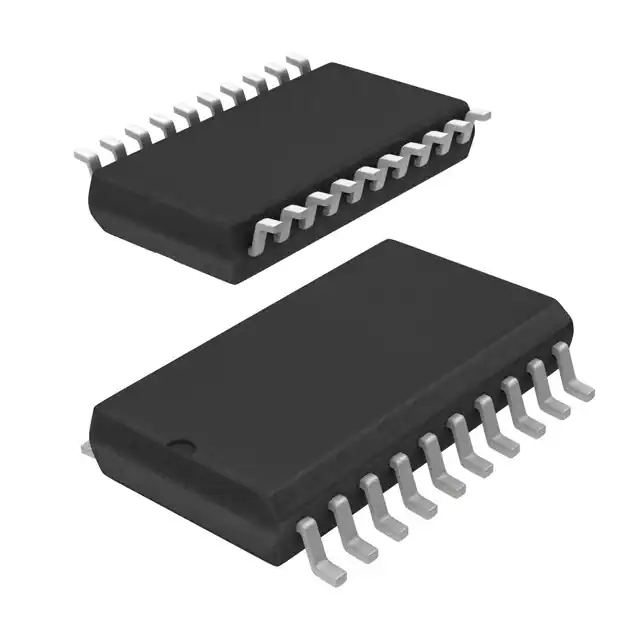

ADUM4165BRIZ5KV 480MBPS USB DIG ISOLATOR HOS |
4,569 | 15.85 |
RFQ |
Datasheet |
Tube | - | Active | Magnetic Coupling | RS232, USB | Yes | 1 | 1/0 | Unidirectional | 5700Vrms | 40kV/µs | 480Mbps | 650ns, 600ns | - | 300ns, 350ns (Max) | 3V ~ 3.6V, 3V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
ADUM4166BRIZ5KV 480MBPS USB DIG ISOLATOR PER |
4,016 | 15.85 |
RFQ |
Datasheet |
Tube | - | Active | Magnetic Coupling | RS232, USB | Yes | 1 | 1/0 | Unidirectional | 5700Vrms | 40kV/µs | 480Mbps | 650ns, 600ns | - | 300ns, 350ns (Max) | 3V ~ 3.6V, 3V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
