| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM2251ARIZDGT ISOL 5000VRMS 2CH I2C 16SOIC |
8,083 | 9.08 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | I²C | No | 2 | 2/1 | Bidirectional, Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | - | 145ns, 85ns | - | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADUM6421ABRNZ5-RLDGTL ISO 5KV 4CH GEN PRP 28SOIC |
3,039 | 13.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM6421ABRNZ3-RLDGTL ISO 5KV 4CH GEN PRP 28SOIC |
1,250 | 13.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM4400ARWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
5,185 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM4401ARWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
6,676 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM2400ARIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
7,824 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM2401ARIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
9,096 | 9.26 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADUM3200WCRZDGTL ISO 2500VRMS 2CH GP 8SOIC |
7,005 | 9.31 |
RFQ |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 45ns, 45ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
|
ADUM6201ARIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
7,741 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ISOW1432DFMRLOW EMISSIONS, 5-KVRMS, 12-MBPS |
7,687 | 8.49 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 100kV/µs (Typ) | 12Mbps | 610ns, 610ns | 40ns | 4ns, 4ns (Max) | 1.71V ~ 1.89V, 2.25V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM5241ARZDGTL ISO 2500VRMS 2CH GP 8SOIC |
5,214 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 70ns, 70ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 4.0V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADM2486BRWZDGT ISO 2.5KV RS422/RS485 16SOIC |
8,010 | 1.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | RS422, RS485 | No | 3 | 2/1 | Bidirectional | 2500Vrms | 25kV/µs | 20Mbps | 55ns, 55ns | 5ns | 5ns, 5ns | 3V, 5V | -40°C ~ 85°C | Surface Mount | |
|
|
ADUM1300WTRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
9,409 | 9.89 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 32ns, 32ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|

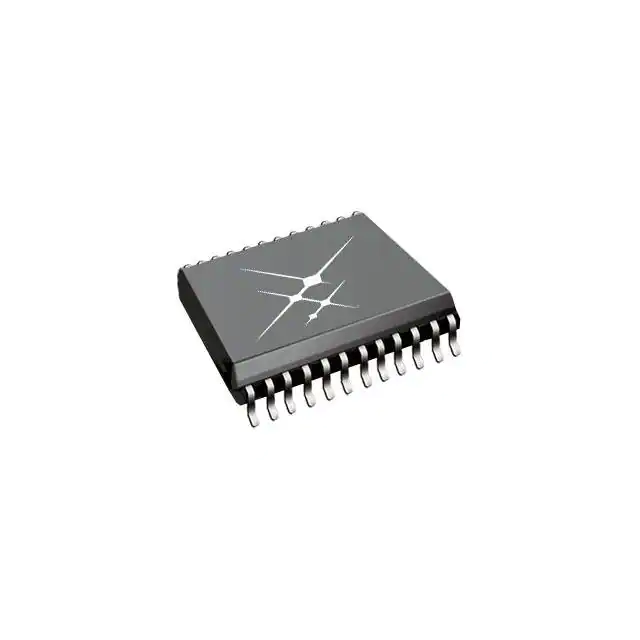

SI88641EC-ISDGTL ISO 5000VRMS 4CH GP 24SOIC |
8,014 | 8.91 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM6210ARSZDGTL ISO 3750VRMS 2CH GP 20SSOP |
4,133 | 10.07 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 3750Vrms | 25kV/µs | 1Mbps | 50ns, 50ns | 10ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM5210CRSZDGTL ISO 2500VRMS 2CH GP 20SSOP |
3,916 | 10.09 |
RFQ |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1281WCRZDGTL ISO 3000VRMS 2CH GP 8SOIC |
6,845 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM3150ARSZDGT ISOL 3750VRMS 6CH SPI 20SSOP |
2,183 | 10.17 |
RFQ |
Datasheet |
Tube | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 6 | 4/2 | Unidirectional | 3750Vrms | 25kV/µs | 40Mbps | 25ns, 25ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM5404CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
5,183 | 1.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),Bulk | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM2402BRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
5,381 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
