| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

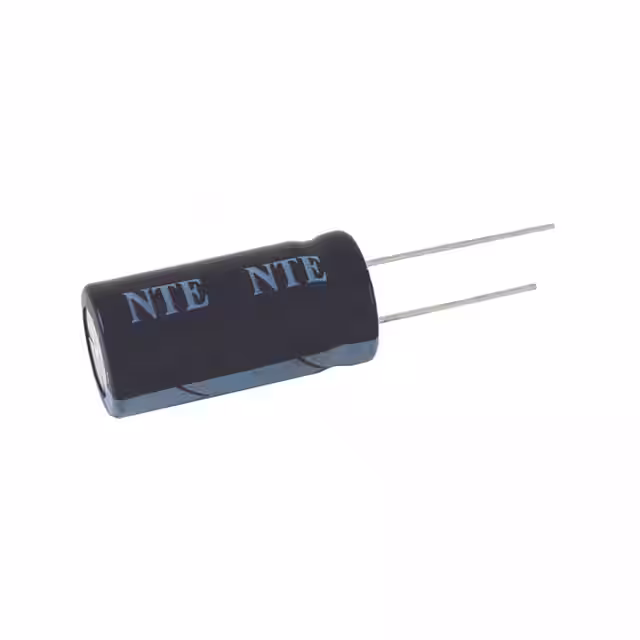

VHT47M350CAP ALUM 47UF 20% 350V RADIAL |
8,150 | 2.86 |
RFQ |
Datasheet |
Bag | VHT | Active | 47 µF | ±20% | 350 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
LGU2D821MELBCAP ALUM 820UF 20% 200V SNAP |
7,554 | 4.55 |
RFQ |
Datasheet |
Bulk | LGU | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
MAL216050221E3CAP ALUM 220UF 20% 35V RADIAL |
8,322 | 2.94 |
RFQ |
Datasheet |
Bulk | 160 RLA | Active | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | - | 48 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL213664222E3CAP ALUM 2200UF 20% 10V RADIAL |
8,947 | 2.95 |
RFQ |
Datasheet |
Bulk | 136 RVI | Active | 2200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 100 Hz | - | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
NEH3300M25GFCAP ALUM 3300UF 20% 25V AXIAL |
9,768 | 2.98 |
RFQ |
Datasheet |
Bag | NEH | Active | 3300 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.280 L (16.00mm x 32.50mm) | - | - | Through Hole |
|
VHT4700M35CAP ALUM 4700UF 20% 35V RADIAL |
7,002 | 3.00 |
RFQ |
Datasheet |
Bag | VHT | Active | 4700 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.417 (36.00mm) | - | Through Hole |
|
NEV2200M63HICAP ALUM 2200UF 20% 63V RADIAL |
5,704 | 3.02 |
RFQ |
Datasheet |
Bag | NEV | Active | 2200 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.693 (43.00mm) | - | Through Hole |
|
B41505A8108M007CAP ALUM 1000UF 20% 63V SNAP |
7,514 | 4.83 |
RFQ |
Datasheet |
Bulk | B41505 | Active | 1000 µF | ±20% | 63 V | 149mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | 159 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
100ZLJ680M18X35.5CAP ALUM 680UF 20% 100V RADIAL |
5,458 | 5.07 |
RFQ |
Datasheet |
Bulk | ZLJ | Active | 680 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.931 A @ 120 Hz | 3.51 A @ 100 kHz | 27 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
VHT10000M10CAP ALUM 10000UF 20% 10V RADIAL |
9,750 | 3.04 |
RFQ |
Datasheet |
Bag | VHT | Active | 10000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.417 (36.00mm) | - | Through Hole |
|
860160381046CAP ALUM 5600UF 20% 16V RADIAL |
7,378 | 3.86 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 5600 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.084 A @ 100 kHz | 48 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
NEVH220M160IICAP ALUM 220UF 160V RADIAL |
7,640 | 3.08 |
RFQ |
Datasheet |
Bag | NEVH | Active | 220 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
VHT2700M63CAP ALUM 2700UF 20% 63V RADIAL |
6,064 | 3.09 |
RFQ |
Datasheet |
Bag | VHT | Active | 2700 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
VHT330M160CAP ALUM 330UF 20% 160V RADIAL |
7,402 | 3.09 |
RFQ |
Datasheet |
Bag | VHT | Active | 330 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL204861222E3CAP ALUM 2200UF 20% 50V RADIAL |
8,820 | 4.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 048 RML | Active | 2200 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 50 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
MAL214699011E3CAP ALUM 1500UF 20% 35V SMD |
6,893 | 4.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 146 CTI | Active | 1500 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 100 Hz | 1.66 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | 0.630 L x 0.630 W (16.00mm x 16.00mm) | Surface Mount |
|
UPZ2W101MHDCAP ALUM 100UF 20% 450V RADIAL |
8,004 | 5.18 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 650 mA @ 120 Hz | 975 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
200TXW220MEFR18X25CAP ALUM 220UF 20% 200V RADIAL |
9,342 | 5.18 |
RFQ |
Datasheet |
Bulk | TXW | Active | 220 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.083 (27.50mm) | - | Through Hole |
|
|
MAL213665472E3CAP ALUM 4700UF 20% 16V RADIAL |
7,701 | 5.22 |
RFQ |
Datasheet |
Bulk | 136 RVI | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | 2.6 A @ 10 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
860040581020CAP ALUM 2700UF 20% 35V RADIAL |
5,476 | 3.96 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATUL | Active | 2700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.157 A @ 120 Hz | 3.85 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
