| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CP-AT-250-25VCAP ALUM 250UF 25V AXIAL |
8,811 | 4.45 |
RFQ |
Bulk | - | Active | 250 µF | - | 25 V | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | |
|
100ZLJ560M18X31.5CAP ALUM 560UF 20% 100V RADIAL |
6,812 | 4.47 |
RFQ |
Datasheet |
Bulk | ZLJ | Active | 560 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.573 A @ 120 Hz | 2.86 A @ 100 kHz | 30 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
B41505F9108M000CAP ALUM 1000UF 20% 100V SNAP |
7,626 | 4.29 |
RFQ |
Datasheet |
Bulk | B41505 | Active | 1000 µF | ±20% | 100 V | 100mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 106 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL213816152E3CAP ALUM 1500UF 20% 25V AXIAL |
7,697 | 4.76 |
RFQ |
Datasheet |
Bulk | 138 AML | Active | 1500 µF | ±20% | 25 V | 170mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.02 A @ 100 Hz | 1.326 A @ 10 kHz | 130 mOhms | - | 0.591 Dia x 1.181 L (15.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL213829221E3CAP ALUM 220UF 20% 100V AXIAL |
5,608 | 5.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 138 AML | Active | 220 µF | ±20% | 100 V | 540mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 650 mA @ 100 Hz | - | 330 mOhms | - | 0.591 Dia x 1.181 L (15.00mm x 30.00mm) | - | - | Through Hole |
|
MAL211890013E3CAP ALUM 22UF 20% 200V AXIAL |
9,950 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 118 AHT | Active | 22 µF | ±20% | 200 V | 3.17Ohm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 210 mA @ 100 Hz | - | 2.22 Ohms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
860040580019CAP ALUM 2700UF 20% 35V RADIAL |
7,924 | 3.92 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATUL | Active | 2700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.87 A @ 120 Hz | 3.5 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL214638681E3CAP ALUM 680UF 20% 63V RADIAL |
9,772 | 4.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 146 RTI | Active | 680 µF | ±20% | 63 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.1 A @ 100 kHz | 41 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
860160680035CAP ALUM 1200UF 20% 50V RADIAL |
5,088 | 3.95 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 1200 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.952 A @ 100 kHz | 45 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
MAL214655152E3CAP ALUM 1500UF 20% 16V RADIAL |
6,125 | 2.80 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 1500 µF | ±20% | 16 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.6 A @ 100 kHz | 43 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214650681E3CAP ALUM 680UF 20% 35V RADIAL |
5,362 | 2.80 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 680 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.6 A @ 100 kHz | 43 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL214699708E3CAP ALUM 220UF 20% 80V SMD |
8,435 | 3.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 146 CTI | Active | 220 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 540 mA @ 100 Hz | 900 mA @ 100 kHz | 180 mOhms | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.630 L x 0.630 W (16.00mm x 16.00mm) | Surface Mount |
|
|
MAL213818681E3CAP ALUM 680UF 20% 63V AXIAL |
6,088 | 4.93 |
RFQ |
Datasheet |
Bulk | 138 AML | Active | 680 µF | ±20% | 63 V | 190mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.13 A @ 100 Hz | 1.582 A @ 10 kHz | 120 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|
450CXW120MEFR14.5X50CAP ALUM 120UF 20% 450V RADIAL |
5,137 | 4.71 |
RFQ |
Datasheet |
Bulk | CXW | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.185 A @ 10 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 2.047 (52.00mm) | - | Through Hole |
|

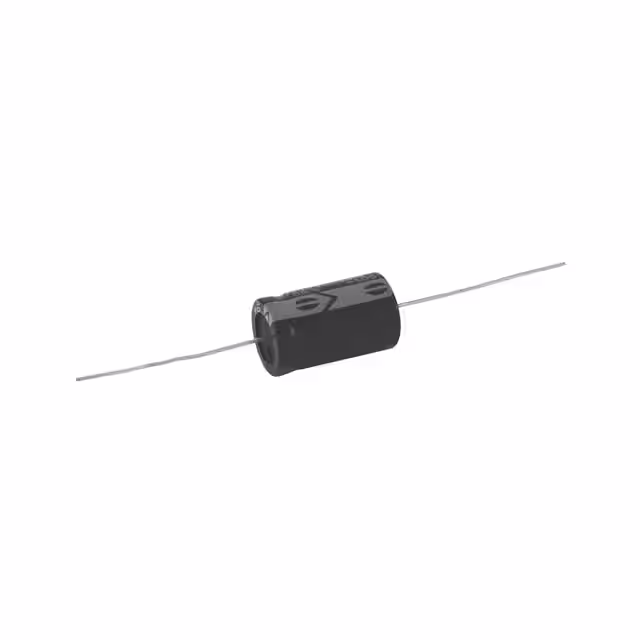

NEHH22M350EECAP ALUM 22UF 350V AXIAL |
7,420 | 2.84 |
RFQ |
Datasheet |
Bag | NEHH | Active | 22 µF | -10%, +75% | 350 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 1.181 L (13.00mm x 30.00mm) | - | - | Through Hole |
|

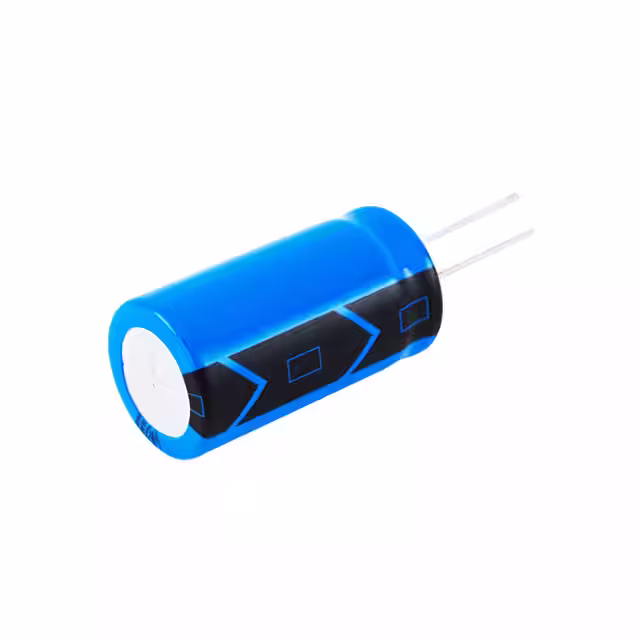

NEV4700M35HICAP ALUM 4700UF 20% 35V RADIAL |
6,688 | 2.84 |
RFQ |
Datasheet |
Bag | NEV | Active | 4700 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.535 (39.00mm) | - | Through Hole |
|
NEH2200M35GFCAP ALUM 2200UF 20% 35V AXIAL |
6,184 | 2.84 |
RFQ |
Datasheet |
Bag | NEH | Active | 2200 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.220 L (16.00mm x 31.00mm) | - | - | Through Hole |
|
MAL226099805E3CAP ALUM 220UF 20% 63V SMD |
5,856 | 4.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 260 CLA-V | Active | 220 µF | ±20% | 63 V | - | 1500 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 300 mA @ 100 Hz | 500 mA @ 100 kHz | 100 mOhms | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.654 L x 0.654 W (16.60mm x 16.60mm) | Surface Mount |
|
NEH1500M25CAP ALUM 1500UF 20% 25V AXIAL |
5,726 | 2.85 |
RFQ |
Datasheet |
Bag | NEH | Active | 1500 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 1.024 L (13.00mm x 26.00mm) | - | - | Through Hole |
|
NPA330M63CAP ALUM 330UF 20% 63V AXIAL |
6,066 | 2.86 |
RFQ |
Datasheet |
Bag | NPA | Active | 330 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | - | - | - | 0.630 Dia (16.00mm) | - | - | Through Hole |
