| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

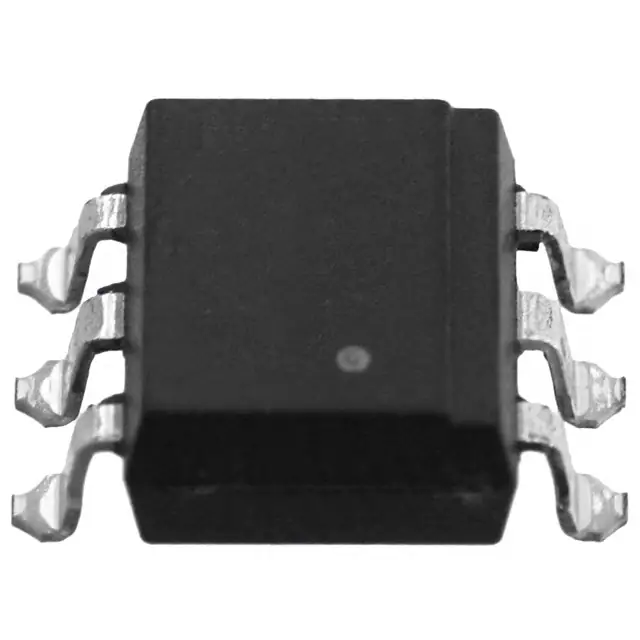

CNY17-3-500EOPTOISO 5KV TRANS W/BASE 6SMD |
11,625 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|

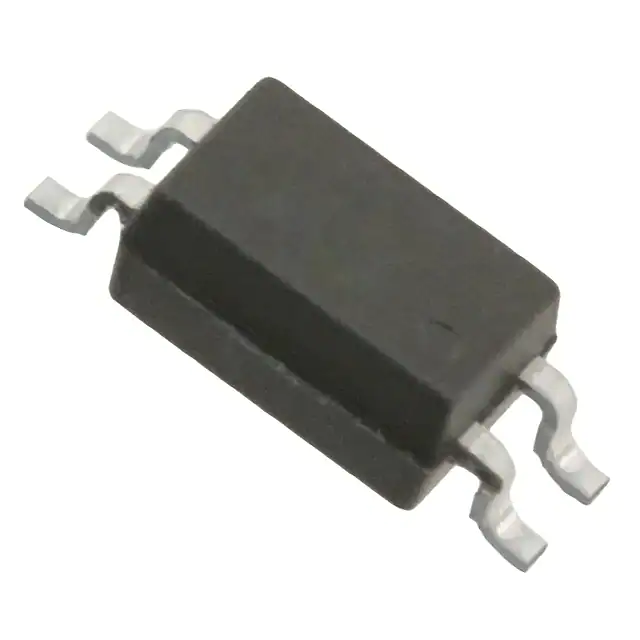

ACPL-217-56CEOPTOISOLATOR 3.75KV TRANS 4SOIC |
11,731 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
HCPL-354-06AEOPTOISO 3.75KV TRANS 4MINIFLAT |
13,084 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
HCPL-4503-500EOPTOISOLTR 3.75KV TRANS 8-DIP GW |
5,528 | 2.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-4504-500EOPTOISO 3.75KV TRANSISTOR 8DIPGW |
9,124 | 2.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
HCPL-070L-500EOPTOISO 3.75KV DARLINGTON 8-SO |
9,037 | 2.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 25µs, 50µs | - | DC | Darlington | 7V | 60mA | 1.5V | 20 mA | - | 0°C ~ 70°C | Surface Mount |
|

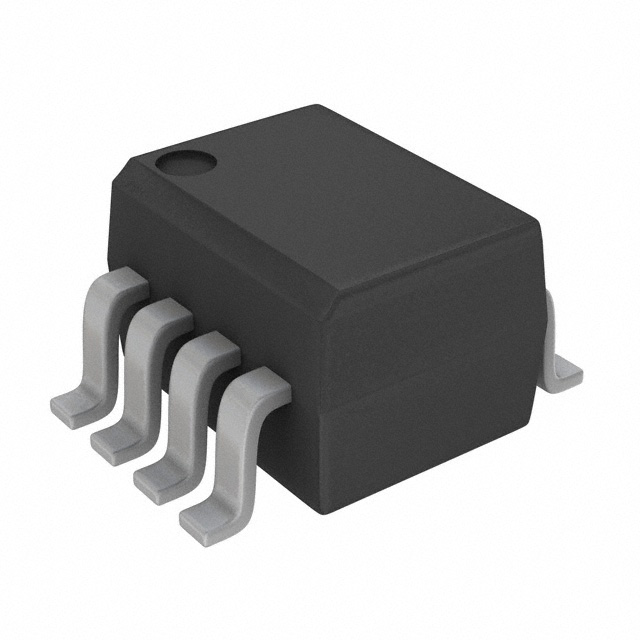

ACPL-224-500EOPTOISOLATOR 3KV 2CH TRANS 8SOIC |
9,750 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3000Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
HCPL-817-000EOPTOISOLATOR 5KV TRANSISTOR 4DIP |
13,038 | 0.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
HCPL-2531-500EOPTOISO 3.75KV 2CH TRANS 8DIPGW |
8,988 | 3.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
ACPL-M43T-500EOPTOISOLATOR 4KV TRANSISTOR 5-SO |
9,035 | 3.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, R²Coupler™ | Active | 1 | 4000Vrms | 32% @ 10mA | 100% @ 10mA | 150ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.55V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
6N136-000EOPTOISO 3.75KV TRANS W/BASE 8DIP |
6,807 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
ACPL-847-300EOPTOISOLTR 5KV 4CH TRANS 16-SMD |
6,930 | 1.88 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
HCPL-053L-500EOPTOISOLTR 3.75KV 2CH TRANS 8-SO |
9,343 | 4.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 7V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ACPL-054L-500EOPTOISOLTR 3.75KV 2CH TRANS 8-SO |
9,474 | 4.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
HCNR200-500EOPTOISO 5KV LINEAR PHVOLT 8DIPGW |
8,279 | 4.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 0.25% @ 10mA | 0.75% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-0453-000EOPTOISOLATOR 3.75KV TRANS 8-SO |
8,376 | 2.37 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-0730-500EOPTOISO 3.75KV 2CH DARLNG 8-SO |
7,045 | 5.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 7V | 60mA | 1.4V | 12 mA | 100mV | 0°C ~ 70°C | Surface Mount |
|
|
HCPL-073L-500EOPTOISO 3.75KV 2CH DARLNG 8-SO |
9,350 | 5.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 25µs, 50µs | - | DC | Darlington | 7V | 60mA | 1.5V | 20 mA | - | 0°C ~ 70°C | Surface Mount |
|
|
HCPL-0701-000EOPTOISO 3.75KV DARL W/BASE 8SOIC |
6,458 | 2.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-4503-300EOPTOISOLTR 3.75KV TRANS 8-DIP GW |
6,467 | 2.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
Request a Quote
