| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

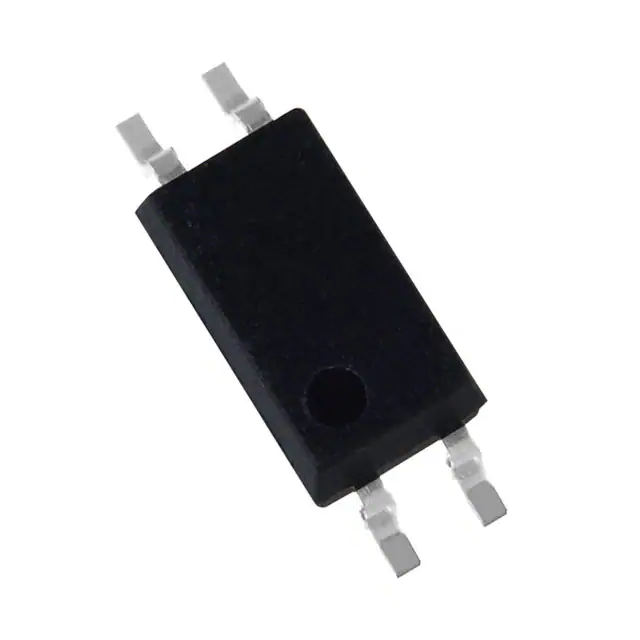

TLX9291A(GBTPL,FTR COUPLER; SO4; AECQ; ROHS; T&R |
7,839 | 2.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 5µs, 5µs | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.27V | 30 mA | 400mV | -40°C ~ 125°C | Surface Mount |
|
HCPL-4503-500EOPTOISOLTR 3.75KV TRANS 8-DIP GW |
5,528 | 2.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-4504-500EOPTOISO 3.75KV TRANSISTOR 8DIPGW |
9,124 | 2.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
HCPL-070L-500EOPTOISO 3.75KV DARLINGTON 8-SO |
9,037 | 2.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 25µs, 50µs | - | DC | Darlington | 7V | 60mA | 1.5V | 20 mA | - | 0°C ~ 70°C | Surface Mount |
|
FOD852300OPTOISOLATOR 5KV DARLINGTON 4DIP |
7,814 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington | 300V | 150mA | 1.2V | 50 mA | 1.2V | -30°C ~ 100°C | Through Hole |
|
ILD207TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
6,959 | 1.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
MCT62SDOPTOISO 5KV 2CH TRANSISTOR 8SMD |
6,352 | 1.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5000Vrms | 100% @ 5mA | - | 2.4µs, 2.4µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
SFH6286-3TOPTOISOLATOR 5.3KV TRANS 4-SMD |
5,884 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 1mA | 320% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | AC, DC | Transistor | 55V | 50mA | 1.1V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
ILD1207TOPTOISO 4KV 2CH TRANS 8SOIC |
5,364 | 1.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | - | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
SFH619A-X007TOPTOISOLATOR 5.3KV DARL 4SMD |
9,168 | 1.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 1000% @ 1mA | - | 4.5µs, 29µs | 3.5µs, 14.5µs | DC | Darlington | 300V | 125mA | 1.2V | 60 mA | 1.2V | -55°C ~ 100°C | Surface Mount |
|
ACPL-224-500EOPTOISOLATOR 3KV 2CH TRANS 8SOIC |
9,750 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3000Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

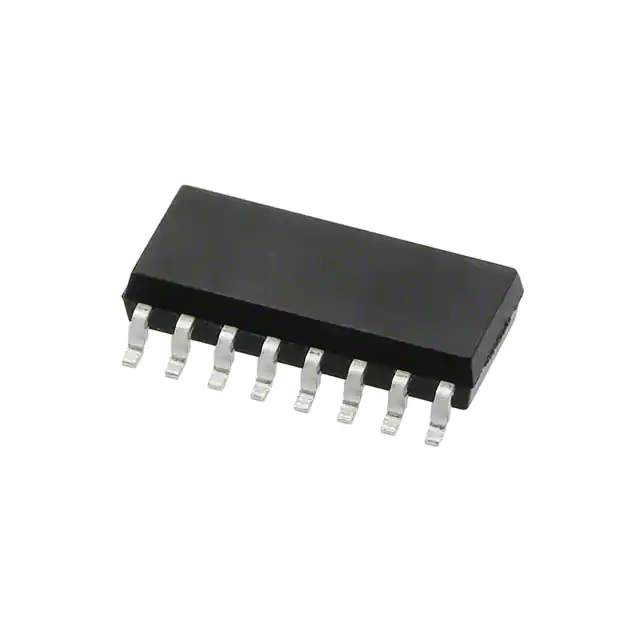

IS281-4OPTOISO 3.75KV 4CH TRANS |
6,244 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
PS2802-1-F3-AOPTOISOLATOR 2.5KV DARL 4SOIC |
6,972 | 1.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Active | 1 | 2500Vrms | 200% @ 1mA | - | - | 200µs, 200µs | DC | Darlington | 40V | 90mA | 1.1V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-817-000EOPTOISOLATOR 5KV TRANSISTOR 4DIP |
13,038 | 0.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
ILD256TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
6,130 | 1.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
ILD223TOPTOISO 4KV 2CH DARLINGTON 8SOIC |
9,733 | 1.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 4000Vrms | 500% @ 1mA | - | 15µs, 30µs (Min) | - | DC | Darlington | 30V | - | 1.3V (Max) | - | 1V | -55°C ~ 100°C | Surface Mount |
|
|
SFH6319TOPTOISO 4KV TRANS W/BASE 8SOIC |
5,275 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 600ns, 1.5µs | - | DC | Transistor with Base | 18V | 60mA | 1.4V | 20 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
PS2806-1-F3-AOPTOISOLATOR 2.5KV DARL 4SOIC |
7,176 | 1.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Not For New Designs | 1 | 2500Vrms | 200% @ 1mA | - | - | 200µs, 200µs | AC, DC | Darlington | 40V | 90mA | 1.1V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
LTV-825OPTOISO 5KV 2CH DARLINGTON 8-DIP |
11,029 | 0.70 |
RFQ |
Datasheet |
Tube | LTV-8x5 | Active | 2 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
|
PC452J00000FOPTOISOLATOR 3.75KV DARL 4SMD |
5,058 | 1.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | -30°C ~ 100°C | Surface Mount |
