Results:

Производитель. Часть #	Доступность	Количество	Таблицы данных	Packaging	Series	ProductStatus	Thread/Screw/HoleSize	Diameter-Inside	Diameter-Outside	Diameter-Shoulder	Thickness-Overall	Length-BelowHead
22350.0924 LOCATING BUSHING FOR LIFTING PIN Halder Inc	11,499	- + RFQ	Datasheet	Bulk	-	Active	-	0.472 (12.00mm)	1.260 (32.00mm)	-	1.909 (48.50mm)	1.417 (36.00mm)
22350.1936 LOCATING BUSHINGS PLAIN FOR LIFT Halder Inc	11,832	- + RFQ	Datasheet	Bulk	-	Active	-	0.630 (16.00mm)	1.535 (39.00mm)	-	3.543 (90.00mm)	3.307 (84.00mm)
23112.0543 POSITIONING BUSHING W/OUT COLLAR Halder Inc	14,661	- + RFQ	Datasheet	Bulk	-	Active	-	0.161 (4.10mm)	0.315 (8.00mm)	-	0.315 (8.00mm)	-
23112.0142 POSITIONING BUSHINGS WITH COLLAR Halder Inc	12,810	- + RFQ	Datasheet	Bulk	-	Active	-	0.551 (14.00mm)	1.024 (26.00mm)	0.866 (22.00mm)	1.417 (36.00mm)	-
23112.0165 POSITIONING BUSHINGS WITH COLLAR Halder Inc	10,066	- + RFQ	Datasheet	Bulk	-	Active	-	0.634 (16.10mm)	1.181 (30.00mm)	1.024 (26.00mm)	1.417 (36.00mm)	-
23112.0063 POSITIONING BUSHINGS WITH COLLAR Halder Inc	11,900	- + RFQ	Datasheet	Bulk	-	Active	-	0.240 (6.10mm)	0.591 (15.00mm)	0.472 (12.00mm)	0.394 (10.00mm)	-
22350.0936 LOCATING BUSHING FOR LIFTING PIN Halder Inc	14,303	- + RFQ	Datasheet	Bulk	-	Active	-	0.630 (16.00mm)	1.535 (39.00mm)	-	3.780 (96.00mm)	2.913 (74.00mm)

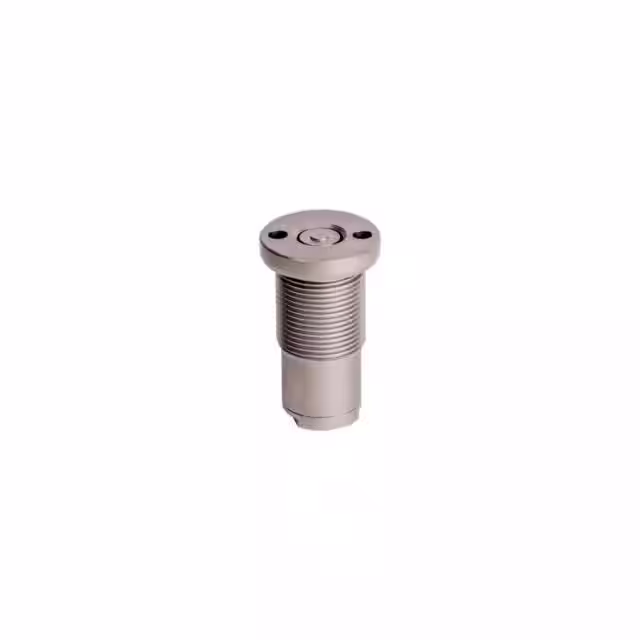

22350.1962 LOCATING BUSHING WITH SEAL PLAIN Halder Inc	10,814	- + RFQ	Datasheet	Bulk	-	Active	-	0.472 (12.00mm)	1.260 (32.00mm)	-	2.087 (53.00mm)	1.850 (47.00mm)
23112.014 POSITIONING BUSHINGS WITH COLLAR Halder Inc	11,163	- + RFQ	Datasheet	Bulk	-	Active	-	0.551 (14.00mm)	1.024 (26.00mm)	0.866 (22.00mm)	0.630 (16.00mm)	-
22110.0466 POSITION BUSHING FOR INDEX BOLTS Halder Inc	13,375	- + RFQ	Datasheet	Bulk	-	Active	M12	0.244 (6.20mm)	0.945 (24.00mm)	0.472 (12.00mm)	0.630 (16.00mm)	0.394 (10.00mm)
23112.0033 POSITIONING BUSHINGS WITH COLLAR Halder Inc	13,387	- + RFQ	Datasheet	Bulk	-	Active	-	0.122 (3.10mm)	0.354 (9.00mm)	0.236 (6.00mm)	0.315 (8.00mm)	0.217 (5.50mm)
23112.0222 POSITIONING BUSHINGS WITH COLLAR Halder Inc	11,808	- + RFQ	Datasheet	Bulk	-	Active	-	0.866 (22.00mm)	1.339 (34.00mm)	1.181 (30.00mm)	1.417 (36.00mm)	-
23112.0073 POSITIONING BUSHINGS WITH COLLAR Halder Inc	13,880	- + RFQ	Datasheet	Bulk	-	Active	-	0.280 (7.10mm)	0.591 (15.00mm)	0.472 (12.00mm)	0.394 (10.00mm)	-
23112.0021 POSITIONING BUSHINGS WITH COLLAR Halder Inc	13,976	- + RFQ	Datasheet	Bulk	-	Active	-	0.079 (2.00mm)	0.315 (8.00mm)	0.197 (5.00mm)	0.354 (9.00mm)	0.276 (7.00mm)
22350.1926 LOCATING BUSHINGS PLAIN FOR LIFT Halder Inc	13,239	- + RFQ	Datasheet	Bulk	-	Active	-	0.472 (12.00mm)	1.260 (32.00mm)	-	2.559 (65.00mm)	2.323 (59.00mm)
23112.0081 POSITIONING BUSHINGS WITH COLLAR Halder Inc	14,269	- + RFQ	Datasheet	Bulk	-	Active	-	0.315 (8.00mm)	0.591 (15.00mm)	0.472 (12.00mm)	0.630 (16.00mm)	-
23112.0204 POSITIONING BUSHINGS WITH COLLAR Halder Inc	11,630	- + RFQ	Datasheet	Bulk	-	Active	-	0.791 (20.10mm)	1.339 (34.00mm)	1.181 (30.00mm)	0.787 (20.00mm)	-
22150.0806 ECCENTRIC MOUNTING BUSHINGS Halder Inc	10,341	- + RFQ	Datasheet	Bulk	-	Active	-	0.236 (6.00mm)	0.472 (12.00mm)	-	0.390 (9.90mm)	-
22110.0482 POSITION BUSHING FOR INDEX BOLTS Halder Inc	11,816	- + RFQ	Datasheet	Bulk	-	Active	M16	0.480 (12.20mm)	1.260 (32.00mm)	0.630 (16.00mm)	0.787 (20.00mm)	0.472 (12.00mm)
22350.1963 LOCATING BUSHING WITH SEAL PLAIN Halder Inc	13,059	- + RFQ	Datasheet	Bulk	-	Active	-	0.630 (16.00mm)	1.535 (39.00mm)	-	3.071 (78.00mm)	2.835 (72.00mm)
