| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP0531TQTCTTVS DIODE 5VWM 20VC SLP1006P2T |
6,847 | 1.09 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 4A (8/20µs) | 80W | No | Automotive | 0.85pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|

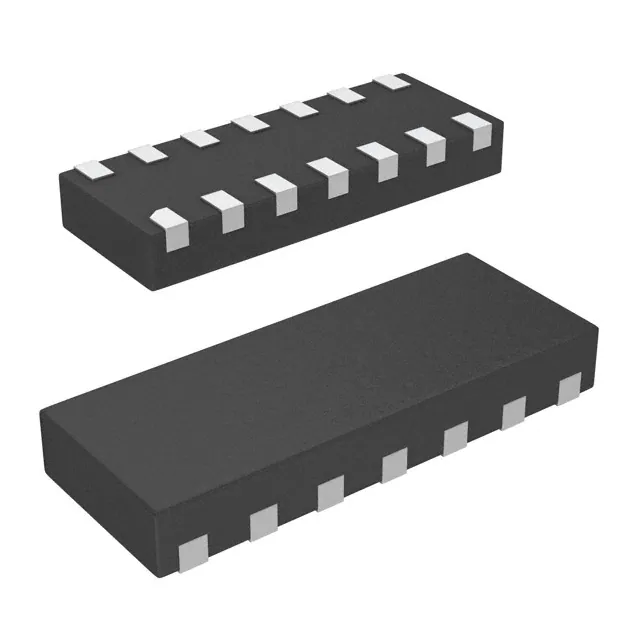

SP3011-06UTGTVS DIODE 6VWM 12.5VC 14UDFN |
6,295 | 1.09 |
RFQ |
Datasheet |
14-UFDFN | Tape & Reel (TR),Cut Tape (CT) | SP3011, SPA® | Active | Steering (Rail to Rail) | 6 | - | 6V (Max) | - | 12.5V | 3A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
SLVU2.8HTGTVS DIODE 2.8VWM 15VC SOT23-3 |
5,935 | 1.09 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | SLVU2.8, SPA® | Active | Zener | - | 1 | 2.8V (Max) | 3V | 15V | 40A (8/20µs) | 600W | No | General Purpose | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3346P.TNTTVS DIODE 3.3VWM 4.5VC SGP2708N7 |
5,792 | 1.22 |
RFQ |
Datasheet |
7-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 6 | - | 3.3V (Max) | 7V | 4.5V | 4.5A (8/20µs) | - | No | USB | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0504FATCTTVS DIODE 5VWM 25VC SC70-6 |
6,157 | 1.12 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 25V | 6A (8/20µs) | 150W | Yes | USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0504F.TCTTVS DIODE 5VWM 23VC SC70-6 |
8,406 | 1.12 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 23V | 6A (8/20µs) | 150W | Yes | Ethernet, HDMI, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3324T.TCTTVS DIODE 3.3V 10.5V SLP1710P4T |
8,559 | 1.12 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.8V | 10.5V | 5A (8/20µs) | 75W | Yes | HDMI | 0.4pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3354S.TCTTVS DIODE 3.3VWM 16VC SOT23-5 |
7,580 | 1.12 |
RFQ |
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 16V | 25A (8/20µs) | 400W | Yes | Ethernet | 3.8pF @ 1MHz | -55°C ~ 85°C (TA) | Surface Mount |
|
RCLAMP0554S.TCTTVS DIODE 5VWM 15VC SOT23-6 |
7,224 | 1.12 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 25A (8/20µs) | 375W | Yes | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3654PATCTTVS DIODE 5.5VWM 30VC SLP1616P6 |
8,382 | 1.12 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SP3003-08ATGTVS DIODE 6VWM 15VC 10MSOP |
5,235 | 1.18 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | SP3003, SPA® | Active | Steering (Rail to Rail) | 8 | - | 6V (Max) | - | 15V | 2.5A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
SMLJ170CATVS DIODE 170VWM 275VC SMC |
6,032 | 1.18 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | SMLJ | Active | Zener | - | 1 | 170V | 189V | 275V | 11A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
SMCJ18CATVS DIODE 18VWM 29.2VC SMC |
9,453 | 1.19 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 18V | 20V | 29.2V | 51.4A | 1500W (1.5kW) | No | General Purpose | - | - | Surface Mount |
|

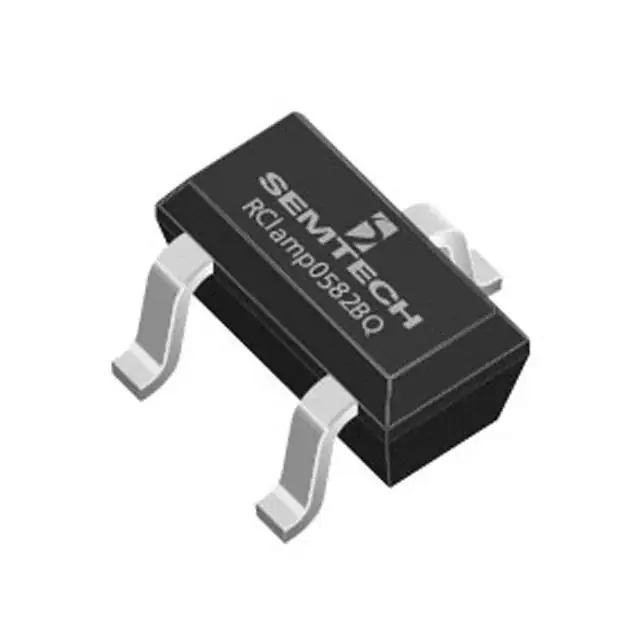

RCLAMP0582BQTCTTVS DIODE 5VWM 20VC SC75 |
9,172 | 1.19 |
RFQ |
Datasheet |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Zener | 2 | - | 5V (Max) | 6V | 20V | 15A (8/20µs) | 300W | No | Automotive | 1.2pF @ 1MHz | -40°C ~ 105°C (TJ) | Surface Mount |
|
|
SMLJ36CATVS DIODE 36VWM 58.1VC SMC |
7,499 | 1.20 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | SMLJ | Active | Zener | - | 1 | 36V | 40V | 58.1V | 51.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|

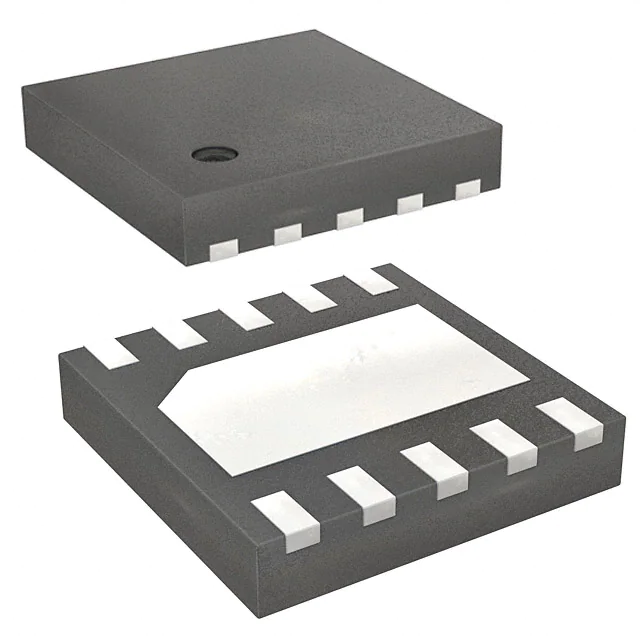

SP3304NUTGTVS DIODE 3.3VWM 11.5VC 10UDFN |
9,981 | 1.21 |
RFQ |
Datasheet |
10-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | SP3304N, SPA® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | - | 11.5V | 20A (8/20µs) | 300W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
82402304TVS DIODE 5VWM 6.8VC SOT23-6L |
10,516 | 0.83 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | WE-TVS | Active | Zener | 4 | - | 5V (Max) | 6V | 6.8V (Typ) | 6A (8/20µs) | - | No | General Purpose | 13pF @ 1MHz | -55°C ~ 85°C (TJ) | Surface Mount |
|
CDSC706-0504CTVS DIODE 5VWM 9VC SC70-6 |
7,408 | 1.24 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 9V | 6.5A (8/20µs) | - | Yes | General Purpose | - | -55°C ~ 85°C (TA) | Surface Mount |
|

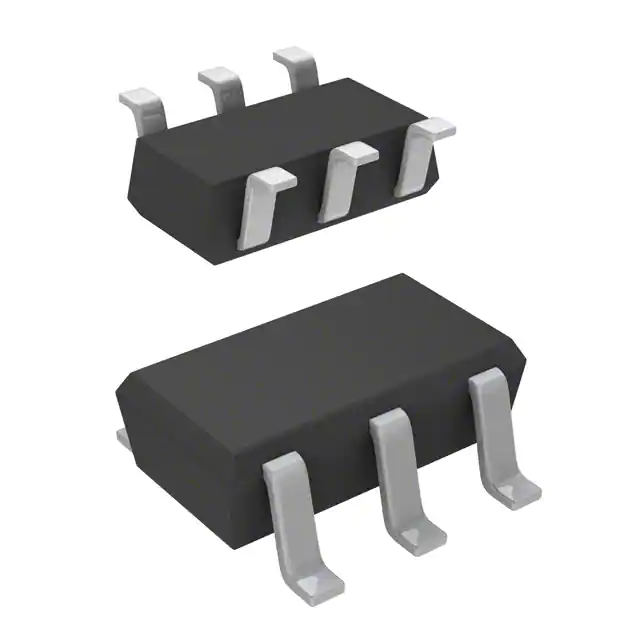

SMF3.3.TCTTVS DIODE 3.3VWM 8VC SC70-5 |
7,096 | 1.25 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | SMF | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3312T.TCTTVS DIODE 3.3VWM 11VC SLP2010P8T |
8,256 | 1.25 |
RFQ |
Datasheet |
8-XFDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 2 | 3.3V (Max) | 3.5V | 11V | 10A (8/20µs) | 100W | No | Ethernet | 4.5pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
