| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

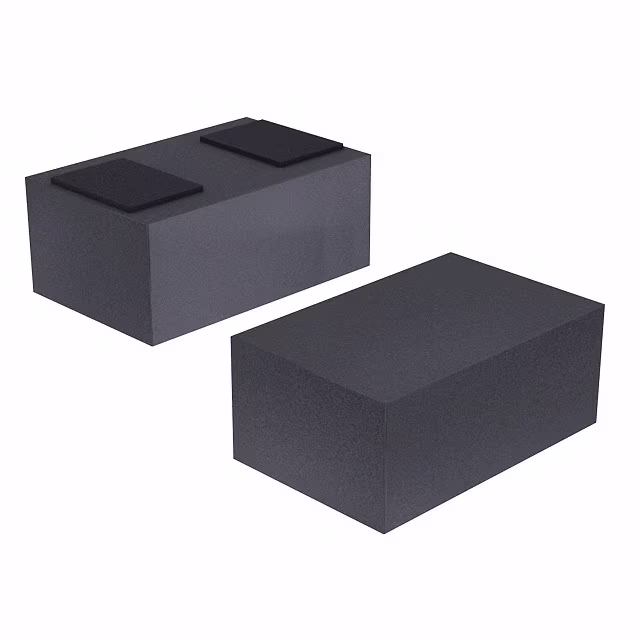

CPDQR5V0UTVS DIODE 5VWM 12.5V 0402/SOD923 |
12,610 | 0.47 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | - | Surface Mount |
|

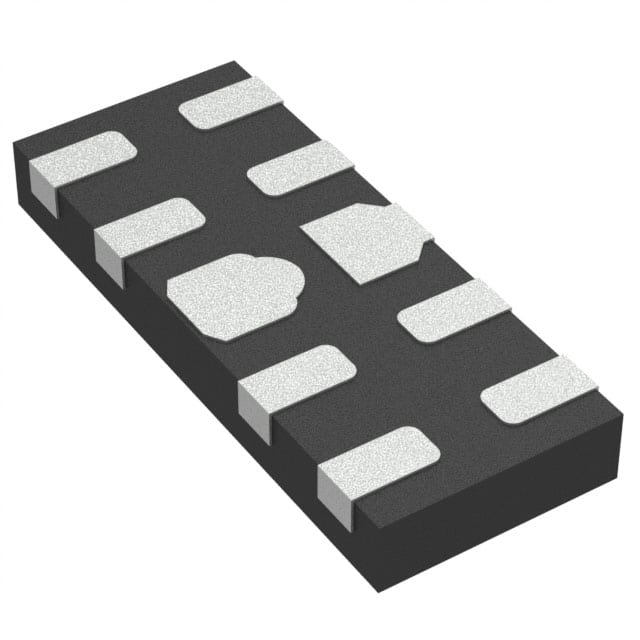

AOZ8809DI-05TVS DIODE 5VWM 9VC 10DFN |
12,220 | 0.44 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 9V | 12A (100ns) | - | Yes | HDMI | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SRV05-4ATVS DIODE 5VWM 17.5VC SOT23-6 |
13,270 | 0.44 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 5A (8/20µs) | - | Yes | Ethernet | 3.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMF4L58ATVS DIODE 58VWM 93.6VC SOD123FL |
14,692 | 0.45 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | SMF4L | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMF4L30ATVS DIODE 30VWM 48.4VC SOD123FL |
13,652 | 0.45 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | SMF4L | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
SMF4L30CATVS DIODE 30VWM 48.4VC SOD123FL |
14,182 | 0.45 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | SMF4L | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMF4L13ATVS DIODE 13VWM 21.5VC SOD123FL |
14,953 | 0.45 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | SMF4L | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMF4L40CATVS DIODE 40VWM 64.5VC SOD123FL |
12,223 | 0.45 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | SMF4L | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMF4L15ATVS DIODE 15VWM 24.4VC SOD123FL |
11,256 | 0.45 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | SMF4L | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMF4L16CATVS DIODE 16VWM 26VC SOD123F |
14,609 | 0.45 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | SMF4L | Active | Zener | - | 1 | 16V | 17.8V | 26V | 15.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESDA7P120-1U1MTVS DIODE 5.5VWM 11.5VC 1610 |
14,279 | 0.47 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | ESDA | Active | Zener | 1 | - | 5.5V | 6.4V | 11.5V | 120A (8/20µs) | 1400W (1.4kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|

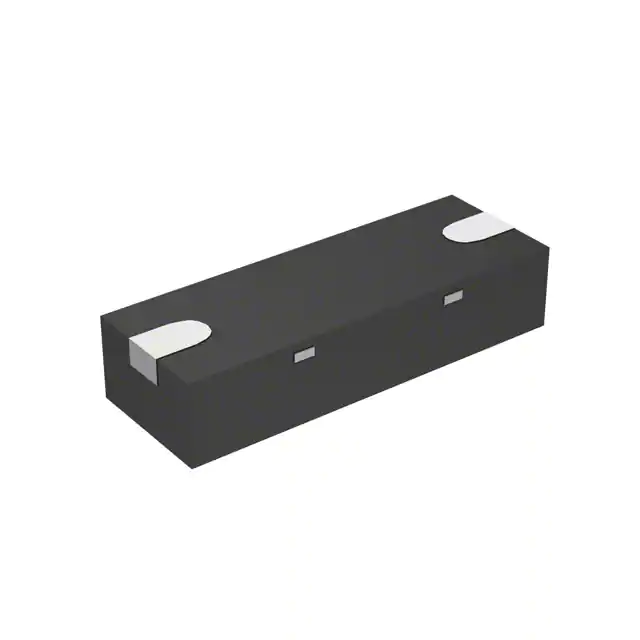

SZESD7241N2T5GTVS DIODE 24VWM 48VC 2X2DFN |
12,569 | 0.49 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 24V (Max) | 24.3V | 48V (Typ) | - | - | No | Automotive, RF Antenna | 1pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IP4283CZ10-TBR,115TVS DIODE 5.5VWM 9.5VC 10DFN |
10,008 | 0.49 |
RFQ |
Datasheet |
10-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 9.5V (Typ) | 3.8A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | Surface Mount |
|
DESD32VS2SO-7TVS DIODE 32VWM 50VC SOT23 |
12,335 | 0.47 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 32V (Max) | 34V | 50V | 4A (8/20µs) | 200W | No | Automotive | 36pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
SD15C-01FTGTVS DIODE 15VWM 31VC SOD323 |
11,649 | 0.47 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SD-C, SPA® | Active | Zener | - | 1 | 15V (Max) | - | 31V | 12A (8/20µs) | 450W | No | Automotive | 75pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
SD24C-01FTGTVS DIODE 24VWM 42VC SOD323 |
11,243 | 0.47 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SD-C, SPA® | Active | Zener | - | 1 | 24V (Max) | - | 42V | 7A (8/20µs) | 450W | No | Automotive | 50pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
SD05C-01FTGTVS DIODE 5VWM 18VC SOD323 |
11,267 | 0.47 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | SD-C, SPA® | Active | Zener | - | 1 | 5V (Max) | - | 18V | 30A (8/20µs) | 450W | No | General Purpose | 200pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
CPDQR5V0TVS DIODE 5VWM 15VC 0402/SOD923F |
12,607 | 0.50 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V | 5.1V | 15V | 5A (8/20µs) | 75W | No | General Purpose | 15pF @ 1MHz | - | Surface Mount |
|
CDDFN2-T3.3BTVS DIODE 3.3VWM 8VC 2DFN |
14,233 | 0.42 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 4V | 8V | 5A (8/20µs) | - | No | General Purpose | 13.5pF @ 1MHz | -55°C ~ 85°C (TA) | Surface Mount |
|
PUSB3AB6ZTVS DIODE 3.3VWM 6VC 7XSON |
13,347 | 0.47 |
RFQ |
Datasheet |
7-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 6 | 3.3V (Max) | 6V | 6V (Typ) | 5A (8/20µs) | - | No | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
