| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESD3B5V0WSTVS DIODE 5VWM 14.5VC SOD323 |
11,077 | 0.07 |
RFQ |
Datasheet |
SC-90, SOD-323F | Tape & Reel (TR) | - | Active | Zener | - | 1 | 5V | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -50°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD3B12WSTVS DIODE 12VWM 24VC SOD323 |
13,554 | 0.07 |
RFQ |
Datasheet |
SC-90, SOD-323F | Tape & Reel (TR) | - | Active | Zener | - | 1 | 12V | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz | -50°C ~ 125°C (TJ) | Surface Mount |
|
PE1805C4E6_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
14,538 | 0.38 |
RFQ |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | - | Yes | DVI, Ethernet, USB | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|

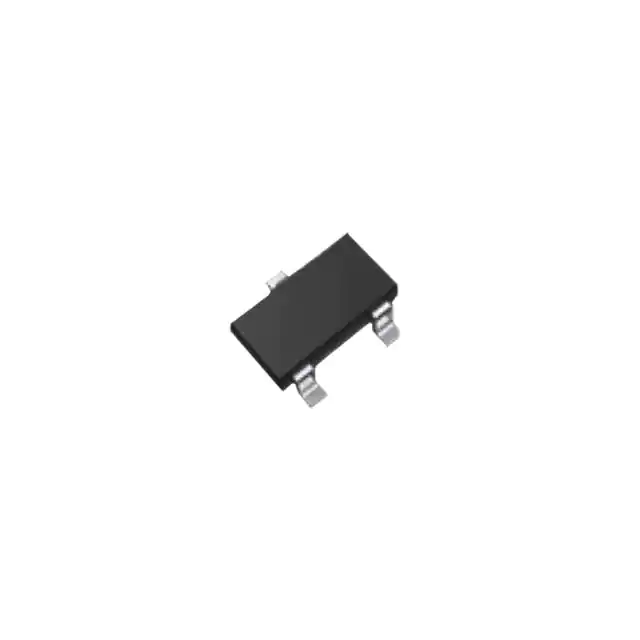

MSZ36V,LFTVS DIODE 36VWM 63VC SMINI |
12,027 | 0.38 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | MSZ | Active | Zener | 1 | - | 36V | 34V | 63V (Typ) | 3A (8/20µs) | 200W | No | General Purpose | 18pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
PE1605C2A_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
11,523 | 0.38 |
RFQ |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 5.5V | 15V | 4A (8/20µs) | - | No | USB | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
PE4105C2A_R1_00001HI-SURGE ESD PROTECTION |
11,533 | 0.38 |
RFQ |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 6V | 11V | 13A (8/20µs) | - | No | General Purpose | 120pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
S23LCC055V TVS,PACKAGE SOT-23, TVS ARRAY |
13,098 | 0.38 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 5V (Max) | 6V | 9.8V | 1A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ACPDQC5V0UESPC-HFAUTOMOTIVE DIODE ESD 5VWM 12VC 0 |
10,893 | 0.40 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 6V | 16V | 3A (8/20µs) | 48W | No | Automotive | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
ACPDQ03C5V0AU-HFAUTOMOTIVE DIODE ESD 5VWM 11VC 0 |
10,169 | 0.40 |
RFQ |
Datasheet |
SC-101, SOT-883 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 5V (Max) | 6V | 15V | 4A (8/20µs) | 60W | No | Automotive | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ACPDZC3V3HT-HFAUTOMOTIVE DIODE ESD 3.3VWM 5.5V |
13,169 | 0.45 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 3.3V (Max) | 3.7V | 7V (Typ) | 17A (8/20µs) | 119W | No | Automotive | 38pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMAJ15A/TR13TVS DIODE 15VWM 24.4VC DO214AC |
10,337 | 0.40 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | SMAJ | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMAJ30A/TR13TVS DIODE 30VWM 48.4VC DO214AC |
12,181 | 0.40 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | SMAJ | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMAJ20CA/TR13TVS DIODE 20VWM 32.4VC DO214AC |
14,892 | 0.40 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | SMAJ | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMAJ28CA/TR13TVS DIODE 28VWM 45.4VC DO214AC |
12,917 | 0.40 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | SMAJ | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 8.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESDALD05UE2XTHE ESDALD05UE2 IS A LOW CAPACIT |
14,912 | 0.37 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 15V | 4A (8/20µs) | 60W | Yes | DVI, HDMI, USB | 0.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
SD03LCCTVS ARRAY 3V SOD-323 |
10,807 | 0.37 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | SDxxLCC | Active | Zener | - | 2 | 3.3V (Max) | 4V | 19V | 20A (8/20µs) | 350W | No | Ethernet, USB | 5pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD9BL24PTVS DIODE 24VWM 60VC SOD882 |
14,301 | 0.07 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR) | - | Active | Zener | - | 1 | 24V | 26V | 60V | 6A (8/20µs) | 350W | No | General Purpose | 35pF @ 1MHz | -50°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD9BL0522PTVS DIODE 5VWM 20VC SOD882 |
14,086 | 0.07 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR) | - | Active | Zener | - | 1 | 5V | 6V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 0.4pF @ 1MHz | -50°C ~ 125°C (TJ) | Surface Mount |
|
STS521360U201TVS DIODE 36VWM 55VC SOD523 |
12,527 | 0.41 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | BUSSMANN | Active | Zener | 1 | - | 36V (Max) | 40V | 55V | 1A (8/20µs) | 120W | No | General Purpose | 20pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
STS521240U161TVS DIODE 24VWM 48VC SOD523 |
10,378 | 0.41 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | BUSSMANN | Active | Zener | 1 | - | 24V (Max) | 26.7V | 48V | 4A (8/20µs) | 200W | No | General Purpose | 16pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
