Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

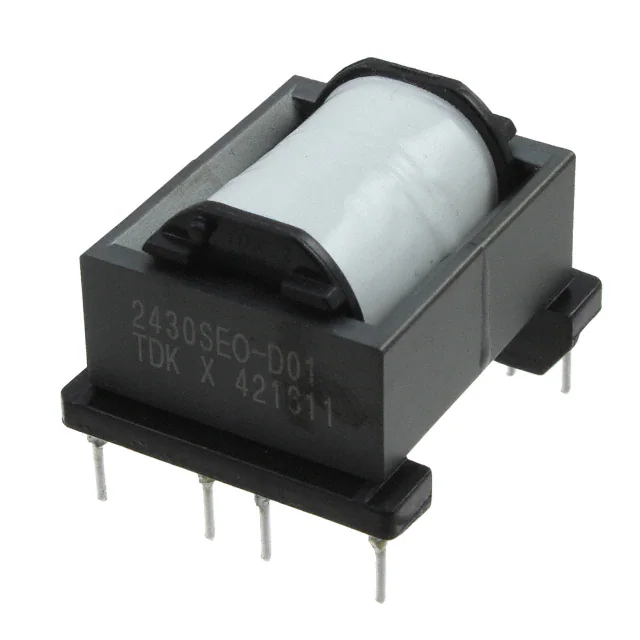

ECO2430SEO-D01H0110 INDUCTOR/XFRMR TDK Corporation	8,066	6.68	- + RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	390 V	12V @ 2A, 17V @ 500mA	3000Vrms	450µH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	1.181 L x 1.417 W (30.00mm x 36.00mm)	0.984 (25.00mm)	1.181 L x 1.417 W (30.00mm x 36.00mm)

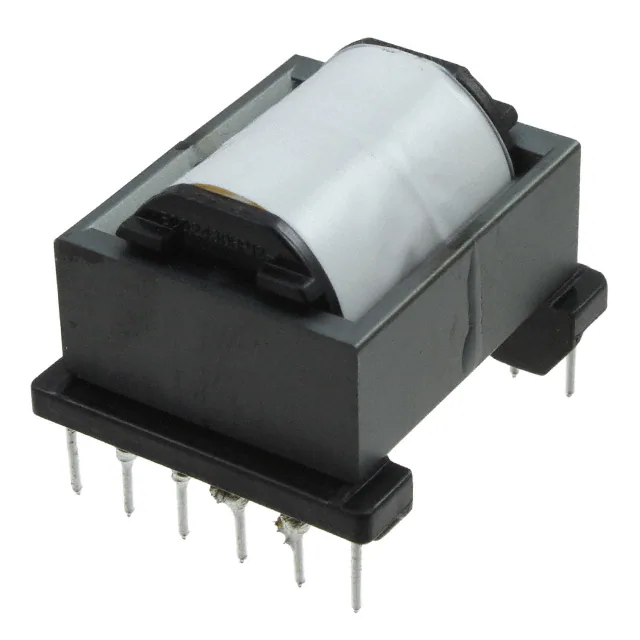

ECO2430SEO-D03H016 INDUCTOR/XFRMR TDK Corporation	5,791	6.68	- + RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	187 ~ 264V	5V @ 1A, 24V @ 2A	3000Vrms	680µH @ 10kHz	67kHz	-30°C ~ 120°C	Through Hole	1.181 L x 1.417 W (30.00mm x 36.00mm)	0.984 (25.00mm)	1.181 L x 1.417 W (30.00mm x 36.00mm)
POE26W3.3VS5-R TRANSFRMR 160UH 26W 2.6A POE SMD Eaton - Electronics Division	9,754	7.18	- + RFQ	Datasheet	Tape & Reel (TR)	PoE	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	160µH @ 100kHz	300kHz	-40°C ~ 85°C	Surface Mount	0.846 L x 0.866 W (21.50mm x 22.00mm)	0.425 (10.80mm)	0.846 L x 1.161 W (21.50mm x 29.50mm)

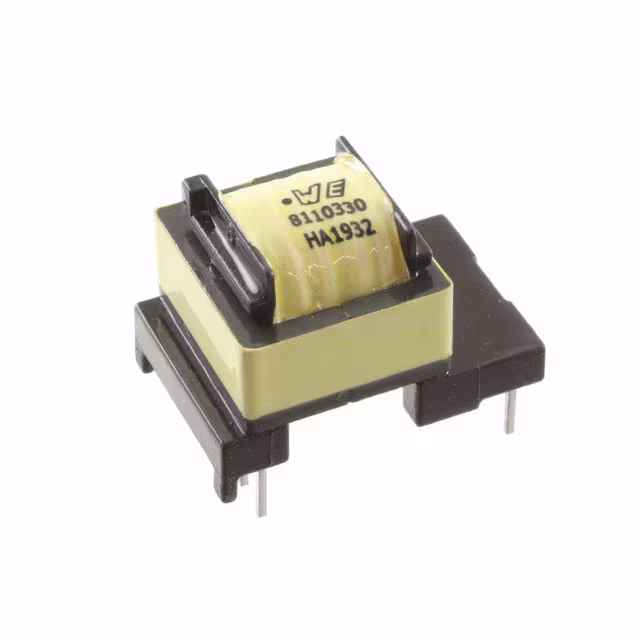

7508110330 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	6,401	6.05	- + RFQ	Datasheet	Tray	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	-	4500Vrms	-	-	-40°C ~ 125°C	Through Hole	-	0.575 (14.60mm)	-

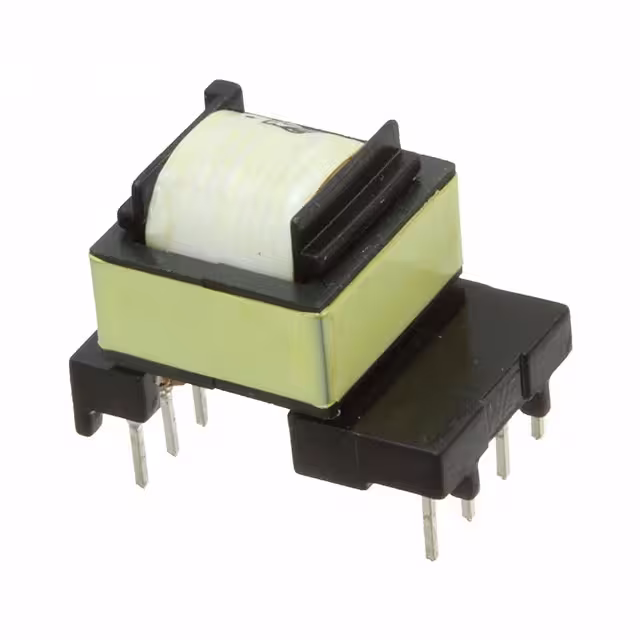

7508110333 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	7,740	6.05	- + RFQ	Datasheet	Tray	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	-	4500Vrms	-	-	-40°C ~ 125°C	Through Hole	-	0.575 (14.60mm)	-
7508110419 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	9,499	6.05	- + RFQ	Datasheet	Tray	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	-	4500Vrms	-	-	-40°C ~ 125°C	Through Hole	-	0.575 (14.60mm)	-
7508110420 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	9,275	6.05	- + RFQ	Datasheet	Tray	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	-	4500Vrms	-	-	-40°C ~ 125°C	Through Hole	-	0.575 (14.60mm)	-
PH0801CNLT XFMR, ER19 PLANAR, 4:4:4, SMT Pulse Electronics Power	7,877	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0803CNLT XFMR, ER19 PLANAR, 5:5:4:3, SMT Pulse Electronics Power	6,563	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0804CNLT XFMR, ER19 PLANAR, 5:6:4, SMT Pulse Electronics Power	9,182	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0805CNLT XFMR, ER19 PLANAR, 6:6:4, SMT Pulse Electronics Power	6,221	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0806CNLT XFMR, ER19 PLANAR, 4:4:1:1, SMT Pulse Electronics Power	8,562	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0807CNLT XFMR, ER19 PLANAR, 4:5:1:1, SMT Pulse Electronics Power	9,148	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0808CNLT XFMR, ER19 PLANAR, 5:5:1:1, SMT Pulse Electronics Power	5,053	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0809CNLT XFMR, ER19 PLANAR, 5:6:1:1 SMT Pulse Electronics Power	7,822	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0810CNLT XFMR, ER19 PLANAR, 6:6:1:1 SMT Pulse Electronics Power	8,951	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0811CNLT XFMR, ER19 PLANAR, 4:4:2:1, SMT Pulse Electronics Power	6,291	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0812CNLT XFMR, ER19 PLANAR, 4:5:2:1, SMT Pulse Electronics Power	9,600	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0813CNLT XFMR, ER19 PLANAR, 5:5:2:1, SMT Pulse Electronics Power	9,127	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0814CNLT XFMR, ER19 PLANAR, 5:6:2:1, SMT Pulse Electronics Power	6,835	6.79	- + RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
