| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT72410PURELAY REED SPST-NO 2A 24V |
3,774 | 69.12 |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT72410SURELAY REED SPST-NO 2A 24V |
3,429 | 69.12 |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT72410TURELAY REED SPST-NO 2A 24V |
4,823 | 69.12 |
RFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DBT70510TRELAY REED HV 10KV N/C 5VDC PCB |
4,830 | 70.30 |
RFQ |
Datasheet |
Bulk | D | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 131.6 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71210TRELAY REED HV 10KV N/C 12VDC PCB |
4,680 | 70.30 |
RFQ |
Datasheet |
Bulk | D | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72410TRELAY REED HV 10KV N/C 24VDC PCB |
3,909 | 70.30 |
RFQ |
Datasheet |
Bulk | D | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|

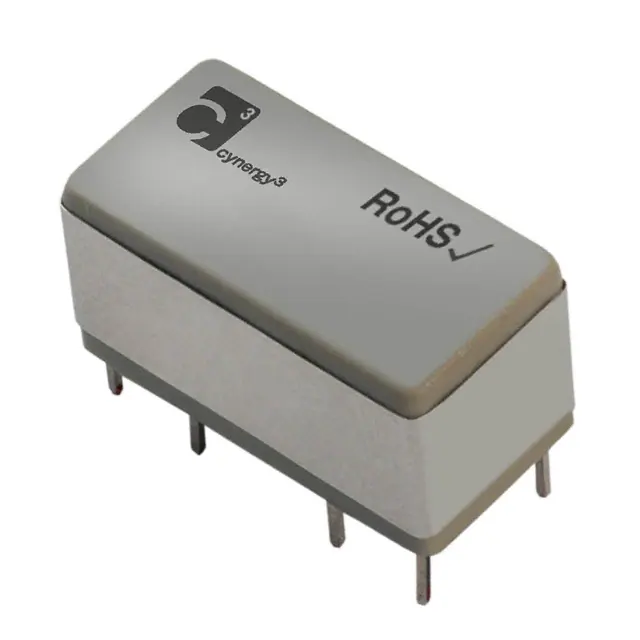

TLR212SMRELAY REED SPST-NO 500MA 12V |
4,509 | 72.07 |
RFQ |
Datasheet |
Bulk | 2 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 300VAC, 300VDC - Max | 7.8 mA | Latching, Dual Coil | - | PC Pin | - | 7 VDC | - | 1 ms | 0.5 ms | -40°C ~ 100°C |
|
DBR71210F-HRRELAY REED SPST-NC 3A 12V |
1,816 | 74.25 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBR72410F-HRRELAY REED SPST-NC 3A 24V |
2,556 | 74.25 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 26 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT70510F-HRRELAY REED SPST-NC 2A 5V |
2,333 | 76.99 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71210F-HRRELAY REED SPST-NC 2A 12V |
2,995 | 76.99 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72410F-HRRELAY REED SPST-NC 2A 24V |
2,978 | 76.99 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 26 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
HE12-1B83RELAY REED SPST 3A 12V |
4,907 | 77.39 |
RFQ |
Datasheet |
Bulk | HE | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
DAT70515-HRRELAY REED SPST-NO 2A 5V |
2,599 | 78.01 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT70515FRELAY REED SPST-NO 2A 5V |
1,276 | 78.49 |
RFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT70515PRELAY REED SPST-NO 2A 5V |
1,582 | 78.49 |
RFQ |
Datasheet |
Tray | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DBT70510PURELAY REED SPST-NC 2A 5V |
3,085 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT70510SURELAY REED SPST-NC 2A 5V |
1,679 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT70510TURELAY REED SPST-NC 2A 5V |
2,139 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71210PURELAY REED SPST-NC 2A 12V |
4,661 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
