| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

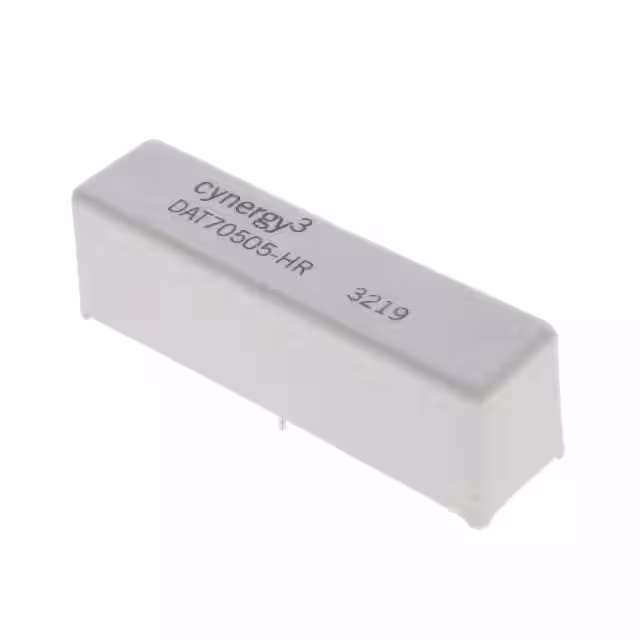

DAT70505-HRRELAY REED 5KV 5V SPST-NO |
3,730 | 38.62 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
D1-12-CMRELAY REED C/O 12V |
4,158 | 40.58 |
RFQ |
Datasheet |
Bulk | D1 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 35.3 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 65°C |
|
|
D1-24-CMRELAY REED C/O 24V |
4,603 | 40.58 |
RFQ |
Datasheet |
Bulk | D1 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 26.7 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 65°C |
|
|
DBR72405URELAY REED N/C 5KV 24V |
1,540 | 44.65 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DAR70505PURELAY REED SPST-NO 5KV 5V |
4,892 | 45.48 |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

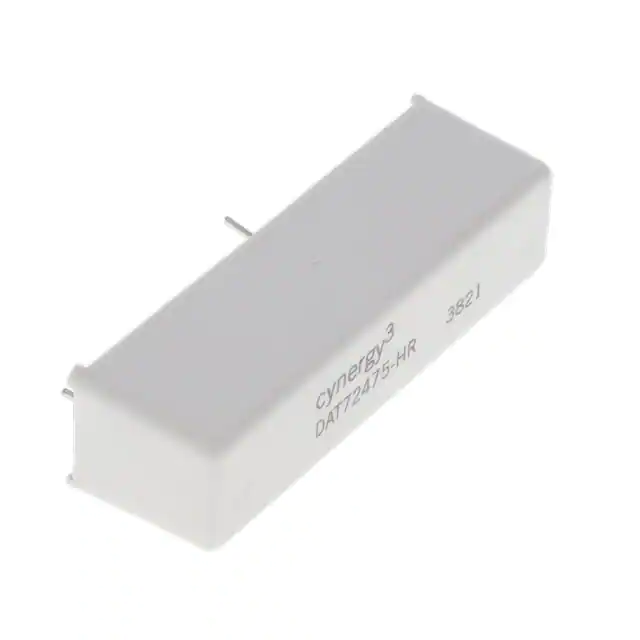

DAT72475-HRRELAY REED 7.5KV 24V SPST-NO |
2,838 | 46.89 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

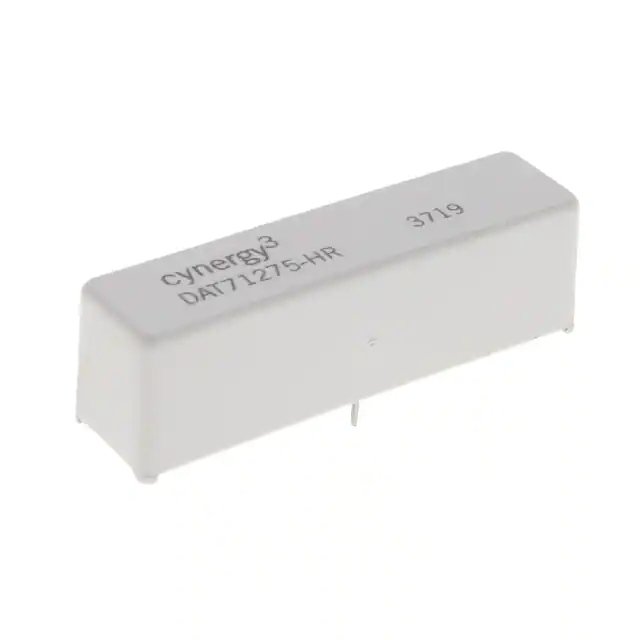

DAT71275-HRRELAY REED 7.5KV 12V SPST-NO |
2,518 | 46.89 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT72405F-HRRELAY REED 5KV 24V SPST-NO |
3,073 | 47.41 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71205PURELAY REED SPST-NO 5KV 12V |
2,815 | 47.41 |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT200-24RELAY REED SPST-NO 3A 24V |
3,854 | 53.97 |
RFQ |
Datasheet |
Bulk | D200 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 31 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 6 ms | 1 ms | -20°C ~ 70°C |
|
|
DBR70575-HRRELAY REED 7.5KV 5V SPST-NC |
1,826 | 54.27 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|

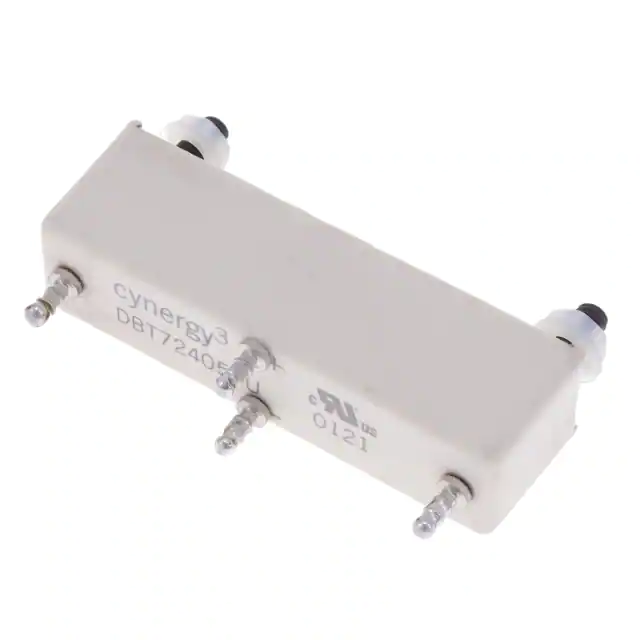

DBT72405PURELAY REED SPST-NC 5KV 24V |
4,570 | 55.44 |
RFQ |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
|
DAT71210URELAY REED SPST-NO 2A 12V |
4,371 | 56.29 |
RFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71275F-HRRELAY REED 7.5KV 12V SPST-NO |
3,145 | 57.58 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR70510PRELAY REED SPST-NO 3A 5V |
1,611 | 57.62 |
RFQ |
Datasheet |
Tray | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR72410SRELAY REED SPST-NO 3A 24V |
1,622 | 57.62 |
RFQ |
Datasheet |
Tray | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT70510FRELAY REED SPST-NO 2A 5V |
2,277 | 60.09 |
RFQ |
Datasheet |
Tray | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
HE24-1A83-02RELAY REED SPST 3A 24V |
1,521 | 66.35 |
RFQ |
Datasheet |
Tube | HE | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 23.1 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.5 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|

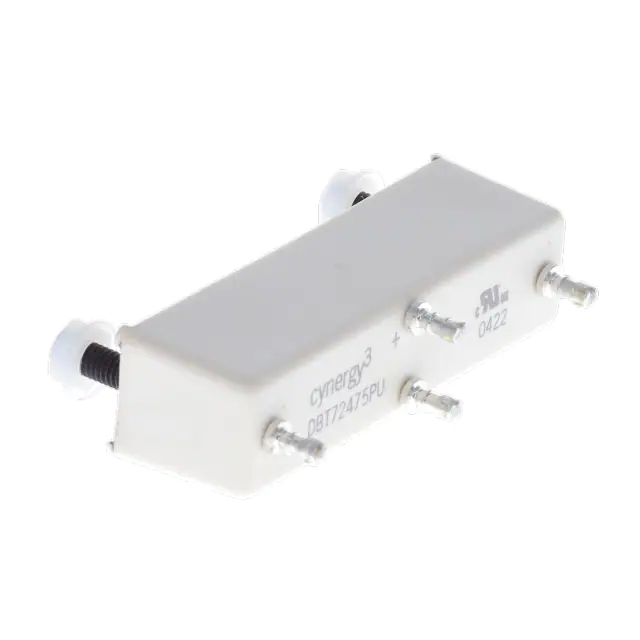

DBT72475PURELAY REED SPST-NC 7.5KV 24V |
3,774 | 67.31 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71210URELAY REED SPST-NC 2A 12V |
1,308 | 68.01 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
