Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
HM2106NLT MDL, SIN, XFMR, 1:1, 4.3KV, SMT Pulse Electronics Network	346	1096.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	135µH	-	1:1	Surface Mount	0.335 L x 0.524 W (8.50mm x 13.31mm)
VMT40DR-201S2P4 PULSE TRANSFORMERS FOR BMS, VMT4 TDK Corporation	9,826	3.98	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VMT	Active	-	150µH	-	1:1	Surface Mount	0.425 L x 0.335 W (10.80mm x 8.50mm)	0.157 (4.00mm)
PA1130NLT XFRMR 3.3V 3W 500UH POE EP7 SMD Pulse Electronics Power	8,870	4.01	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP7	Active	Isolation and Data Interface (Encapsulated)	500µH	-	1:0.083:0.208	Surface Mount	0.420 L x 0.525 W (10.67mm x 13.34mm)	0.365 (9.27mm)
PM2190.034NLT XFMR PWR .750 UH EP7 SM NPB Pulse Electronics Power	9,873	4.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2190.XXXNL	Active	Isolation and Data Interface (Encapsulated)	750µH	66VµS	3CT:4CT	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
PM2190.011NLT XFMR PWR .750 UH EP7 SM NPB Pulse Electronics Power	7,753	4.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2190.XXXNL	Active	Isolation and Data Interface (Encapsulated)	750µH	66VµS	1CT:1CT	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)

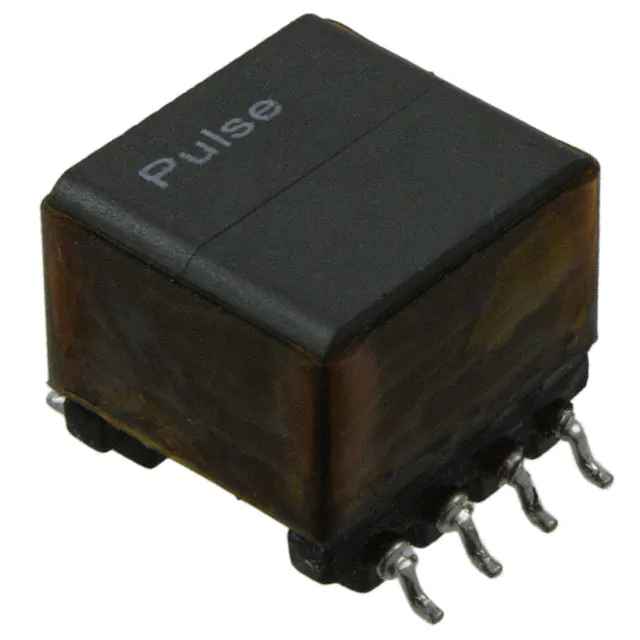

PA1277NLT XFRMR 3.3V 10W 20.4UH POE EP10 Pulse Electronics Power	9,148	4.09	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP10	Active	Isolation and Data Interface (Encapsulated)	20.4µH	-	1:0.222:0.555	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA1282NLT XFRMR 3.3V 7W 155UH POE EP10 SMD Pulse Electronics Power	7,480	4.09	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP10	Active	Isolation and Data Interface (Encapsulated)	155µH	-	1:0.182:0.682	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
H1604CG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	9,959	2.46	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.10mm)	0.252 (6.40mm)

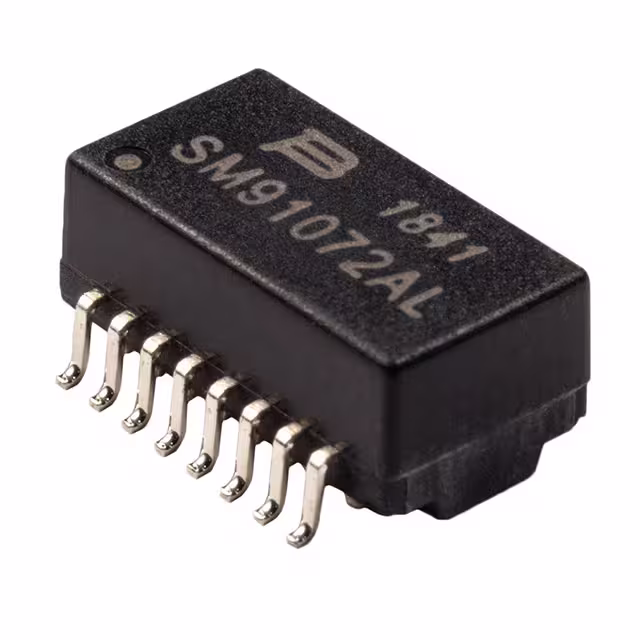

SM91072AL-E XFMR LAN 10/100 BASE-T 1:1 350UH Bourns Inc.	7,355	4.72	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
PA1528NLT XFRMR 15V 27W 28.9UH POE EP13 Pulse Electronics Power	6,899	4.33	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13	Active	Isolation and Data Interface (Encapsulated)	28.9µH	-	1:0.470:0.294	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)

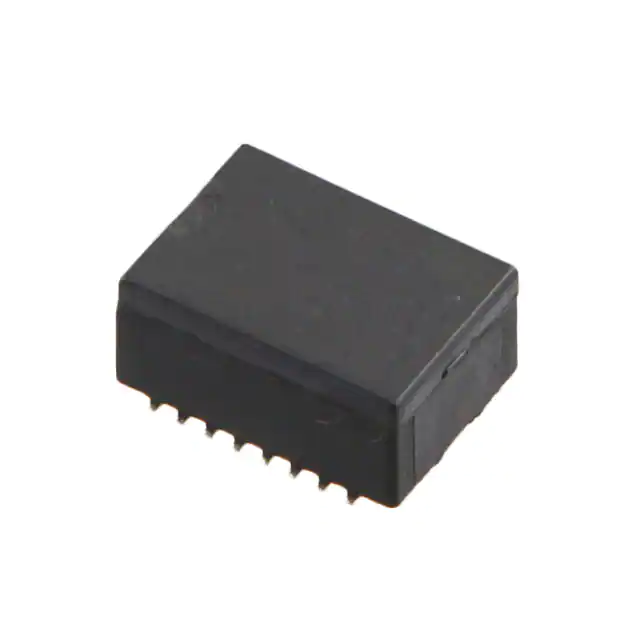

XFVOIP-05 LAN XFMR 10/100 POE+ XFMRS	7,431	2.60	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.385 W (12.70mm x 9.78mm)	0.245 (6.22mm)
XFATM9B LAN XFMR 10/100 XFMRS	6,458	2.60	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.510 L x 0.385 W (12.95mm x 9.78mm)	0.245 (6.22mm)
PH9185.038NLT TRANSFORMER 310UH 3:8 SMD Pulse Electronics Power	9,999	3.97	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
G1801DG SINGLE LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	5,619	2.74	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	0.819 L x 0.402 W (17.30mm x 9.00mm)	0.467 (11.85mm)

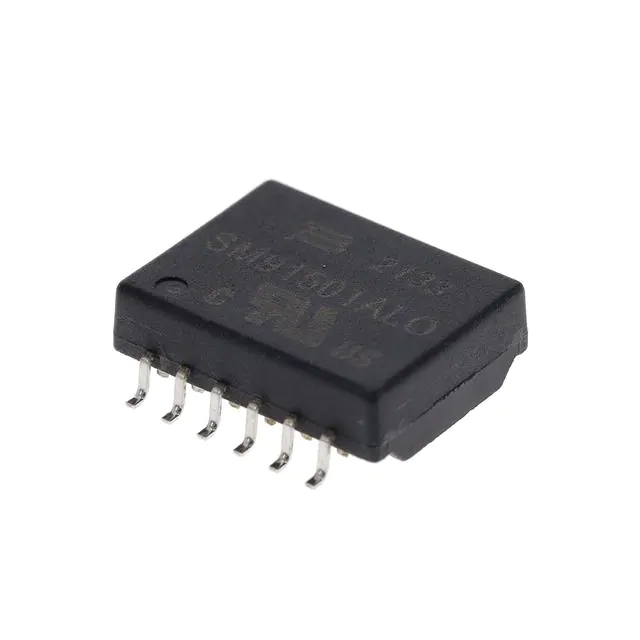

SM91501ALO-E BMS TRANSFORMER/CMC, 12PIN, DUAL Bourns Inc.	8,100	4.83	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	-	150µH	-	1:1	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
H1601CG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	8,642	2.80	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.10mm)	0.244 (6.20mm)

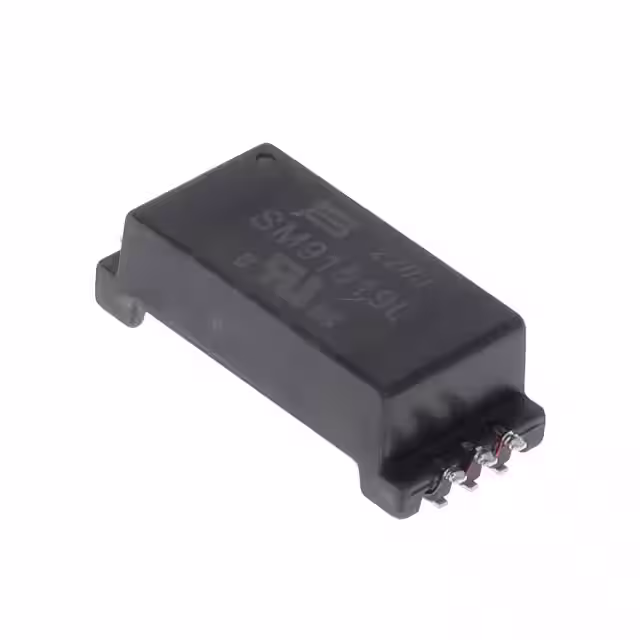

SM91519L-E BMS TRANSFORMER/CMC,6PIN,SGL,6.4 Bourns Inc.	8,913	5.16	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-
B78416A2430A003 P301598 EP6 SMD TRANSFORMER EPCOS - TDK Electronics	8,639	5.13	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	4.2mH	-	1:1:15	Through Hole	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)
B78416A2433A003 P100953 EP6 SMD TRANSFORMER EPCOS - TDK Electronics	6,454	5.13	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	5mH	-	1:1:10.1	Through Hole	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)

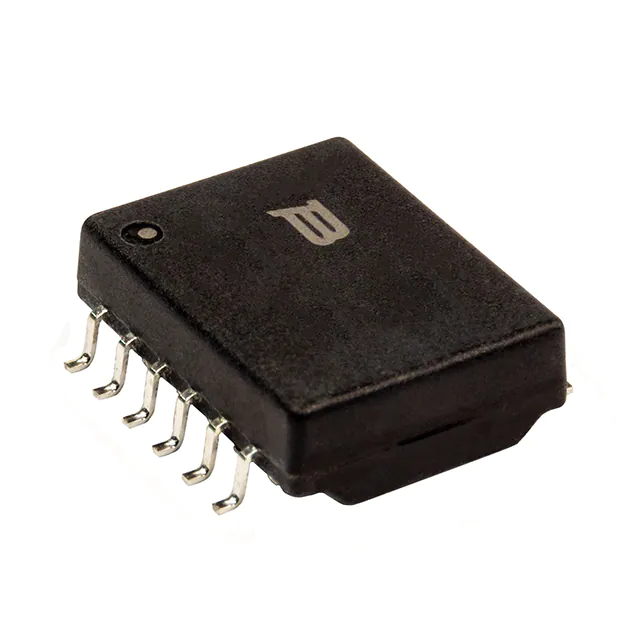

SM91509AL-E XFRMR PULSE 1:1 600UH SMD Bourns Inc.	6,356	5.17	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	-	600µH	-	1:1	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
