Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
DFL1553-3 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	2,279	85.75	- + RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DGL1553-3 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,517	85.75	- + RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DGL1553-69 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	1,748	86.17	- + RFQ		Tube	*	Active	-	-	-	-	-	-	-
TQ1553-3 TRANSFORMER PBC iNRCORE, LLC	1,189	86.95	- + RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
SMQT1553-10 TRANSFORMER PBC iNRCORE, LLC	3,702	89.75	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)

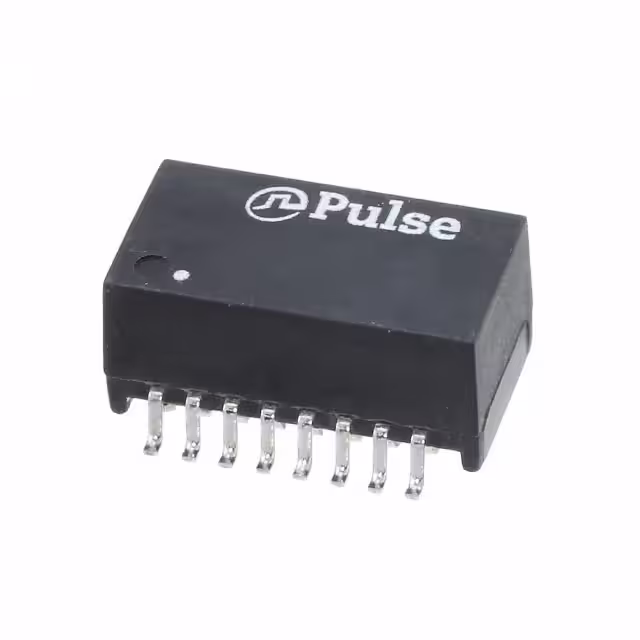

HM1225NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	14,750	0.00	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	200µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)

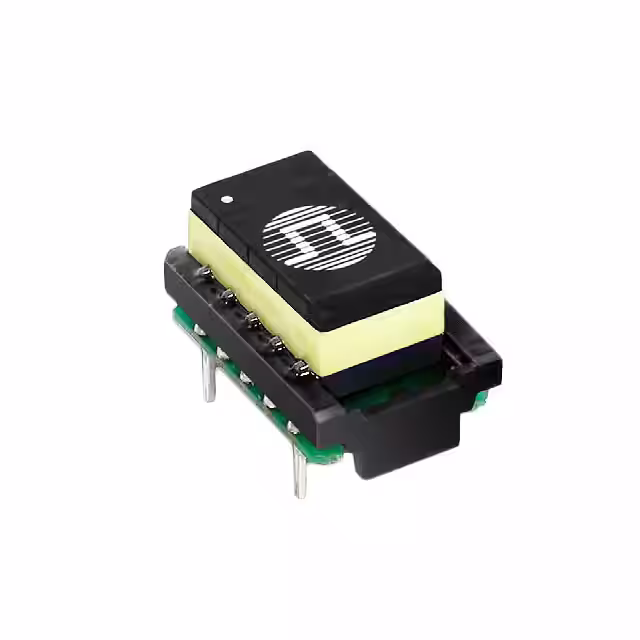

B8845NL PULSE XFMR ADSL/VDSL2 4B3T Pulse Electronics Network	1,944	13.34	- + RFQ	Datasheet	Tray	SmartER Splitter™	Active	ADSL, VDSL	-	-	-	Through Hole	0.531 L x 0.839 W (13.50mm x 21.30mm)	0.453 (11.50mm)

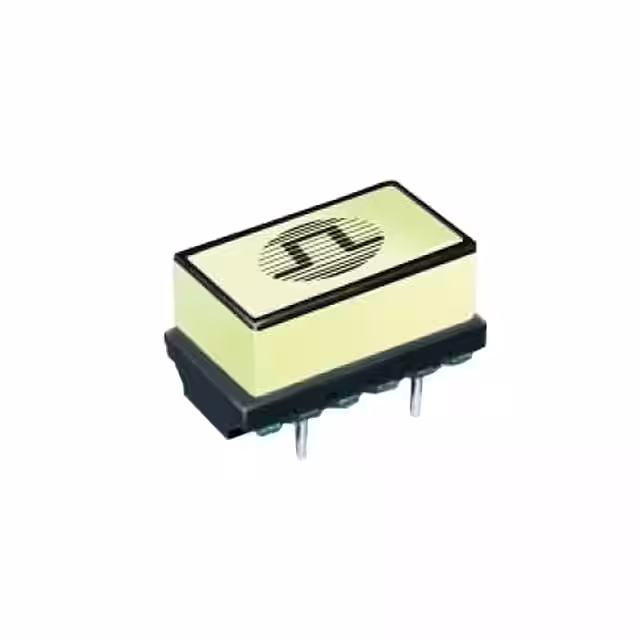

B8813NL PULSE XFMR ADSL/VDSL2 Pulse Electronics Network	12,782	0.00	- + RFQ	Datasheet	Tray	SmartER Splitter™	Active	ADSL, VDSL	-	-	-	Through Hole	0.551 L x 0.996 W (14.00mm x 25.30mm)	0.551 (14.00mm)
H1164FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	14,660	0.00	- + RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110 L x 0.608 W (28.19mm x 15.44mm)	0.225 (5.72mm)
H1190FNL PULSE XFMR 1CT:1CT 400UH Pulse Electronics Network	14,955	0.00	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	400µH	-	1CT:1CT	Surface Mount	0.300 L x 0.340 W (7.62mm x 8.64mm)	0.225 (5.72mm)

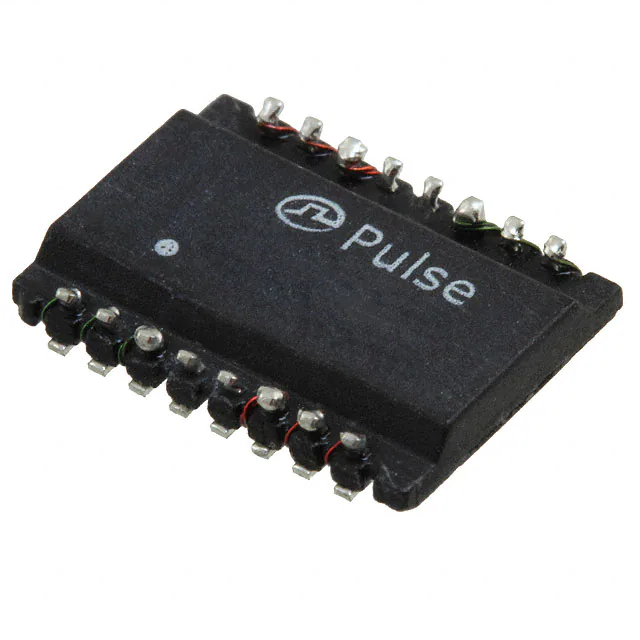

H0013FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	6,765	5.05	- + RFQ	Datasheet	Tube	-	Active	-	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.488 L x 0.365 W (12.40mm x 9.27mm)	0.073 (1.85mm)
631B TRANSFORMER PULSE 1MHZ .25DCR Hammond Manufacturing	3,572	0.00	- + RFQ	Datasheet	Bulk	631	Obsolete	SCR and Triac Trigger (Encapsulated)	1mH	-	1:1:1	Through Hole	0.984 L x 0.787 W (25.00mm x 20.00mm)	0.512 (13.00mm)
602C TRANSFORMER PULSE 219UH .5DCR Hammond Manufacturing	2,545	0.00	- + RFQ	Datasheet	Bulk	602	Obsolete	Isolation and Data Interface (Encapsulated)	219µH	-	1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
602A TRANSFORMER PULSE 2060UH 1.5DCR Hammond Manufacturing	2,012	0.00	- + RFQ	Datasheet	Bulk	602	Obsolete	Isolation and Data Interface (Encapsulated)	2.06mH	-	1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
602GA TRANSFORMER PULSE 2.7UH .2DCR Hammond Manufacturing	2,425	0.00	- + RFQ	Datasheet	Bulk	602	Obsolete	Isolation and Data Interface (Encapsulated)	2.7µH	-	2:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601F TRANSFORMER PULSE 9.5UH .4DCR Hammond Manufacturing	2,090	0.00	- + RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	9.5µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601E TRANSFORMER PULSE 23UH .3DCR Hammond Manufacturing	3,175	0.00	- + RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	23µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
601C TRANSFORMER PULSE 219 UH .5DCR Hammond Manufacturing	3,605	0.00	- + RFQ	Datasheet	Bulk	601	Obsolete	Isolation and Data Interface (Encapsulated)	219µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
611B TRANSFORMER PULSE 17.2MH 1.26DCR Hammond Manufacturing	2,500	0.00	- + RFQ	Datasheet	Bulk	611	Obsolete	SCR and Triac Trigger (Encapsulated)	17.2mH	-	1:1:1	Through Hole	-	0.690 (17.53mm)
610C TRANSFORMER PULSE 12MH 4DCR Hammond Manufacturing	3,683	0.00	- + RFQ	Datasheet	Bulk	610	Obsolete	Isolation and Data Interface (Encapsulated)	12mH	-	2:1:1	Through Hole	0.591 L x 0.591 W (15.00mm x 15.00mm)	0.622 (15.80mm)
