Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
266S24 PWR XFMR LAMINATED 240VA CHAS MT Hammond Manufacturing	530	131.74	- + RFQ	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 12V, Series 24V	Parallel 20A, Series 10A	Dual	Dual	No	240VA	Chassis Mount	Wire Leads	87.38mm L x 91.44mm W	109.22mm	2000Vrms
290MX PWR XFMR LAMINATED CHAS MT Hammond Manufacturing	602	134.96	- + RFQ	Datasheet	Box	290	Active	Laminated Core	120V, 240V	550V, 6.3V, 5V	230mA, 6A, 3A	Dual	Triple	Yes	-	Chassis Mount	Wire Leads	63.50mm L x 71.55mm W	77.80mm	-

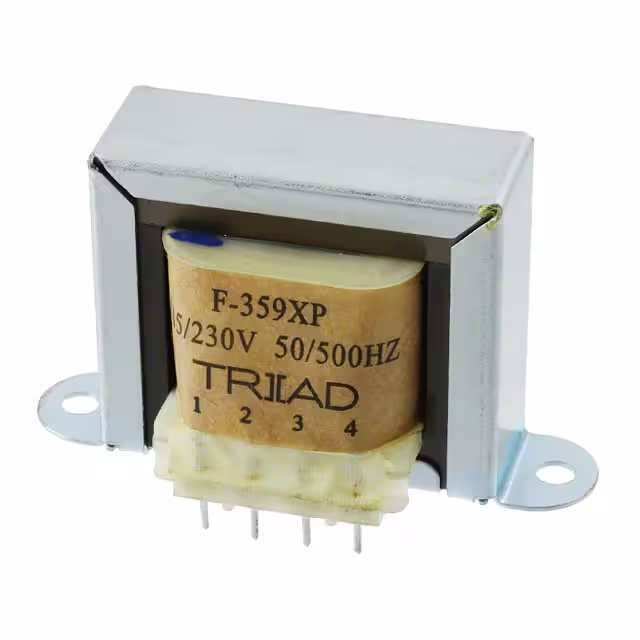

F-359XP PWR XFMR LAMINATED 10VA CHAS MT Triad Magnetics	2,630	13.27	- + RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 900mA, Series 450mA	Dual	Dual	No	10VA	Chassis Mount	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms
161GA10 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	4,818	13.29	- + RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 880mA, Series 440mA	Single	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	42.93mm L x 31.75mm W	36.83mm	2000Vrms
FP12-475 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,199	13.42	- + RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 950mA, Series 475mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms

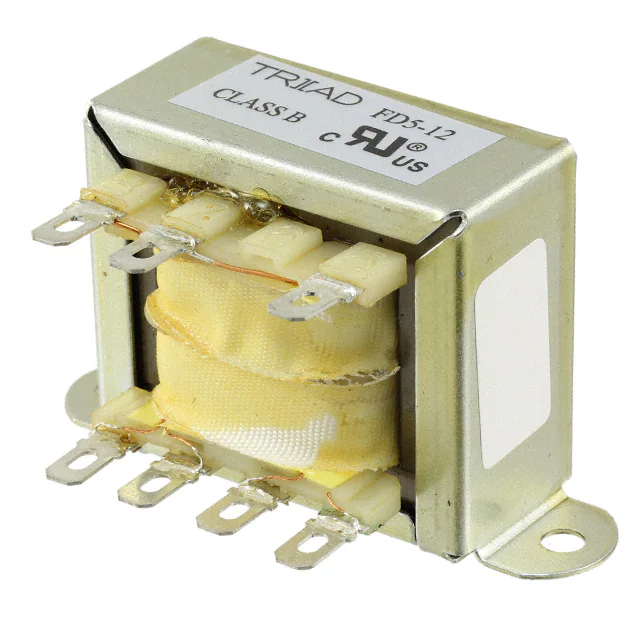

FD5-12 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	4,544	13.55	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	12.6V	1A	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

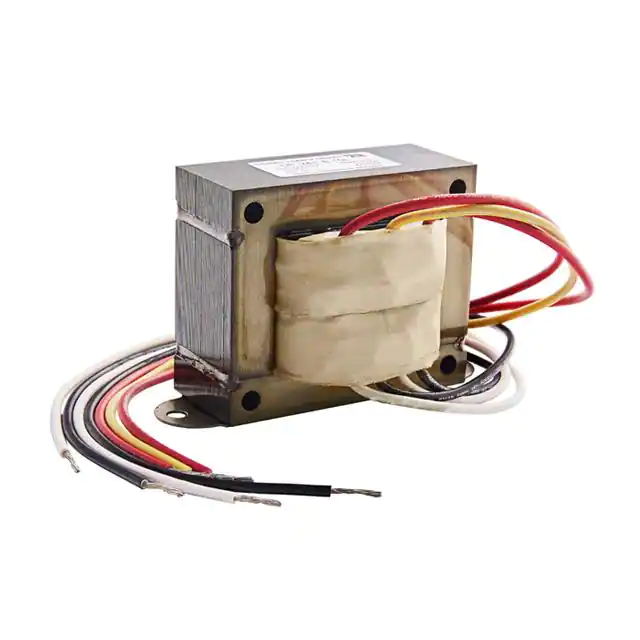

DP-241-8-56 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	4,123	29.44	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	56V	1.8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms

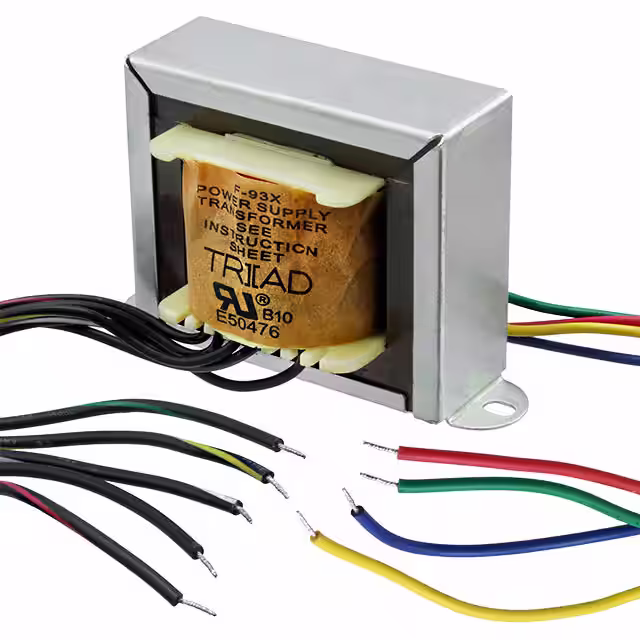

F-93X PWR XFMR LAMINATED CHASSIS MT Triad Magnetics	1,983	30.32	- + RFQ	Datasheet	Box	Universal	Active	Laminated Core	115V	10V, 20V, 40V	750mA	Single, Multiple Taps	Single, Multiple Taps	No	Varies	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	66.04mm	1500Vrms
A41-80-24L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	4,545	30.35	- + RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 6.6A, Series 3.3A	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
DP-241-8-24L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,776	30.45	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	24V	4A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms

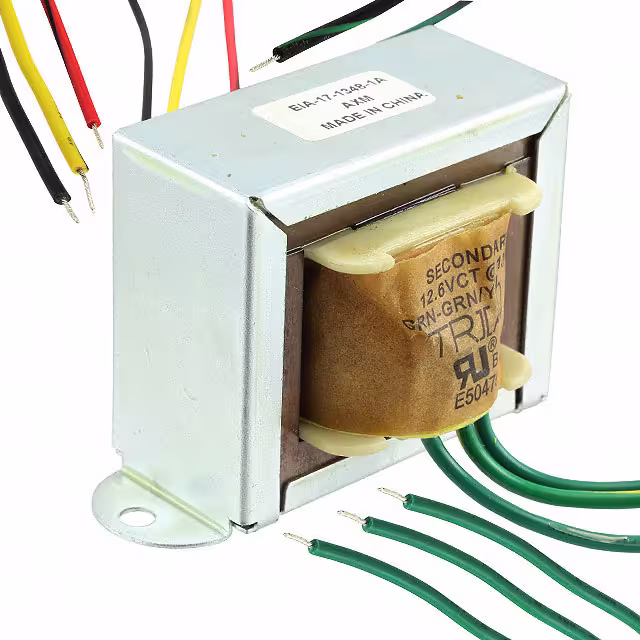

F-325X PWR XFMR LAMINATED 18.9VA CHAS Triad Magnetics	4,246	17.14	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	12.6V	1.5A	Dual	Single	Yes	18.9VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
16-150-LPI PWR XFMR SEMI-TORO 2.5VA TH Signal Transformer	4,901	17.54	- + RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	18.30mm	4000Vrms
F120-300 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,769	18.11	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 600mA, Series 300mA	Single	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	2500Vrms
F48-750 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,142	18.11	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 1.5A, Series 750mA	Single	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	2500Vrms
272JX PWR XFMR LAMINATED 236VA CHAS MT Hammond Manufacturing	418	135.68	- + RFQ	Datasheet	Bulk	272	Active	Laminated Core	115V	600V, 6.3V, 5V	287mA, 8A, 4A	Single	Triple	Yes	236VA	Chassis Mount	Wire Leads	95.25mm L x 101.60mm W	115.82mm	2000Vrms
MPI-200-24 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	686	137.30	- + RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 12V, Series 24V	Parallel 16.7A, Series 8.3A	Dual, Multiple Taps	Dual	No	200VA	Chassis Mount	Terminal Block	95.30mm L x 113.30mm W	93.10mm	4000Vrms
714A PWR XFMR LAMINATED 180VA CHAS MT Hammond Manufacturing	477	139.70	- + RFQ	Datasheet	Bulk	700	Active	Laminated Core	117V, 234V	1020V	170mA	Single	Single	Yes	180VA	Chassis Mount	Wire Leads	95.25mm L x 79.50mm W	95.25mm	-
166T24 PWR XFMR LAMINATED 288VA CHAS MT Hammond Manufacturing	729	142.17	- + RFQ	Datasheet	Bulk	166	Active	Laminated Core	117V	24V	12A	Single	Single	Yes	288VA	Chassis Mount	Wire Leads	95.25mm L x 90.42mm W	117.80mm	2000Vrms
260J PWR XFMR LAMINATED 152VA CHAS MT Hammond Manufacturing	512	142.50	- + RFQ	Datasheet	Box	260	Active	Laminated Core	100V, 120V, 220V, 240V	650V, 6.3V, 5V	173mA, 4A, 2A	Dual, Multiple Taps	Triple	Yes	152VA	Chassis Mount	Wire Leads	95.25mm L x 79.50mm W	79.50mm	-
291EEX PWR XFMR LAMINATED CHAS MT Hammond Manufacturing	775	142.67	- + RFQ	Datasheet	Box	291	Active	Laminated Core	240V	660V, 6.5V	276mA, 3.15A	Single	Dual	Yes	-	Chassis Mount	Wire Leads	-	-	-
