Производитель. Часть #	Доступность	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
LP20-125B26 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	10,569	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 10V, Series 20V	Parallel 250mA, Series 125mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
LP34-75B28 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	14,653	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 17V, Series 34V	Parallel 150mA, Series 75mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
LP30-85B125 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	11,559	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 15V, Series 30V	Parallel 170mA, Series 85mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
LP120-20B32 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	13,838	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 60V, Series 120V	Parallel 40mA, Series 20mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
LP24-100B27 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	14,513	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
LP88-28B31 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	11,053	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 44V, Series 88V	Parallel 56mA, Series 28mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
LP10-250B23 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	11,723	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
241-5-12A22 PWR XFMR LAMINATED 12VA CHAS MT Pulse Electronics Power	10,459	- + RFQ	Datasheet	Bulk	Chassis-Tran	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 41.40mm W	35.05mm	2500Vrms
241-5-10A21 PWR XFMR LAMINATED 12VA CHAS MT Pulse Electronics Power	12,127	- + RFQ	Datasheet	Bulk	Chassis-Tran	Active	Laminated Core	115V	10V	1.2A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 41.40mm W	35.05mm	2500Vrms
241-5-36A27 PWR XFMR LAMINATED 12VA CHAS MT Pulse Electronics Power	14,258	- + RFQ	Datasheet	Bulk	Chassis-Tran	Active	Laminated Core	115V	36V	350mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 41.40mm W	35.05mm	2500Vrms
241-5-20A24 PWR XFMR LAMINATED 12VA CHAS MT Pulse Electronics Power	14,909	- + RFQ	Datasheet	Bulk	Chassis-Tran	Active	Laminated Core	115V	20V	600mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 41.40mm W	35.05mm	2500Vrms
LP18-135B105 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	11,773	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 9V, Series 18V	Parallel 270mA, Series 135mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
LP56-45B30 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	14,137	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms
241-5-48A28 PWR XFMR LAMINATED 12VA CHAS MT Pulse Electronics Power	10,366	- + RFQ	Datasheet	Bulk	Chassis-Tran	Active	Laminated Core	115V	48V	250mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 41.40mm W	35.05mm	2500Vrms
PC-230-20B46 PWR XFMR LAMINATED 4.4VA TH Pulse Electronics Power	14,419	- + RFQ	Datasheet	Bulk	PC Plug-In	Active	Laminated Core	115V	Parallel 115V, Series 230V	Parallel 40mA, Series 20mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.28mm L x 31.75mm W	34.93mm	1500Vrms
PC-24-180B18 PWR XFMR LAMINATED 4.4VA TH Pulse Electronics Power	10,998	- + RFQ	Datasheet	Bulk	PC Plug-In	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 360mA, Series 180mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.28mm L x 31.75mm W	34.93mm	1500Vrms
DST4-56B34 PWR XFMR LAMINATED 6VA TH Pulse Electronics Power	11,735	- + RFQ	Datasheet	Bulk	Split Bobbin Plug-In	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 220mA, Series 110mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.40mm L x 33.27mm W	33.27mm	2500Vrms
DST4-36B26 PWR XFMR LAMINATED 6VA TH Pulse Electronics Power	10,681	- + RFQ	Datasheet	Bulk	Split Bobbin Plug-In	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.40mm L x 33.27mm W	33.27mm	2500Vrms
LP16-150B25 PWR XFMR SEMI-TORO 2VA TH Pulse Electronics Power	13,202	- + RFQ	Datasheet	Bulk	Low Profile Plug-In	Active	Semi-Toroidal	-	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	1500Vrms

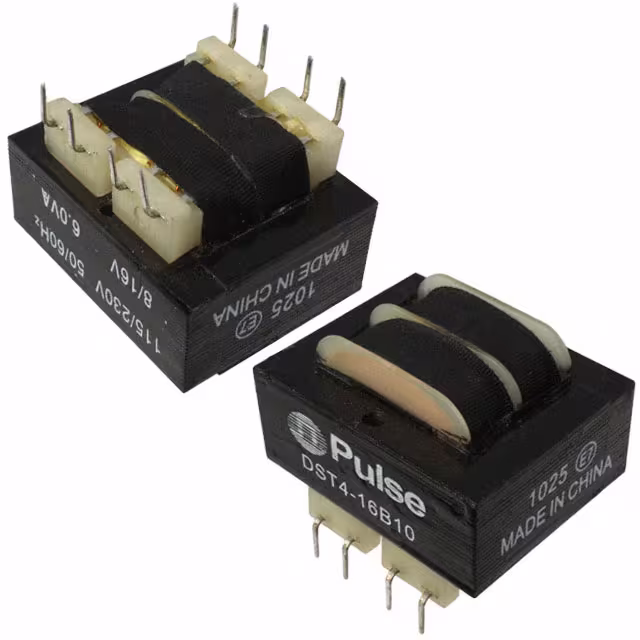

DST4-16B10 PWR XFMR LAMINATED 6VA TH Pulse Electronics Power	3,585	- + RFQ	Datasheet	Bulk	Split Bobbin Plug-In	Obsolete	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 800mA, Series 400mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.40mm L x 33.27mm W	33.27mm	2500Vrms
