Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
162G56 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	1,341	16.57	- + RFQ	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 440mA, Series 220mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms
160G40 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	4,838	16.60	- + RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 500mA, Series 250mA	Dual	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	49.28mm L x 36.58mm W	42.93mm	2000Vrms
160G56 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	3,166	16.60	- + RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 360mA, Series 180mA	Dual	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	49.28mm L x 36.58mm W	42.93mm	2000Vrms
160J10 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	4,319	16.60	- + RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Dual	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	49.26mm L x 36.58mm W	42.93mm	2000Vrms
F6-10 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,096	16.62	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	10V	3A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
14A-20-10 PWR XFMR LAMINATED 20VA TH Signal Transformer	1,523	16.65	- + RFQ	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms
F-344X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	1,327	17.14	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	12.6V	2A	Dual	Single	Yes	25.2VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms

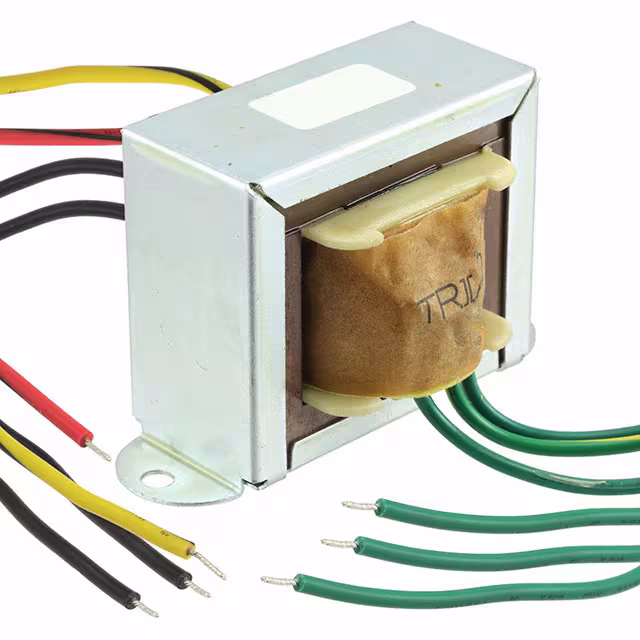

F-345X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	1,067	17.14	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	24V	1A	Dual	Single	Yes	24VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
FS48-750-C2 PWR XFMR LAMINATED 36VA TH Triad Magnetics	4,355	17.27	- + RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 1.5A, Series 750mA	Dual	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4200Vrms
LP-30-400 PWR XFMR SEMI-TORO 12VA TH Signal Transformer	1,574	17.52	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 800mA, Series 400mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms
LP-40-300 PWR XFMR SEMI-TORO 12VA TH Signal Transformer	1,807	17.52	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 600mA, Series 300mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms
40-150-LPI PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,312	17.69	- + RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 300mA, Series 150mA	Dual	Dual	No	6VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	22.70mm	4000Vrms

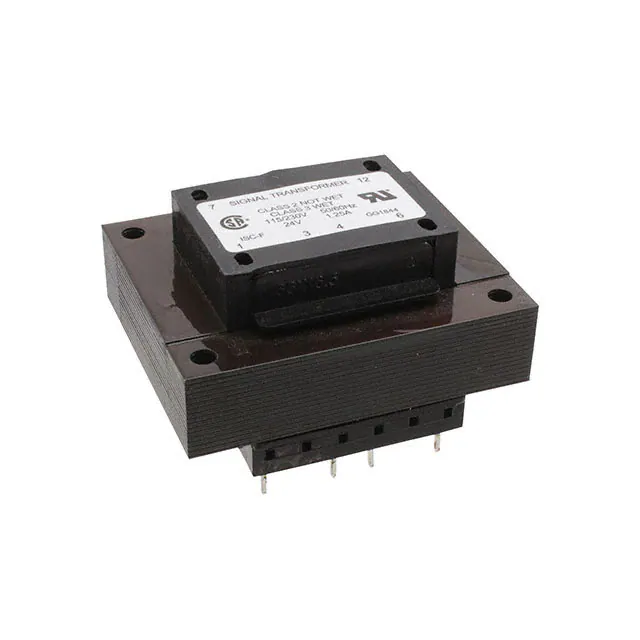

CL2-30-24 PWR XFMR LAMINATED 30VA TH Signal Transformer	2,140	18.02	- + RFQ	Datasheet	Bulk	CL2	Active	Laminated Core	115V, 230V	24V	1.25A	Dual	Single	No	30VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	39.70mm	4000Vrms
186C16 PWR XFMR LAMINATED 12.8VA CHAS Hammond Manufacturing	3,766	18.11	- + RFQ	Datasheet	Box	186	Active	Laminated Core	115V, 230V	16V	800mA	Dual	Single	Yes	12.8VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
F28-1300 PWR XFMR LAMINATED 36VA TH Triad Magnetics	3,409	18.11	- + RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 2.6A, Series 1.3A	Single	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	2500Vrms
PC-34-700 PWR XFMR LAMINATED 24VA TH Signal Transformer	4,746	18.14	- + RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 17V, Series 34V	Parallel 1.4A, Series 700mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
FD6-16 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	4,507	18.20	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	16V	2A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-28 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,294	18.20	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	28V	1.1A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-120 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	1,950	18.20	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	120V	250mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
L01-6302 PWR XFMR TORO 1.6VA TH Amgis, LLC	2,869	18.45	- + RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 134mA, Series 67mA	Dual	Dual	No	1.6VA	Through Hole	PC Pin	39.60mm L x 39.60mm W	18.50mm	4000Vrms
