| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH6345-X009OPTOISOLATOR 5.3KV TRANS 8SMD |
7,404 | 2.07 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 300ns, 300ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
LDA200SOPTOISO 3.75KV 2CH TRANS 8SMD |
7,355 | 2.33 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 33% @ 1mA | 1000% @ 1mA | 7µs, 20µs | - | AC, DC | Transistor | 30V | - | 1.2V | 1 mA | 500mV | -40°C ~ 85°C | Surface Mount |
|

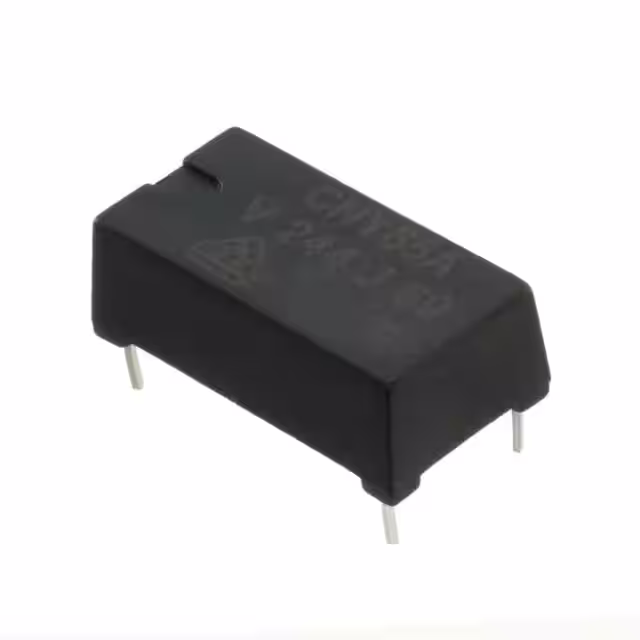

CNY65AOPTOISOLATOR 13.9KV TRANS 4-DIP |
9,563 | 2.54 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 13900VDC | 63% @ 10mA | 125% @ 10mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | -55°C ~ 85°C | Through Hole |
|
HCPL2531SOPTOISO 2.5KV 2CH TRANS 8SMD |
5,750 | 2.55 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2500Vrms | 19% @ 16mA | 50% @ 16mA | 450ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
LDA211OPTOISO 3.75KV 2CH DARLNG 8DIP |
5,060 | 2.66 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 300% @ 1mA | 30000% @ 1mA | 8µs, 345µs | - | DC | Darlington | 30V | - | 1.2V | 1 mA | 1V | -40°C ~ 85°C | Through Hole |
|
|
LDA210OPTOISO 3.75KV 2CH DARLNG 8DIP |
8,051 | 2.84 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 300% @ 1mA | 30000% @ 1mA | 8µs, 345µs | - | AC, DC | Darlington | 30V | - | 1.2V | 1 mA | 1V | -40°C ~ 85°C | Through Hole |
|
ILQ2-X009OPTOISO 5.3KV 4CH TRANS 16SMD |
5,077 | 2.90 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
HCPL4503SMOPTOISO 5KV TRANS W/BASE 8SMD |
6,231 | 3.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -40°C ~ 100°C | Surface Mount |
|
|
ILD755-1OPTOISO 5.3KV 2CH DARLNG 8-DIP |
5,924 | 3.12 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 750% @ 2mA | - | - | 50µs, 50µs | AC, DC | Darlington | 60V | - | 1.2V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
LOC117POPTOISOLATOR 3.75KV PHVOLT 8SMD |
5,930 | 3.28 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | -40°C ~ 85°C | Surface Mount |
|
|
LOC111SOPTOISOLATOR 3.75KV PHVOLT 8SMD |
6,878 | 3.28 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | -40°C ~ 85°C | Surface Mount |
|
|
LOC117OPTOISOLATOR 3.75KV PHVOLT 8DIP |
6,601 | 3.28 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | -40°C ~ 85°C | Through Hole |
|
HCPL-0701OPTOISO 3.75KV DARL W/BASE 8SOIC |
7,373 | 3.33 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
LOC112POPTOISOLATOR 3.75KV PHVOLT 8SMD |
7,060 | 3.42 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | -40°C ~ 85°C | Surface Mount |
|
|
LOC112OPTOISOLATOR 3.75KV PHVOLT 8DIP |
8,183 | 3.42 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | -40°C ~ 85°C | Through Hole |
|
ILQ74-X009OPTOISO 5.3KV 4CH TRANS 16SMD |
9,736 | 3.96 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 12.5% @ 16mA | - | 3µs, 3µs | - | DC | Transistor | 20V | - | 1.3V | 60 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
H11F3SMOPTOISOLTR 7.5KV PHOTO FET 6-SMD |
9,129 | 4.31 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 7500Vpk | - | - | 45µs, 45µs (Max) | - | DC | MOSFET | 15V | - | 1.3V | 60 mA | - | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-5500OPTOISO 1.5KV TRANS W/BASE 8DIP |
4,551 | 76.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | DC | Transistor with Base | 20V | 8mA | 1.55V | 20 mA | - | -55°C ~ 125°C | Through Hole |
|
|
HCPL-5730OPTOISO 1.5KV 2CH DARLNG 8-DIP |
504 | 111.61 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
CNY17-2XSMOPTOISO 5.3KV TRANS W/BASE 6SMD |
14,461 | 0.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
