| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTV-817S-AOPTOISOLATR 5KV TRANSISTOR 4-SMD |
14,156 | 0.44 |
RFQ |
Datasheet |
Tube | LTV-8x7 | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
FOD2743ATRANSISTOR OUTPUT OPTOCOUPLER |
3,243 | 0.47 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 100% @ 1mA | - | - | DC | Transistor | 70V | 50mA | 1.07V | - | 400mV | -40°C ~ 85°C | Through Hole |
|
|

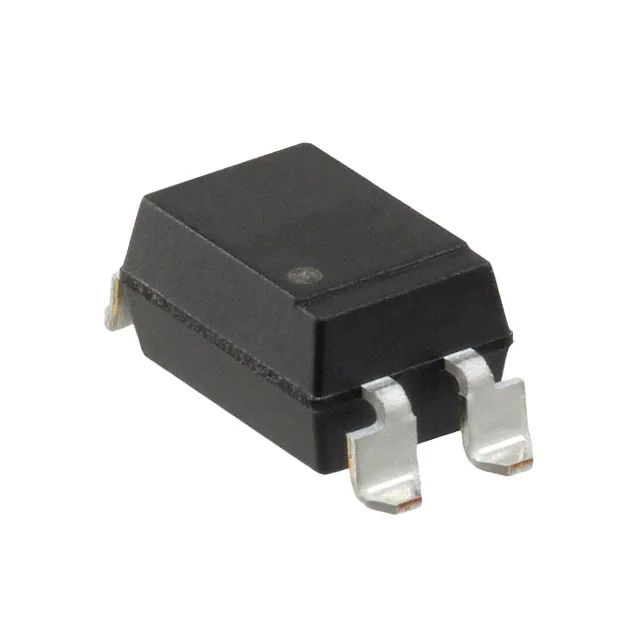

PS2381-1Y-F3-AXOPTOISOLATOR 5KV TRANS 4SMD |
5,497 | 1.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 4µs, 5µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 300mV | -40°C ~ 115°C | Surface Mount |
|
|
6N139LOGIC IC OUTPUT OPTOCOUPLER |
10,189 | 0.51 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 5300Vrms | 500% @ 1.6mA | - | 600ns, 1.5µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
PS2561AL2-1-E3-ATRANSISTOR OUTPUT OPTOCOUPLER |
2,188 | 0.53 |
RFQ |
Datasheet |
Bulk | NEPOC | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2561AL2-1-V-E3-ATRANSISTOR OUTPUT OPTOCOUPLER |
2,376 | 0.53 |
RFQ |
Datasheet |
Bulk | NEPOC | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
PS2581AL2-E3-ATRANSISTOR OUTPUT OPTOCOUPLER |
3,317 | 0.53 |
RFQ |
Datasheet |
Bulk | NEPOC | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
6N138SLOGIC IC OUTPUT OPTOCOUPLER |
3,457 | 0.53 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 300% @ 1.6mA | - | 1.5µs, 7µs | - | DC | Darlington with Base | 7V | 60mA | 1.3V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
6N135LOGIC IC OUTPUT OPTOCOUPLER |
3,332 | 0.55 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 7% @ 16mA | 50% @ 16mA | 350ns, 350ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
6N138LOGIC IC OUTPUT OPTOCOUPLER |
2,291 | 0.57 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 300% @ 1.6mA | - | 1.35µs, 7.6µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
6N138LOGIC IC OUTPUT OPTOCOUPLER |
13,481 | 0.57 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 5300Vrms | 300% @ 1.6mA | - | 2µs, 2µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
PS2501-1-M-AOPTOISOLATOR 5KV TRANS 4DIP |
11,837 | 0.58 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 80% @ 5mA | 240% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
HCPL-814-000EOPTOISOLATOR 5KV TRANSISTOR 4DIP |
13,741 | 0.59 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
OCI934OPTOCOUPLERS/ISOLATORS |
13,195 | 0.59 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
FOD817300WOPTOISOLATOR 5KV TRANSISTOR 4DIP |
14,755 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Through Hole |
|
|
4N25TRANSISTOR OUTPUT OPTOCOUPLER |
14,188 | 0.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
TIL195BAC IN-DARLINGTON OUT OPTOCOUPLER |
11,675 | 0.68 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MCT5201SR2MTRANSISTOR OUTPUT OPTOCOUPLER |
2,142 | 0.70 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 7500Vpk | 120% @ 5mA | - | - | 2.5µs, 16µs | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
PS2561L1-1-AOPTOISOLATOR 5KV TRANS 4DIP |
10,813 | 0.71 |
RFQ |
Datasheet |
Tube | NEPOC | Not For New Designs | 1 | 5000Vrms | 80% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
TIL195AAC IN-DARLINGTON OUT OPTOCOUPLER |
14,038 | 0.72 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
