| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VO1263AACOPTOISO 5.3KV 2CH PHVOLT 8SMD |
6,319 | 5.11 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | - | - | 16µs, 472µs | - | DC | Photovoltaic | 16.5V | 3µA | 1.3V | 50 mA | - | -40°C ~ 100°C | Surface Mount |
|
ACNT-H50L-000EOPTOISO 7.5KV TRANSISTOR 8SO |
8,148 | 6.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 7500Vrms | 31% @ 12mA | 80% @ 12mA | 800ns, 1µs | - | DC | Transistor | 24V | 8mA | 1.45V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|

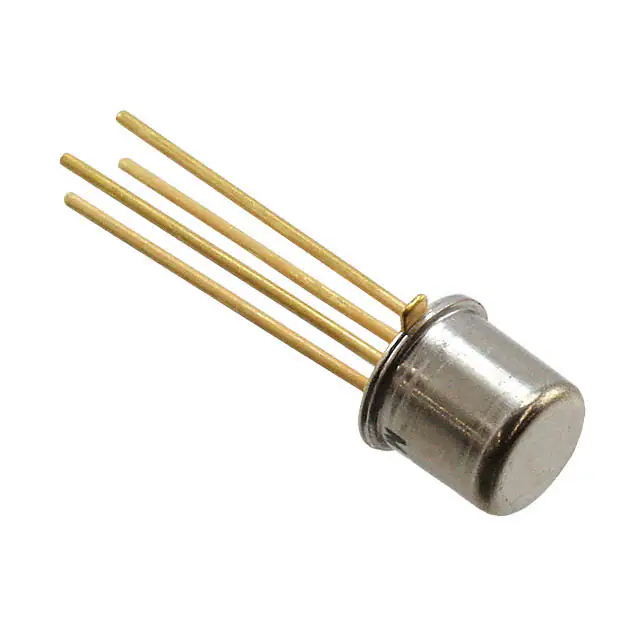

3N262OPTOISOLATOR 1KV TRANS TO72-4 |
1,224 | 19.89 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 10% @ 1mA | 50% @ 1mA | - | 20µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
JANTX4N49OPTOISO 1KV TRANS W/BASE TO78-6 |
4,598 | 25.18 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 200% @ 1mA | 1000% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
8398940000OPTOISOLATOR TRANS MODULE |
2,315 | 52.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | - | - | - | 27µs, 210µs | - | DC | Transistor | 48V | 100mA | - | - | - | -25°C ~ 50°C | DIN Rail |
|
8324610000OPTOISOLATOR TRANS MODULE |
4,784 | 58.87 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | - | - | - | - | - | DC | Transistor | 5.25V | 8mA | - | - | - | -25°C ~ 40°C | DIN Rail |
|

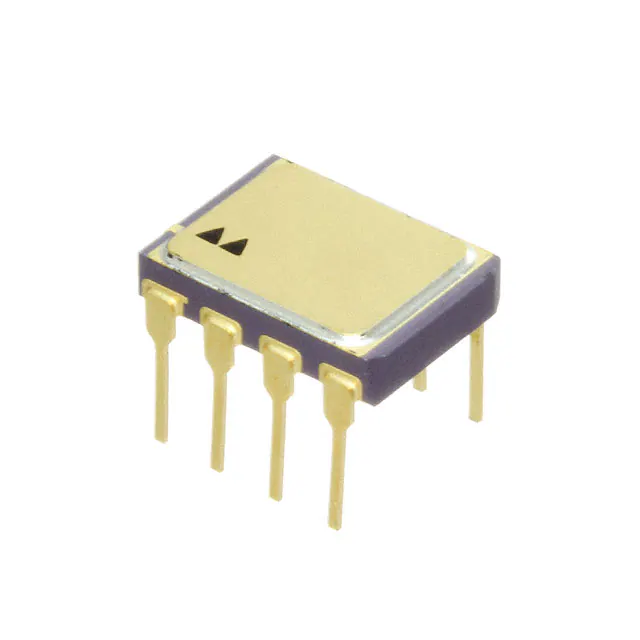

ACPL-5700LOPTOISO 1.5KV DARLINGTON 8-DIP |
3,973 | 98.38 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Through Hole |
|
HCPL-6551OPTOISO 1.5KV TRANS W/BASE 16DFF |
995 | 166.46 |
RFQ |
Datasheet |
Bulk | - | Active | 4 | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | DC | Transistor with Base | 20V | 8mA | 1.55V | 20 mA | - | -55°C ~ 125°C | Surface Mount |
|
VO617A-2X017TOPTOISOLATOR 5.3KV TRANS 4-SMD |
12,911 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 63% @ 5mA | 125% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VO615A-4X017TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
12,885 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
VO615A-5X007TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
10,694 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 50% @ 5mA | 150% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
VO615A-3X007TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
14,814 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
VO615A-4X009TOPTOISOLATR 5KV TRANSISTOR 4-SMD |
11,988 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
IS181GBOPTOISO 3.75KV TRANS MINI-FLAT |
10,499 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
|
IS181GROPTOISO 3.75KV TRANS MINI-FLAT |
11,531 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.4V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
|
IS2701-1OPTOISO 3.75KV TRANS MINI-FLAT |
11,158 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
ISP281GROPTOCOUPLER |
11,196 | 0.57 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.4V (Max) | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount | |
|
VOM617A-2TOPTOISOLATOR 3.75KV TRANS 4-SOP |
12,509 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 63% @ 5mA | 125% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM618A-2TOPTOISOLATOR 3.75KV TRANS 4-SOP |
13,955 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 63% @ 1mA | 125% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM618A-4TOPTOISOLATOR 3.75KV TRANS 4-SOP |
12,250 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 160% @ 1mA | 320% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
