| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4N33SMOPTOISO 4.17KV DARL W/BASE 6SMD |
14,152 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 500% @ 10mA | - | 5µs, 100µs (Max) | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1V | -40°C ~ 100°C | Surface Mount |
|
SFH6156-2X001OPTOISOLATOR 5.3KV TRANS 4SMD |
11,371 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
SFH615A-3X006OPTOISOLATOR 5.3KV TRANS 4DIP |
14,401 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH615A-3X007OPTOISOLATOR 5.3KV TRANS 4SMD |
12,892 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH615A-4X009OPTOISOLATOR 5.3KV TRANS 4SMD |
11,259 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
H11AA4XOPTOISO 5.3KV TRANS W/BASE 6DIP |
12,618 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
SFH6106-2OPTOISOLATOR 5.3KV TRANS 4SMD |
14,316 | 0.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6186-4OPTOISOLATOR 5.3KV TRANS 4SMD |
13,723 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 1mA | 320% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

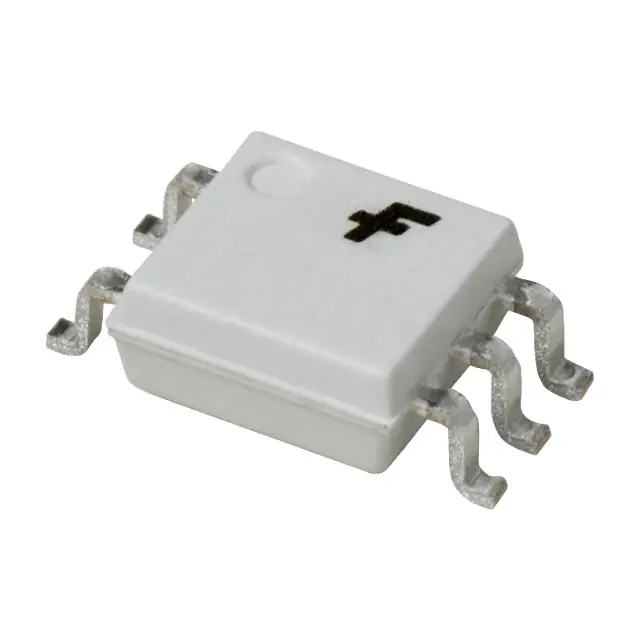

FODM453R2OPTOISO 3.75KV TRANSISTOR 5MFP |
6,606 | 2.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | 400ns, 350ns | - | DC | Transistor | 20V | 8mA | 1.6V | 25 mA | - | -40°C ~ 85°C | Surface Mount |
|
SFH617A-4OPTOISOLATOR 5.3KV TRANS 4DIP |
10,670 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
HCPL4503SDMOPTOISO 5KV TRANS W/BASE 8SMD |
6,798 | 2.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -40°C ~ 100°C | Surface Mount |
|
TIL113SMOPTOISO 4.17KV DARL W/BASE 6SMD |
12,180 | 0.97 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 4170Vrms | 300% @ 10mA | - | 5µs, 100µs (Max) | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1.25V | -40°C ~ 100°C | Surface Mount |
|
|
SFH6106-3X001OPTOISOLATOR 5.3KV TRANS 4SMD |
13,890 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
ILD620-X009TOPTOISO 5.3KV 2CH TRANS 8SMD |
9,173 | 2.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 20µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
HCPL-0453-560EOPTOISOLATOR 3.75KV TRANS 8-SO |
5,469 | 2.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH6186-5OPTOISOLATOR 5.3KV TRANS 4SMD |
9,828 | 1.01 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 250% @ 1mA | 500% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6325-X009TOPTOISOLATR 5.3KV 2CH TRANS 8SMD |
7,732 | 2.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 7% @ 16mA | - | 300ns, 600ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH6325-X017TOPTOISOLATR 5.3KV 2CH TRANS 8SMD |
9,176 | 2.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 7% @ 16mA | - | 300ns, 600ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH618A-5OPTOISOLATOR 5.3KV TRANS 4-DIP |
7,684 | 1.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 250% @ 1mA | 500% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH617A-4X016OPTOISOLATOR 5.3KV TRANS 4DIP |
5,895 | 1.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
