| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QT1013T1-WLONG CREEPAGE MINI-FLAT PACKAGE |
11,432 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 4.8µs, 4.2µs | 2.8µs, 4µs | DC | Transistor | 80V | 50mA | 1.42V | 50 mA | 400mV | -55°C ~ 125°C | Surface Mount |
|
FOD814SDOPTOISOLATOR 5KV TRANSISTOR 4SMD |
11,336 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 105°C | Surface Mount |
|
SFH6156-1TOPTOISOLATOR 5.3KV TRANS 4-SMD |
12,385 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6156-4TOPTOISOLATOR 5.3KV TRANS 4-SMD |
12,917 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
CNY17F-2X017TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
12,431 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17-2X017TOPTOISO 5KV TRANS W/BASE 6SMD |
13,406 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
SFH615AGR-X007TOPTOISOLATOR 5.3KV TRANS 4SMD |
14,737 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 5mA | 300% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
H11B1SR2MOPTOISO 4.17KV DARL W/BASE 6SMD |
13,466 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 500% @ 1mA | - | 25µs, 18µs | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1V | -40°C ~ 100°C | Surface Mount |
|
HMHAA280R2OPTOISO 3.75KV TRANS 4-MINI-FLAT |
9,716 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.4V (Max) | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6156-3X001TOPTOISOLATOR 5.3KV TRANS 4SMD |
13,118 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6156-1X001TOPTOISOLATOR 5.3KV TRANS 4SMD |
10,195 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH615A-3X009TOPTOISOLATOR 5.3KV TRANS 4SMD |
11,622 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH615A-3X007TOPTOISOLATOR 5.3KV TRANS 4SMD |
12,526 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

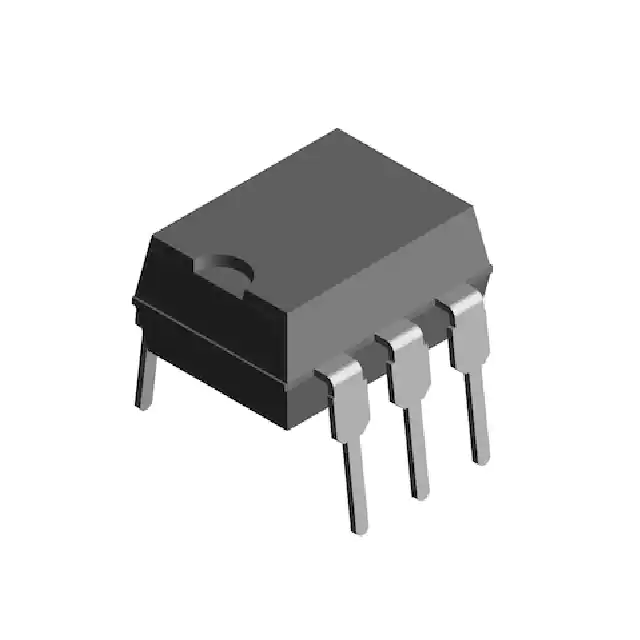

H11A1-X009TOPTOISO 5.3KV TRANS W/BASE 6SMD |
12,765 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 50% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 70V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
IL213ATOPTOISO 4KV TRANS W/BASE 8SOIC |
8,488 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 100% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 30V | - | 1.3V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
IL1207ATOPTOISO 4KV TRANS W/BASE 8SOIC |
8,295 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 3µs | - | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
SFH615A-4X017TOPTOISOLATOR 5.3KV TRANS 4SMD |
6,010 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH615A-2X019TOPTOISOLATOR 5.3KV TRANS 4SMD |
5,165 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH617A-3X007TOPTOISOLATOR 5.3KV TRANS 4SMD |
7,795 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
SFH617A-2X009TOPTOISOLATOR 5.3KV TRANS 4SMD |
8,483 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
