| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-5630OPTOISO 1.5KV 2CH OPEN COLL 8DIP |
1,783 | 91.13 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
HCPL-5630#100OPTOISO 1.5KV 2CH OPEN COLL 8SMD |
3,904 | 91.53 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount, Butt Joint |
|
|
HCPL-5630#200OPTOISO 1.5KV 2CH OPEN COLL 8DIP |
1,171 | 91.53 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
|
6N134#100OPTOISO 1.5KV 2CH OPEN COL 16SMD |
1,145 | 92.02 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.55V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
6N134#200OPTOISO 1.5KV 2CH OPEN COL 16DIP |
1,213 | 92.02 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.55V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
|
HCPL-5200#100OPTOISO 1.5KV TRI-STATE 8SMD |
1,630 | 92.35 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Tri-State | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | -55°C ~ 125°C | Surface Mount |
|
|
HCPL-5200#200OPTOISO 1.5KV TRI-STATE 8DIP |
3,511 | 92.57 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Tri-State | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | -55°C ~ 125°C | Through Hole |
|
|
ACPL-5601LOPTOISO 1.5KV OPN COLLECTOR 8DIP |
3,666 | 92.67 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Through Hole |
|
|
5962-0824201HPCOPTOISO 1.5KV OPN COLLECTOR 8DIP |
2,796 | 92.67 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Through Hole |
|

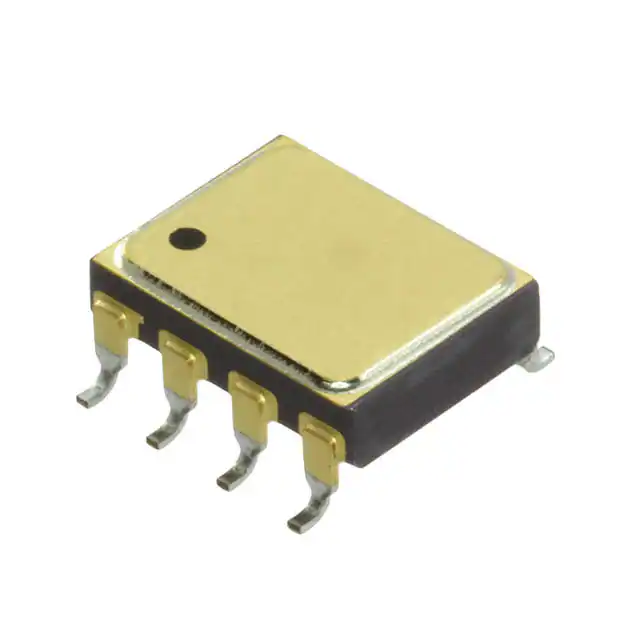

HCPL-5630#300OPTOISO 1.5KV OPEN COLL 8DIP GW |
1,983 | 92.75 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
ACPL-5601L-100OPTOISO 1.5KV OPEN COLL 8SMD |
4,526 | 93.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Surface Mount |
|
|
ACPL-5601L-200OPTOISO 1.5KV OPN COLLECTOR 8DIP |
3,683 | 93.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Through Hole |
|
|
5962-0824201HPAOPTOISO 1.5KV OPN COLLECTOR 8DIP |
3,839 | 93.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Through Hole |
|
|
5962-0824201HYCOPTOISO 1.5KV OPEN COLL 8SMD |
3,144 | 93.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Surface Mount |
|
6N134#300OPTOISO 1.5KV OPEN COLL 16DIP GW |
3,205 | 93.24 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.55V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
5962-0824201HYAOPTOISO 1.5KV OPEN COLL 8SMD |
1,594 | 93.49 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Surface Mount |
|
|
HCPL-5200#300OPTOISO 1.5KV TRI-STATE 8SMD GW |
1,355 | 93.57 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Tri-State | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | -55°C ~ 125°C | Surface Mount |
|
ACPL-2670LOPTOISO 1.5KV 2CH OPEN COL 16DIP |
4,992 | 94.30 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Through Hole |
|
|
ACPL-5601L-300OPTOISO 1.5KV OPEN COLL 8DIP GW |
3,898 | 94.30 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Surface Mount |
|
5962-0824201HXAOPTOISO 1.5KV OPEN COLL 8DIP GW |
3,512 | 94.30 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | -55°C ~ 125°C | Surface Mount |
