| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

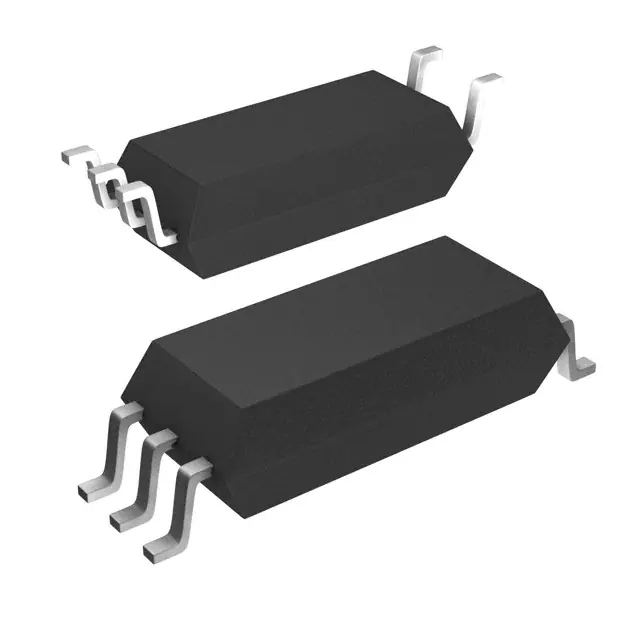

ACPL-P484-560EOPTOISO 3.75KV PUSH PULL 6SO |
8,215 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 150ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W483-560EOPTOISO 5KV PUSH PULL 6SO |
9,665 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W484-560EOPTOISO 5KV PUSH PULL 6SO |
8,680 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 150ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
ELW2611S(TA)-VOPTOISO 5KV OPEN COLLECTOR 8SMD |
9,406 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 50mA | 7V | -40°C ~ 85°C | Surface Mount |
|
HCPL-2212-560EOPTOISO 3.75KV PUSH PULL 8DIP GW |
5,989 | 1.90 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2212-360EOPTOISO 3.75KV PUSH PULL 8DIP GW |
6,728 | 1.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2211-360EOPTOISO 3.75KV PUSH PULL 8DIP GW |
5,673 | 1.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2211-560EOPTOISO 3.75KV PUSH PULL 8DIP GW |
8,181 | 1.90 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
.jpg)
|
FOD8160R2OPTOISO 5KV OPEN COLLECTOR 5SOP |
8,888 | 1.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/1 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 22ns, 9ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
PS9317L-E3-AXHI-SPD OPTOCPLR 6PIN SDIP |
9,898 | 1.94 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
HCPL-0611OPTOISO 3.75KV OPN COLLECTOR 8SO |
7,825 | 1.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2630-520EOPTOISO 5KV 2CH OPEN COL 8DIP GW |
9,431 | 1.95 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
PS9317L-V-E3-AXHI-SPD OPTOCPLR 6PIN SDIP |
8,681 | 1.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
PS9317L2-V-E3-AXHI-SPD OPTOCPLR 6PIN SDIP |
5,113 | 1.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0611#500OPTOISO 3.75KV OPN COLLECTOR 8SO |
9,523 | 1.98 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0611#060OPTOISO 3.75KV OPN COLLECTOR 8SO |
7,275 | 1.98 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCNW2201-500EOPTOISO 5KV PUSH PULL 8DIP GW |
7,808 | 1.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
PS9151-F3-AXOPTOISO 3.75KV PUSH PULL 5SO |
7,217 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.65V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
PS9817A-1-V-F3-AXHI-SPEED OPTOCPLR SO-8 |
7,658 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 1 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
PS9303L-V-E3-AXHI-SPD OPTOCPLR 6PIN SDIP |
6,642 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 1Mbps | 500ns, 550ns | 120ns, 90ns | 1.6V | 20mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
.jpg)
