| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-061L-560EOPTOISO 3.75KV TRI-STATE 8SO |
9,576 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
FOD8163VSSO6 3.3V 10MB VDE |
8,770 | 3.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 20ns, 10ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|

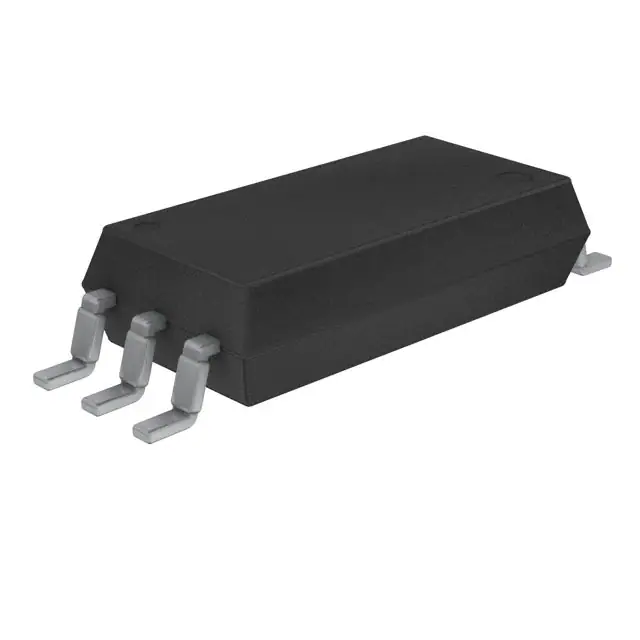

TLP2770(EOPTOISO 5KV TRI-STATE S06L |
5,122 | 2.24 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLP2770(D4,EOPTOISO 5KV TRI-STATE S06L |
9,298 | 1.15 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
PS9117A-V-F3-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
6,127 | 1.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
FOD260LSVOPTOISO 5KV OPEN COLLECTOR 8SMT |
7,742 | 1.16 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | 50mA | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
SFH6747TOPTOISO 3KV OPEN DRAIN 8SOIC |
5,328 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3000Vrms | 10kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-4506-320EOPTOISO 5KV OPEN COLL 8DIP GW |
8,415 | 1.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-4506-360EOPTOISO 3.75KV OPEN COLL 8DIP GW |
6,093 | 1.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
TLP250H(D4,F)X36 PB-F DRIVER COUPLER DIP 8 TH |
5,220 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Through Hole |
|
TLP250H(D4-LF1,F)X36 PB-F DRIVER COUPLER DIP8 GUL |
7,820 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP250H(F)X36 PB-F DRIVER COUPLER DIP 8 TH |
8,443 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Through Hole |
|
|
TLP250H(LF1,F)X36 PB-F DRIVER COUPLER 8 GULL W |
8,753 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-0611-060EOPTOISO 3.75KV OPN COLLECTOR 8SO |
8,439 | 1.19 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
FOD260LSOPTOISO 5KV OPEN COLLECTOR 8SMD |
5,936 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | 50mA | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCNW137-300EOPTOISO 5KV OPEN COLLECTOR 8SO |
9,363 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
TLP2261(D4-TP4,EHIGH SPEED LOGIC OUTPUT OPTOCOUP |
9,006 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2261(TP4,EHIGH SPEED LOGIC OUTPUT OPTOCOUP |
6,941 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
FOD8163R2OPTOISO 5KV OPEN COLLECTOR 6SOP |
7,689 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 20ns, 10ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
FOD8163TR2OPTOISO 5KV OPEN COLLECTOR 6SOP |
7,624 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 20ns, 10ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
